Diagnosis System (Driver Seat Control Unit)
DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)Diagnosis DescriptionThe auto drive positioner system can be checked and diagnosed for component operation with CONSULT-III.
DIAGNOSTIC MODECONSULT-III FunctionSELF-DIAGNOSIS RESULTSRefer to ADP-140, "DTC Index".

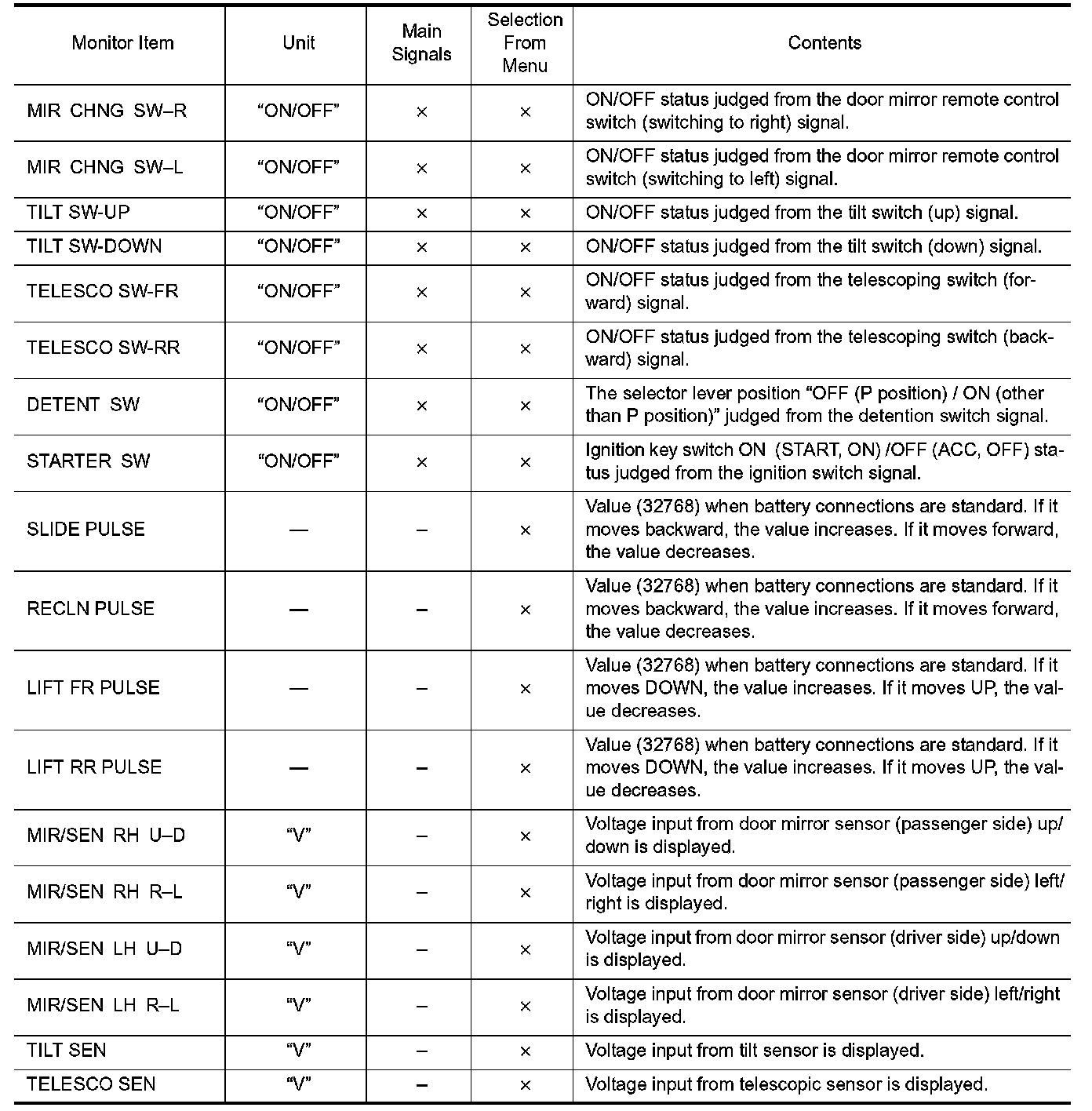

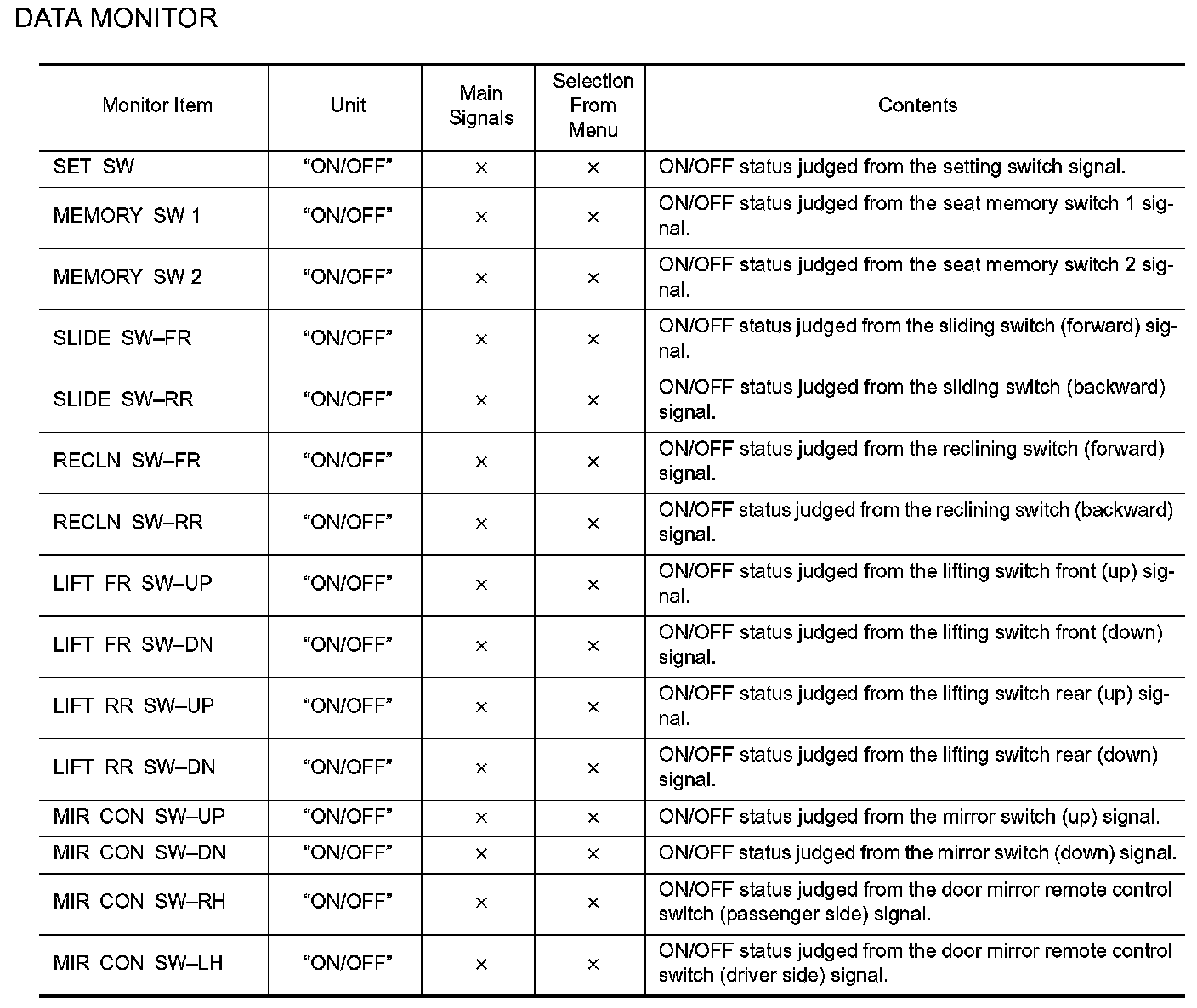

Driver Seat Control UnitDATA MONITORACTIVE TESTWORK SUPPORT
