ICC Brake Switch

ICC BRAKE SWITCH

Description
When the brake pedal is depressed, ICC brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal).

Refer to CCS-17, "System Description" Intelligent Cruise Control System for the ICC function.

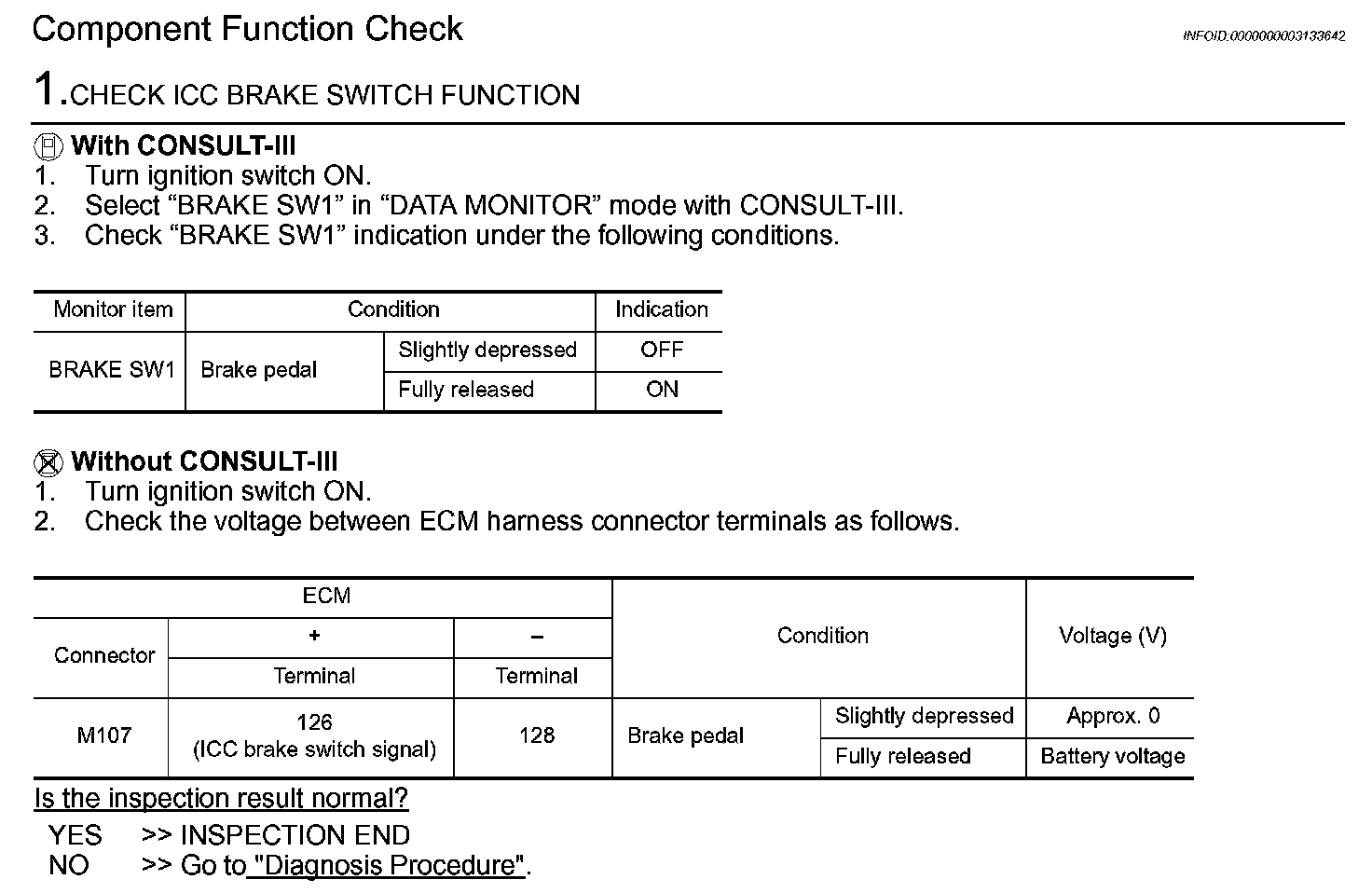

Component Function Check

Step 1:

Diagnosis Procedure

Step 1-2:

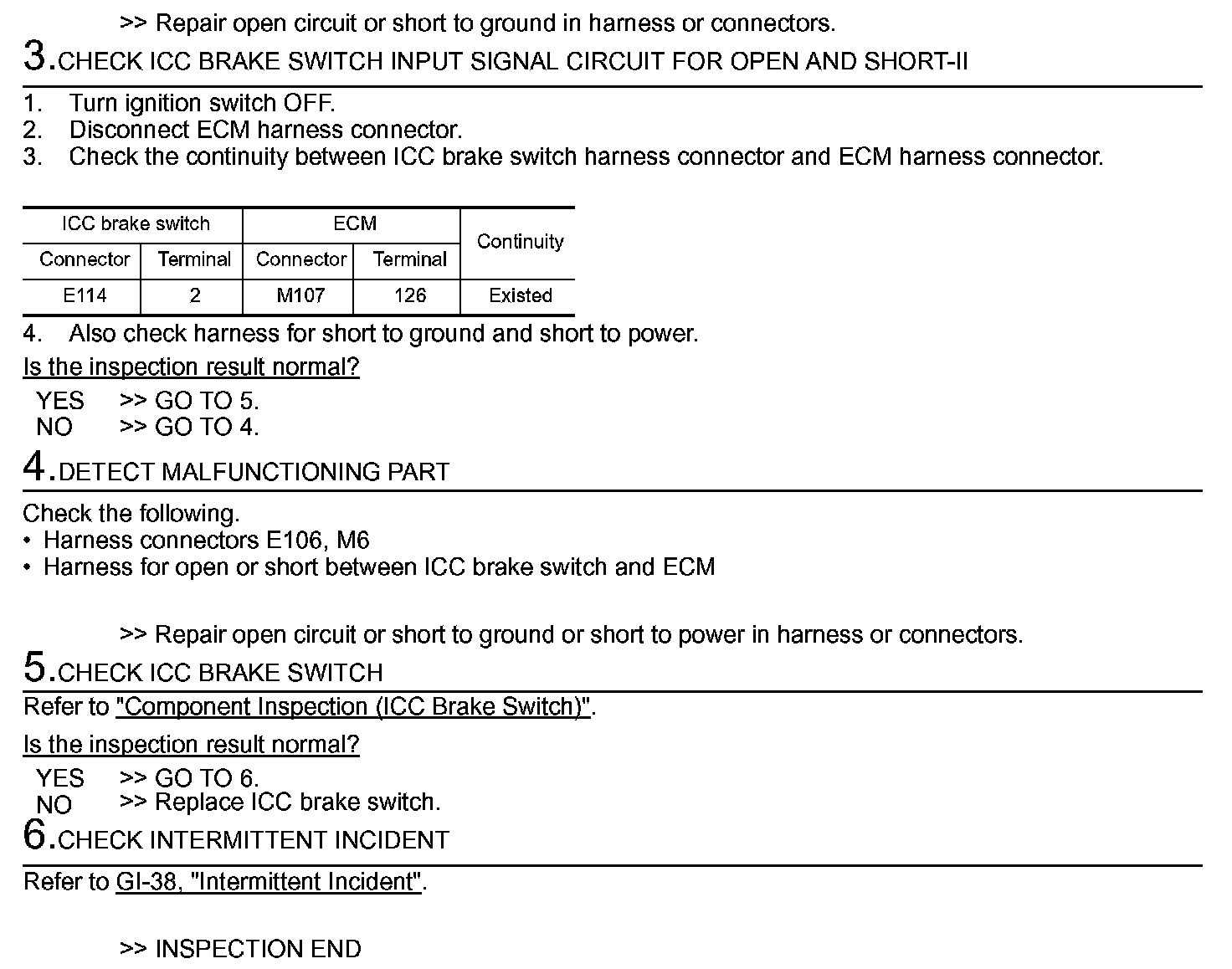

Step 2 (Continued)-6:

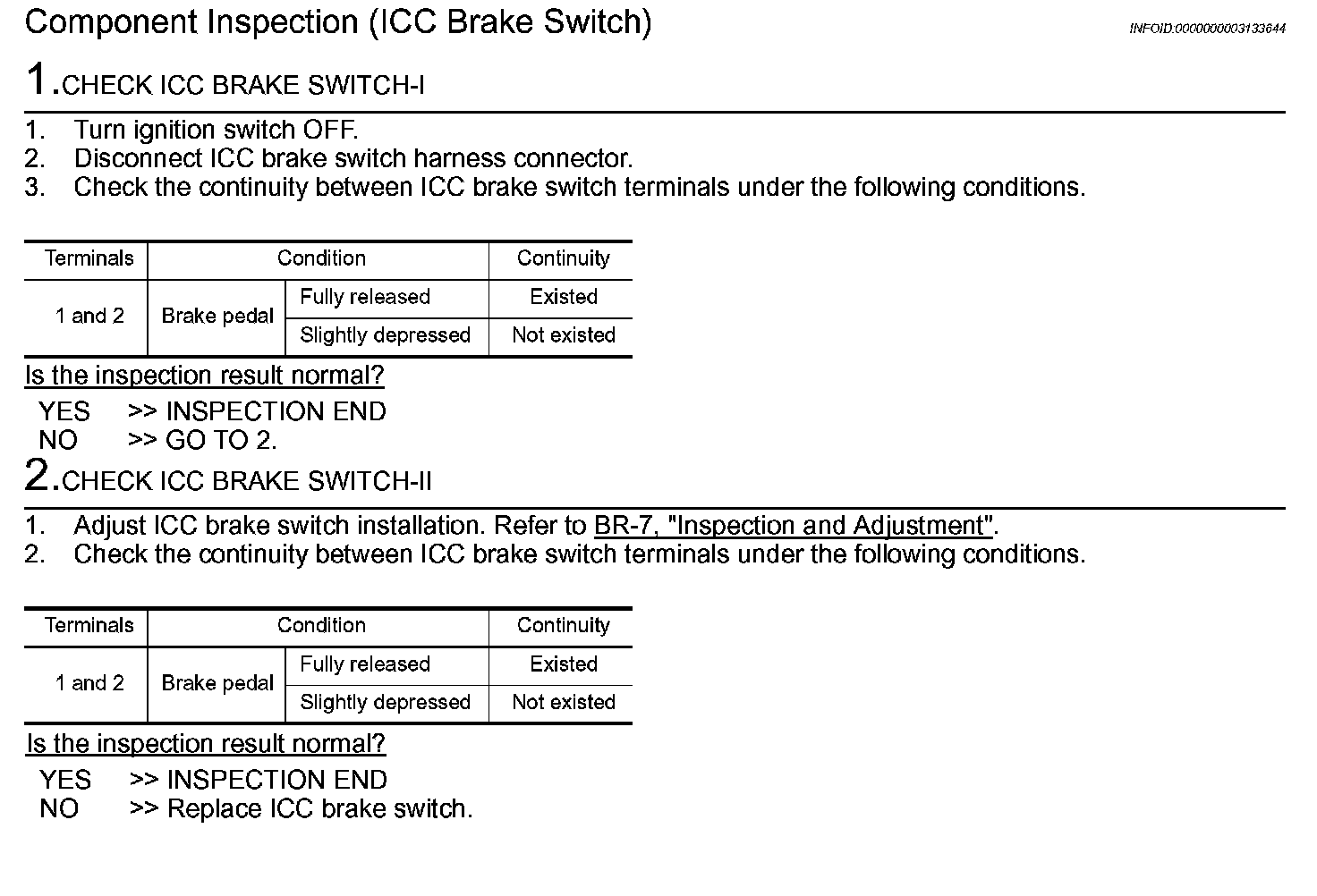

Component Inspection (ICC Brake Switch)
