Refrigerant Pressure Sensor / Switch: Service and Repair

REFRIGERANT PRESSURE SENSOR

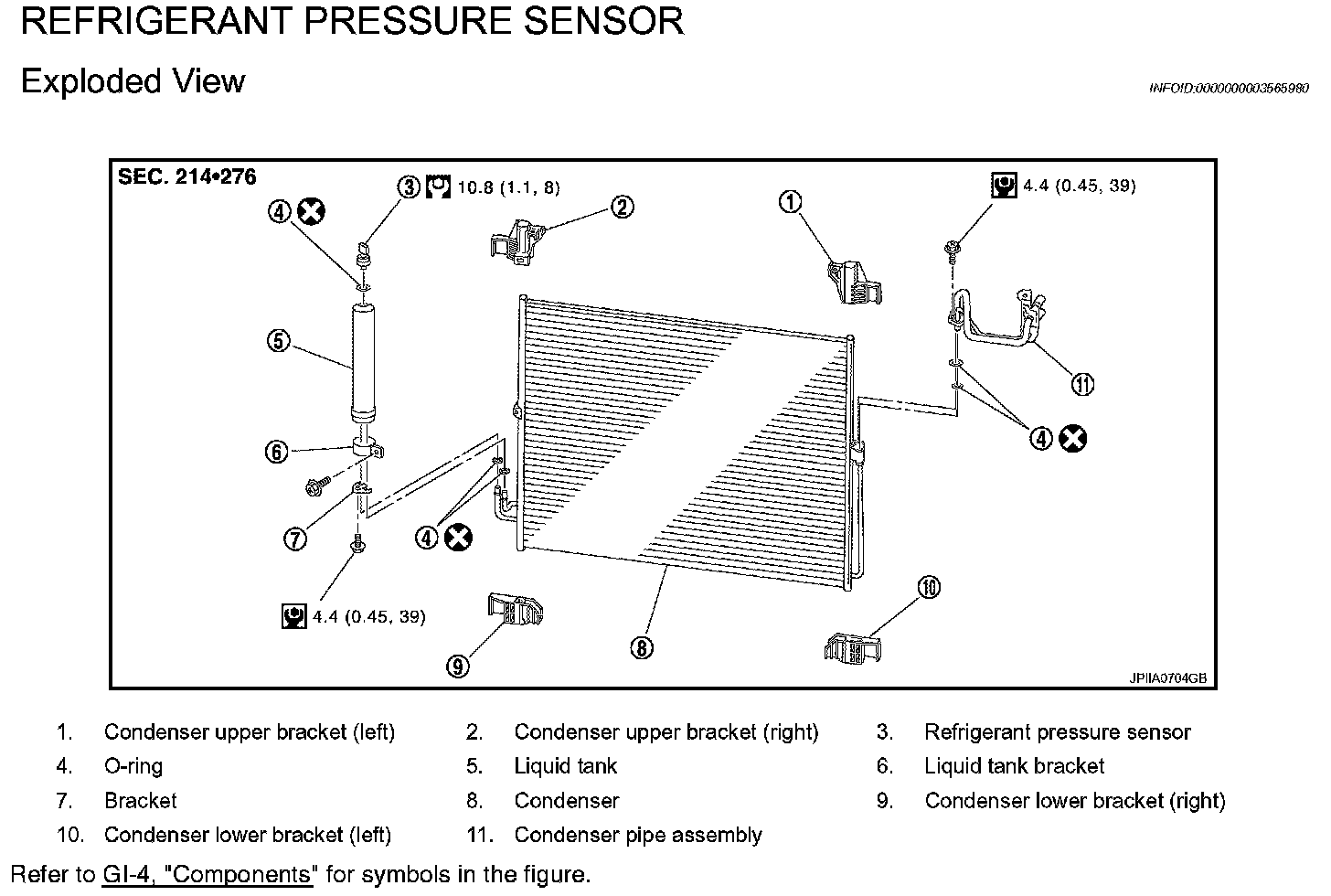

Exploded View

HA-58 Exploded View:






Removal and Installation

REMOVAL
1. Remove liquid tank.




2. Fix the liquid tank (1) with a vise (A). Remove the refrigerant pressure sensor (2) with a wrench (B).

CAUTION: Be careful not to damage liquid tank.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION:
- Apply compressor oil to O-ring of refrigerant pressure sensor when installing.
- Check for leakages when recharging refrigerant.
