Push-Button Ignition Switch Position Indicator

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR

Description
The switch that changes the power supply position.
BCM maintains the power supply position status.
BCM changes the power supply position with the operation of the push-button ignition switch.

Component Function Check

Step 1:






Diagnosis Procedure

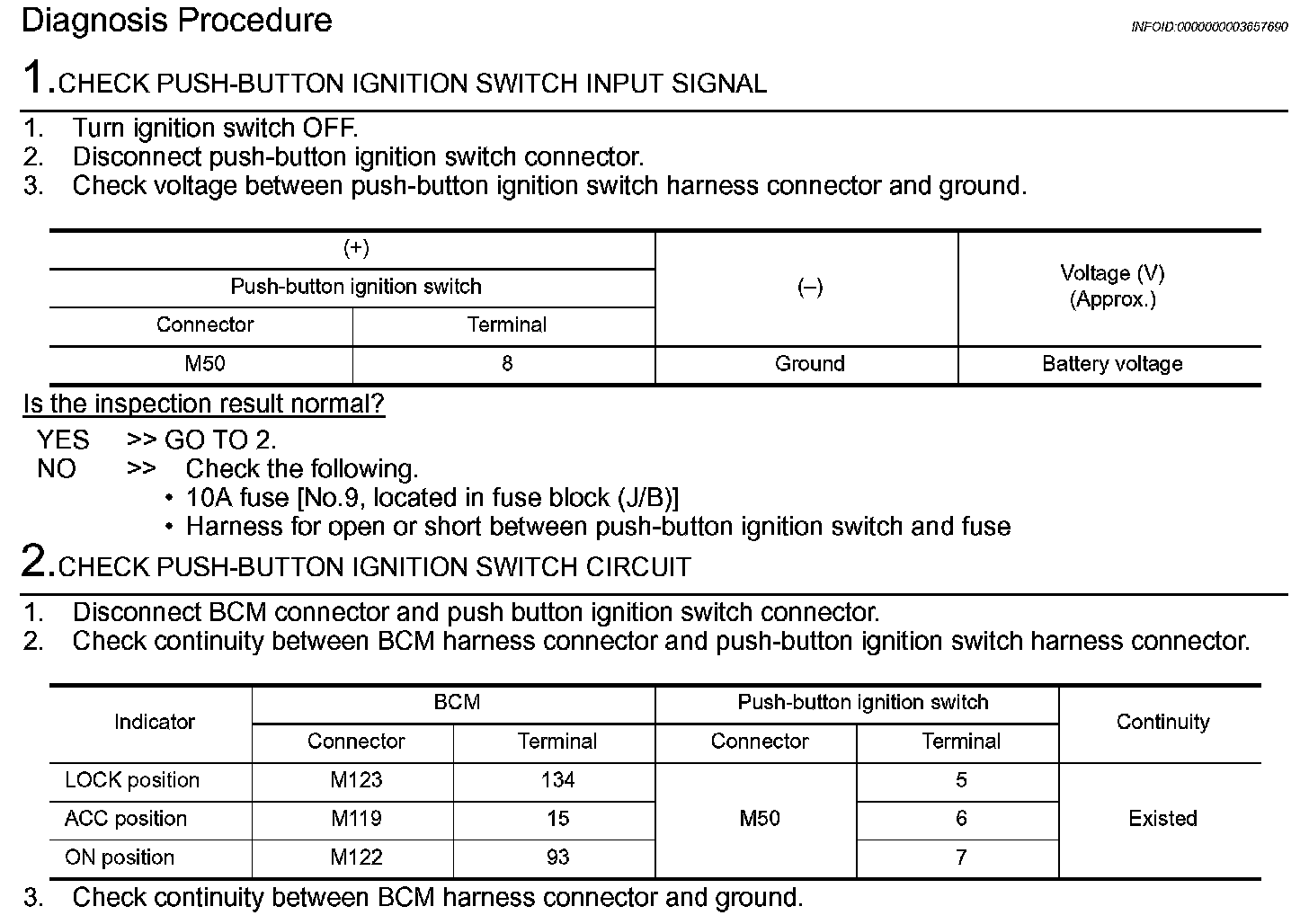

Step 1-2:




Step 2 (Continued)-4:






Component Inspection

Step 1:
