Upper

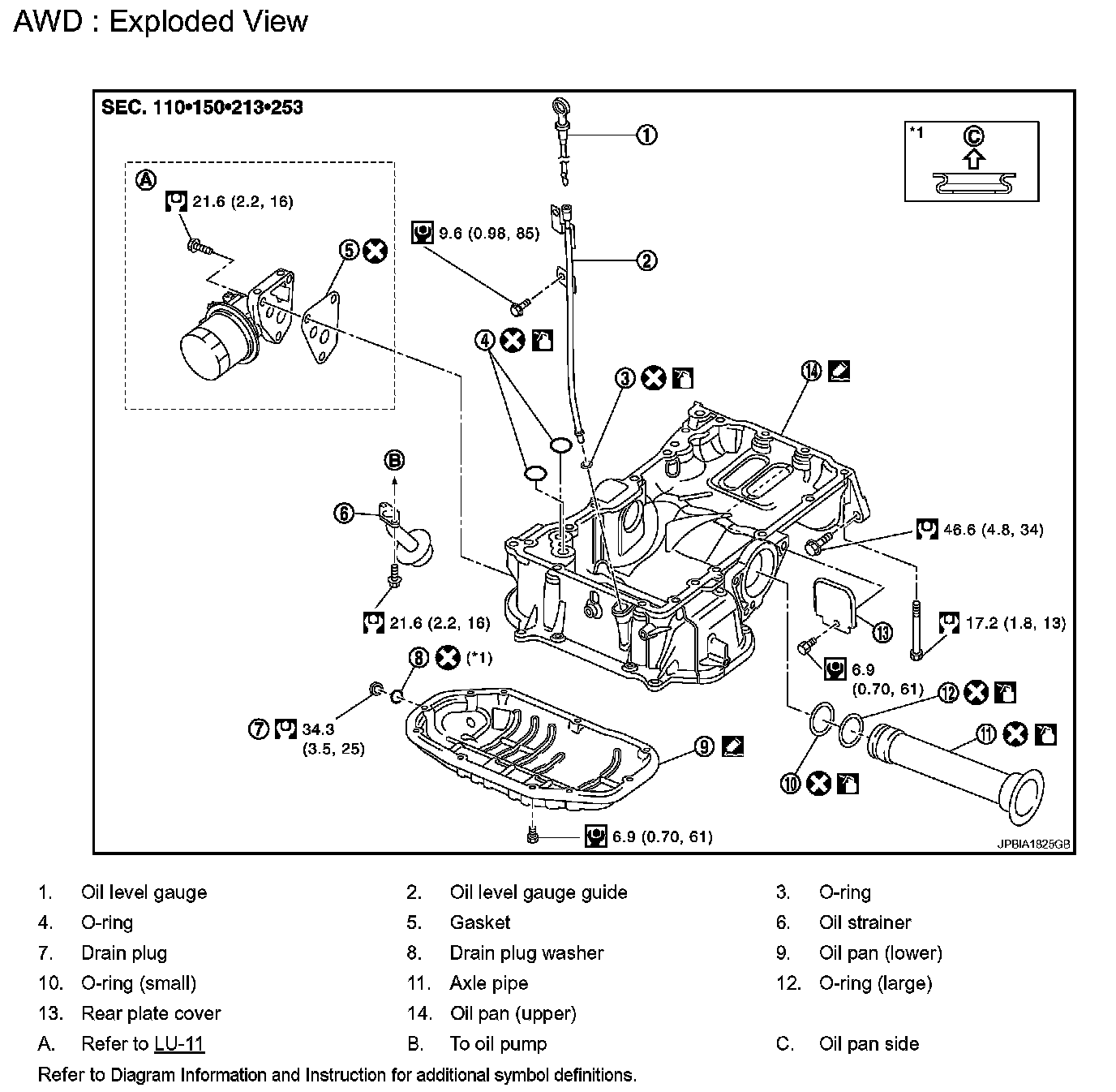

EM-100 Exploded View:
Oil Pan Install
oil pan (upper).
CAUTION:
Install avoiding misalignment of O-rings.
Tighten mounting bolts in numerical order as shown in the figure.
<---: Engine front
There are three types of mounting bolts. Refer to the following for locating bolts.
M8 x 25 mm (0.98 in)
3, 6, 8, 9, 11, 12, 14, 15, 16
M8 x 50 mm (1.97 in)
2
M8 x 90 mm (3.54 in)
1, 4, 5, 7, 10, 13
