Intake Manifold

Intake Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
Torque 10.8 Nm (1.1 kg-m, 8 ft-lb)

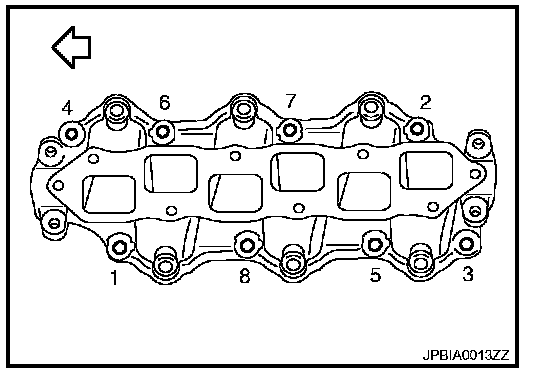

Tighten all mounting bolts and nuts to the specified torque in two or more steps in numerical order as shown in the figure.
<---: Engine front

CAUTION:
Install intake manifold with the marks (put on the intake manifold and the cylinder head before removal) aligned.

1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)
