Door and Lock

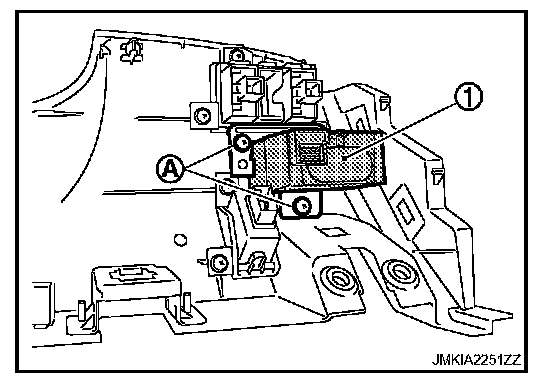

KEY SLOTRemoval and InstallationREMOVAL 1.
Remove the instrument lower panel LH (2).
2.
Disconnect key slot connector.
3.
Remove the key slot mounting screw (A), and then remove key slot (1).
INSTALLATIONInstall in the reverse order of removal.
