Starter Motor: Service and Repair

ON-VEHICLE REPAIR

STARTER MOTOR

Exploded View

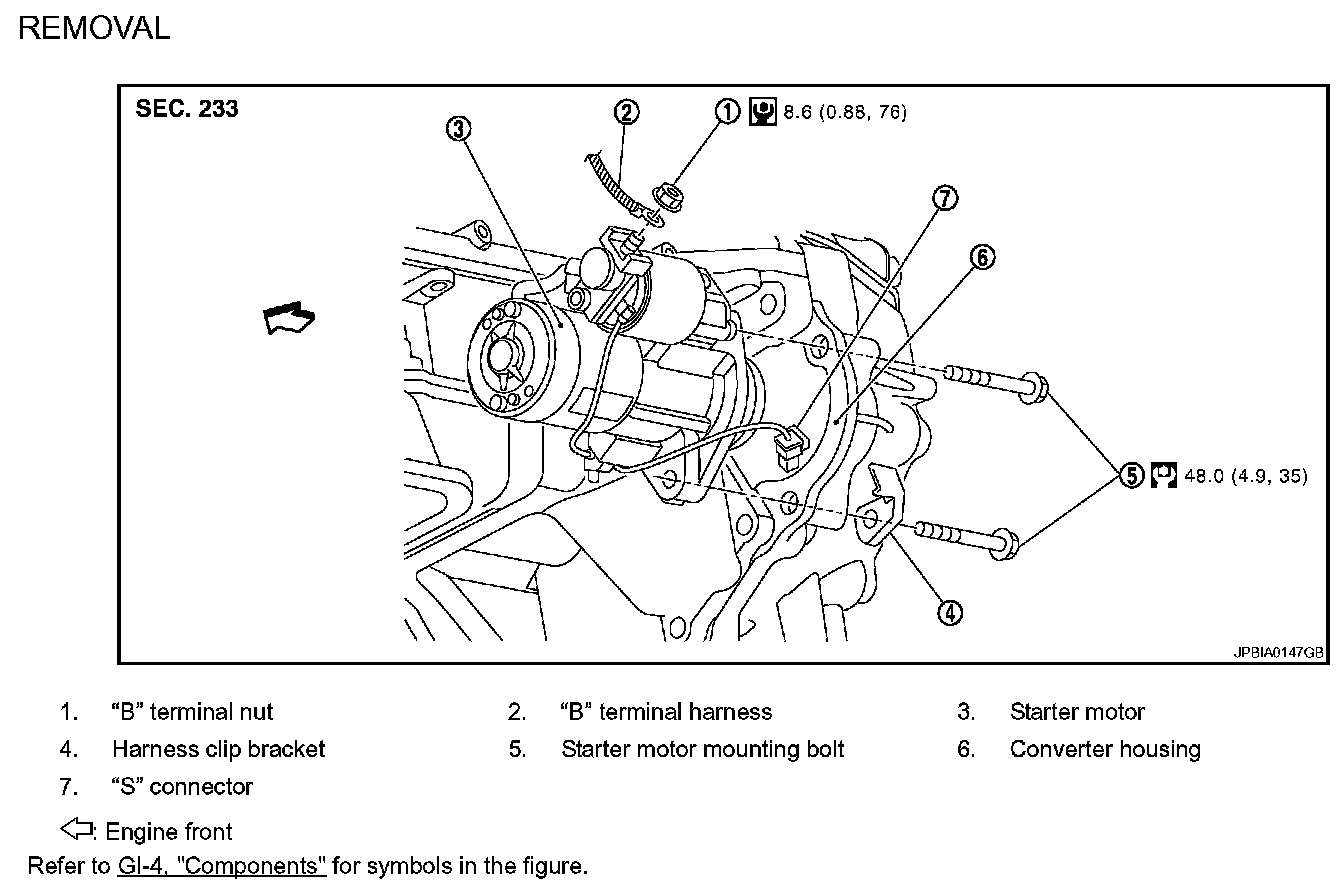

REMOVAL

STR-15 Exploded View:

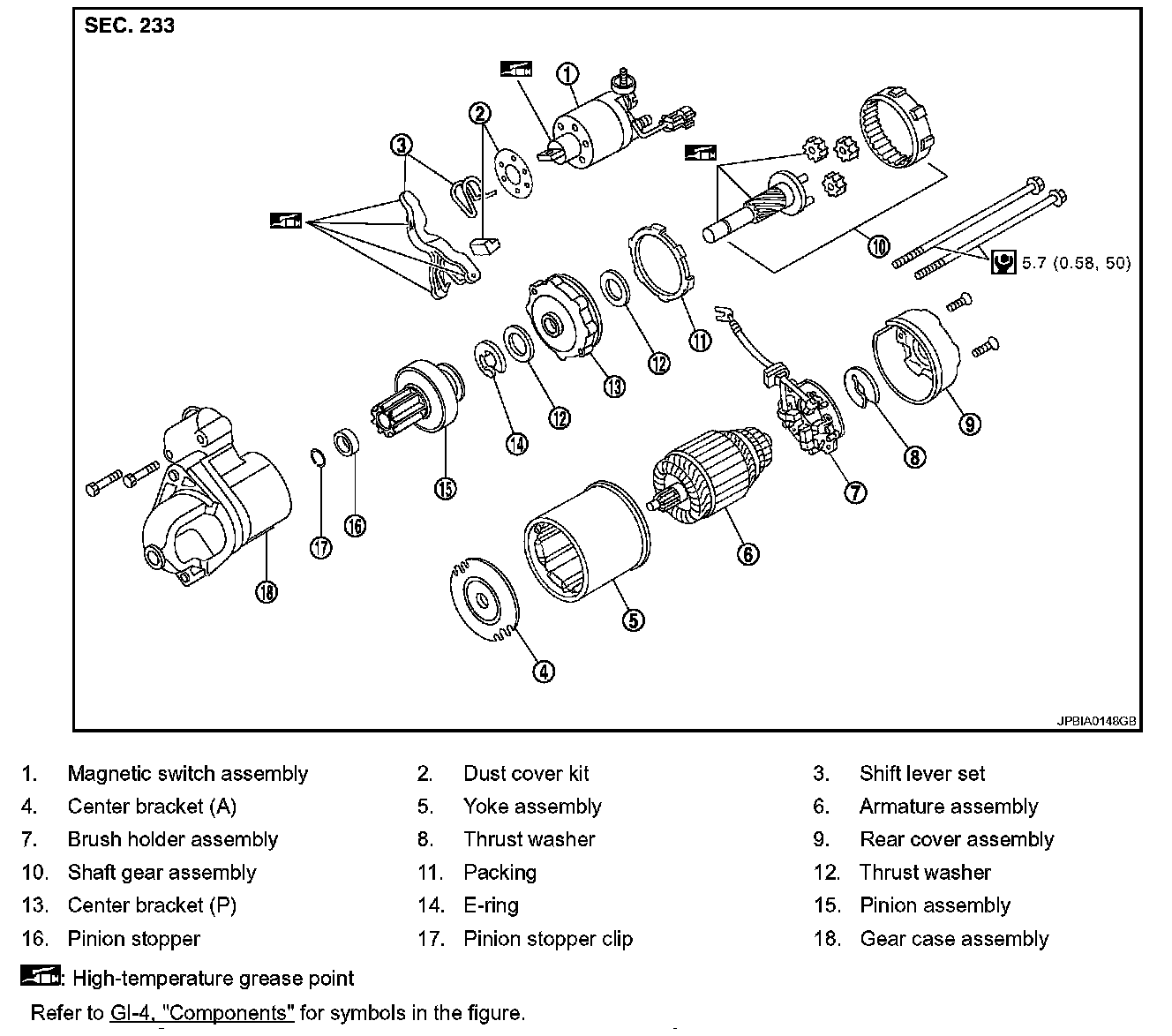

DISASSEMBLY
Type: S114-927

STR-16 Exploded View:

Removal and Installation

REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove engine undercover, using power tools.
3. Remove exhaust mounting bracket. Refer to "2WD: Exploded View".




4. Disconnect steering lower joint (1), then remove it. Refer to "Exploded view".
5. Remove "B" terminal nut (A).




6. Disconnect "S" connector (B).
7. Remove starter motor mounting bolts (A), using power tools.




8. Remove starter motor (1) downward from the vehicle.

INSTALLATION
Install in the reverse order of removal.

CAUTION: Be sure to tighten "B" terminal nut carefully.
