CONSULT-III/GST Data Link Connector (DLC) Circuit

CONSULT-III/GST Data Link Connector (DLC) Circuit

INSPECTION PROCEDURE






NOTE: The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A short in a DDL circuit connected to a control unit in one system may affect CONSULT-III access to other systems.

If the GST cannot operate properly, check the circuit based on the information of SAE J1962 and ISO 15031- 3.

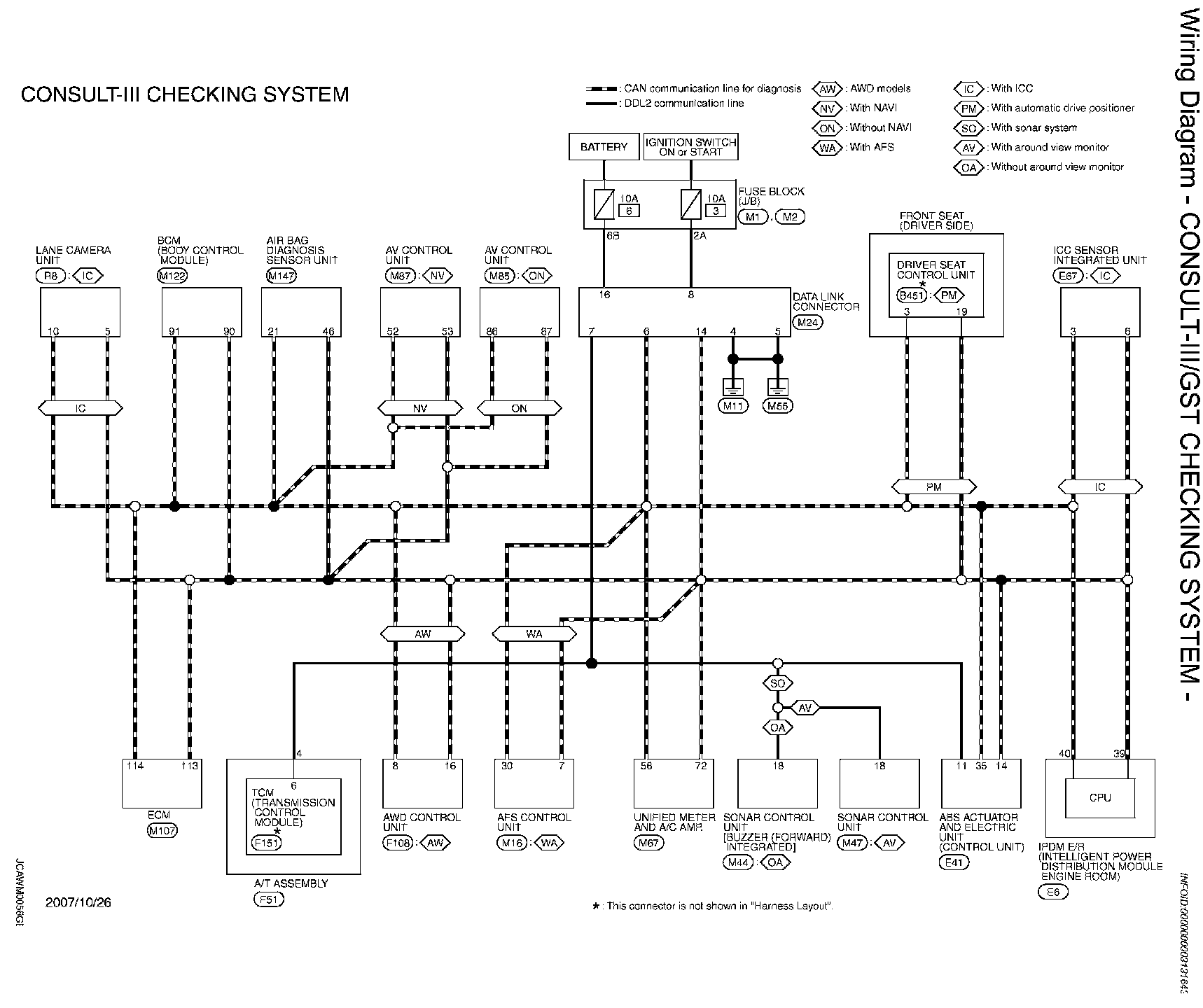

Wiring Diagram - CONSULT-III/GST CHECKING SYSTEM -

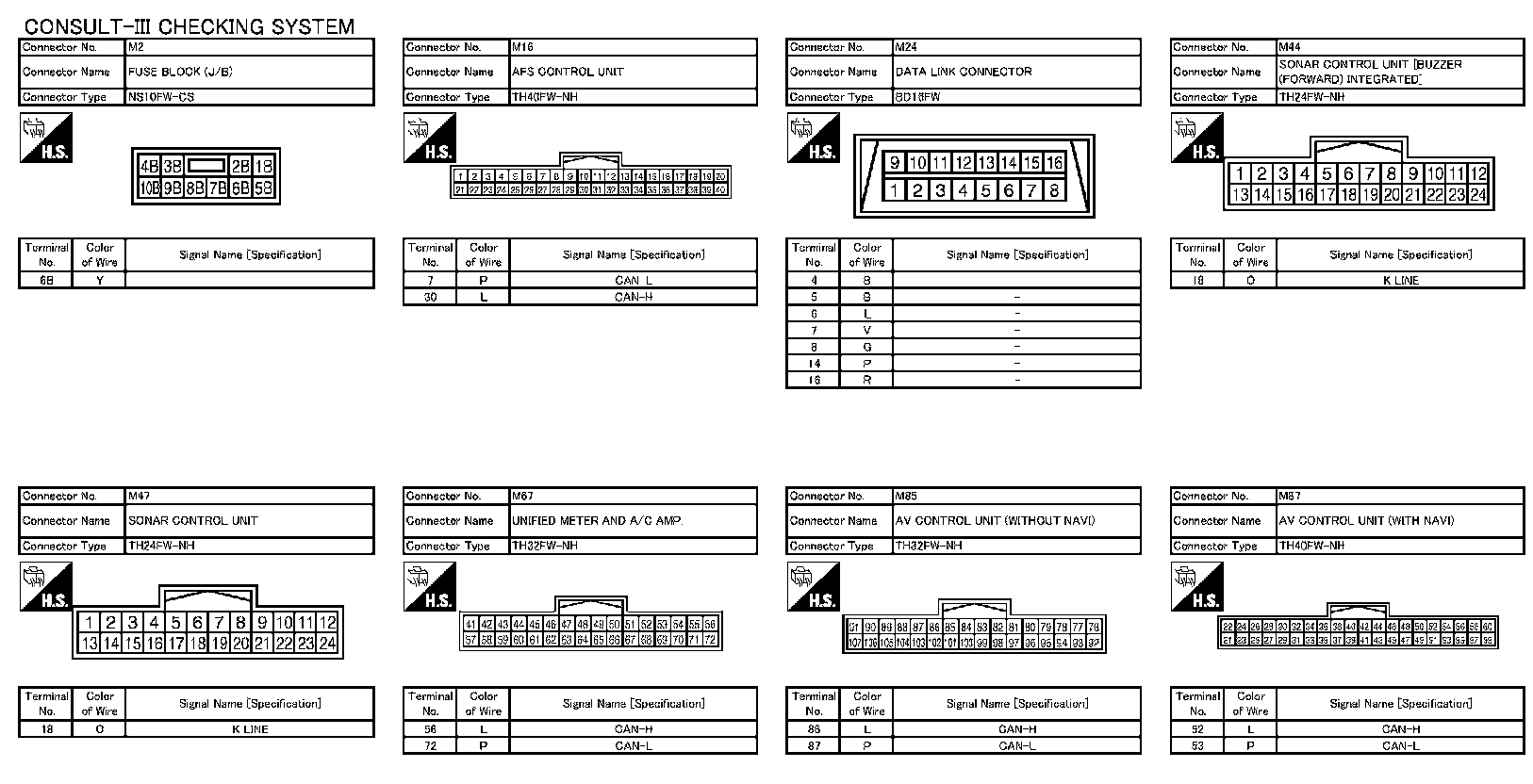

Wiring Diagram - CONSULT-III Checking System - Part 1:




Wiring Diagram - CONSULT-III Checking System - Part 2:

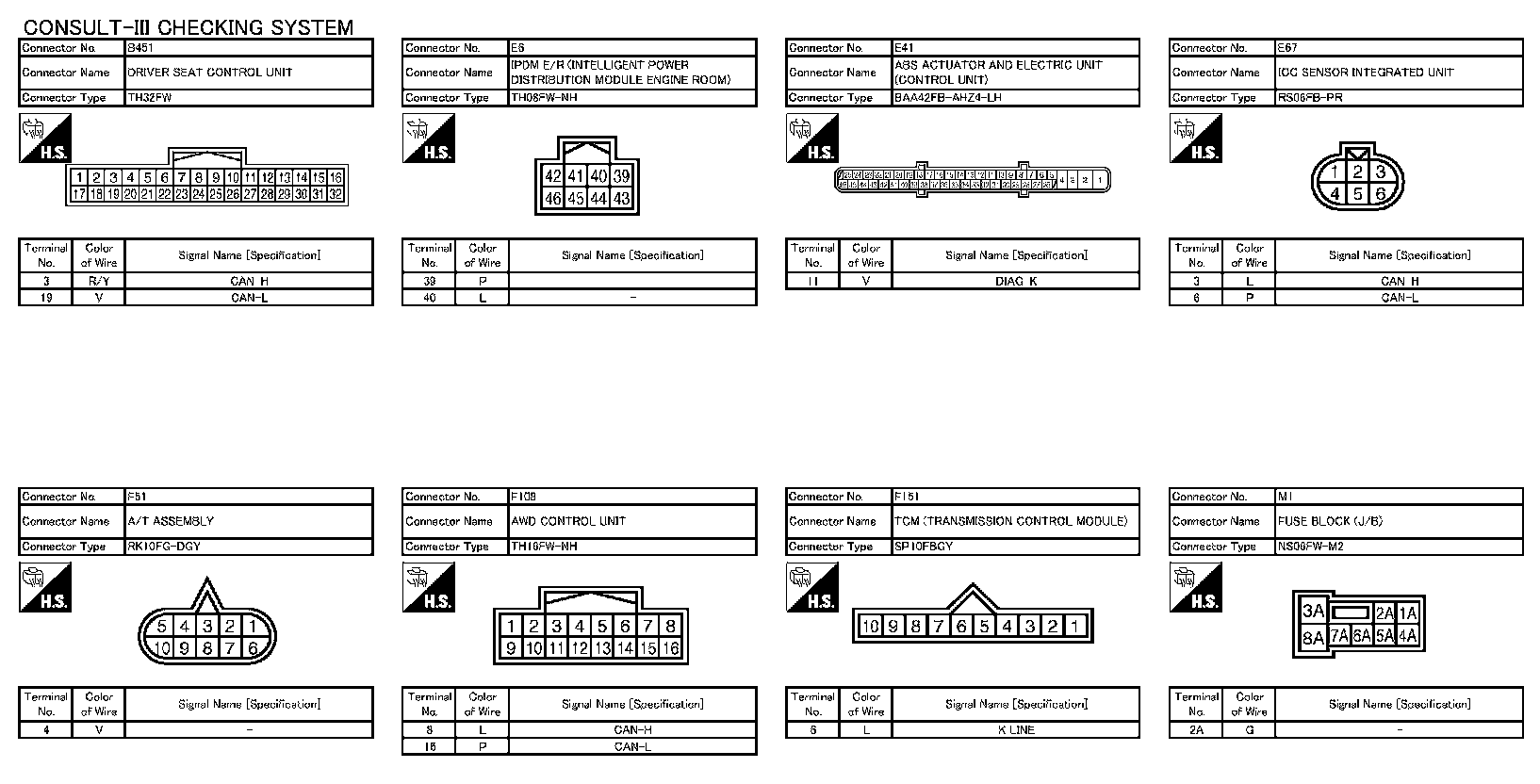

Wiring Diagram - CONSULT-III Checking System - Part 3:




Wiring Diagram - CONSULT-III Checking System - Part 4:
