Electrical Load Signal
ELECTRICAL LOAD SIGNALDescriptionThe electrical load signal (Headlamp switch signal, etc.) is transferred through the CAN communication line from
BCM to ECM via IPDM E/R.

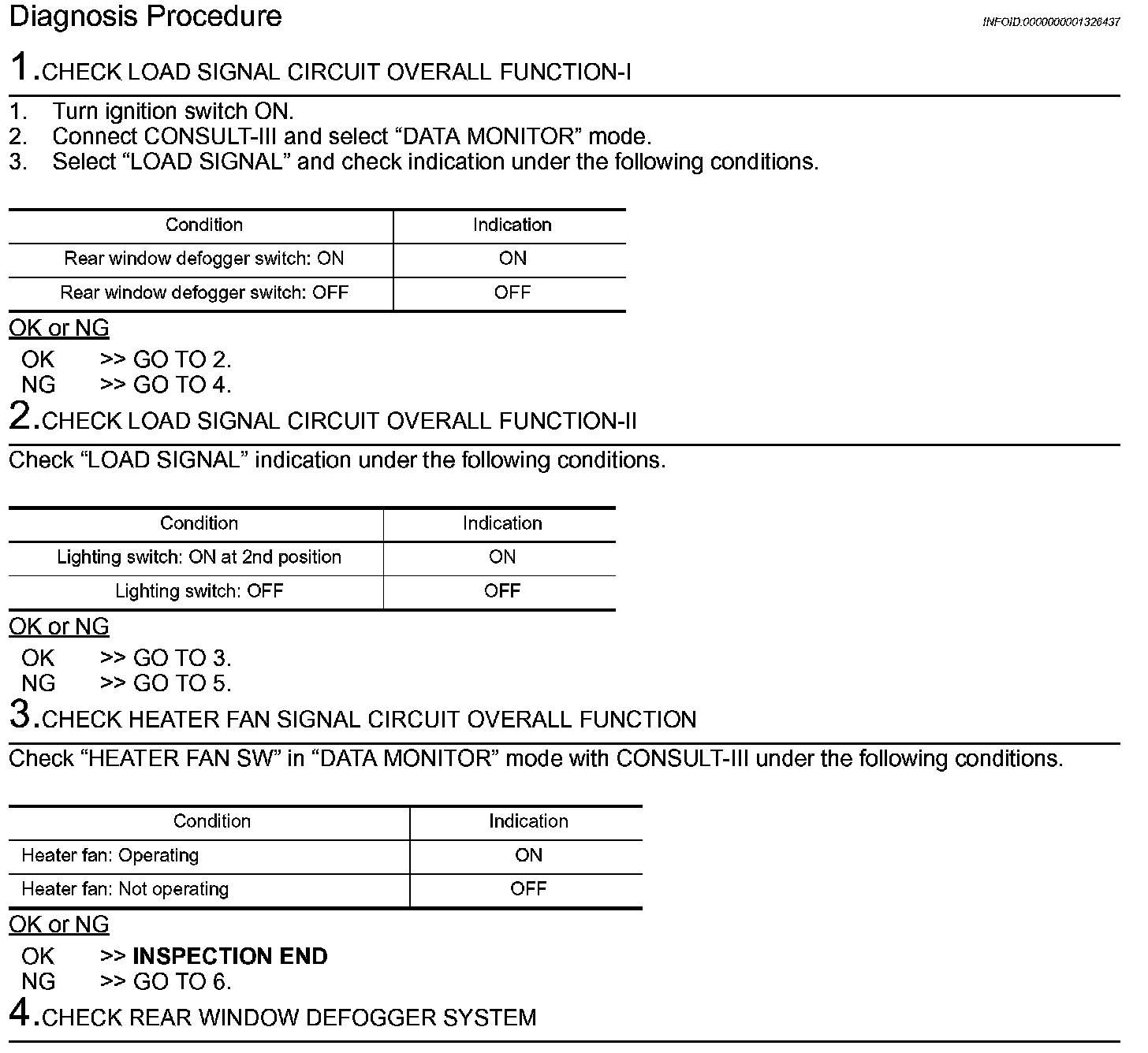

CONSULT-III Reference Value in Data Monitor ModeDiagnosis ProcedureStep 1-4:
Step 4 (Continued)-6:
