System Specifications

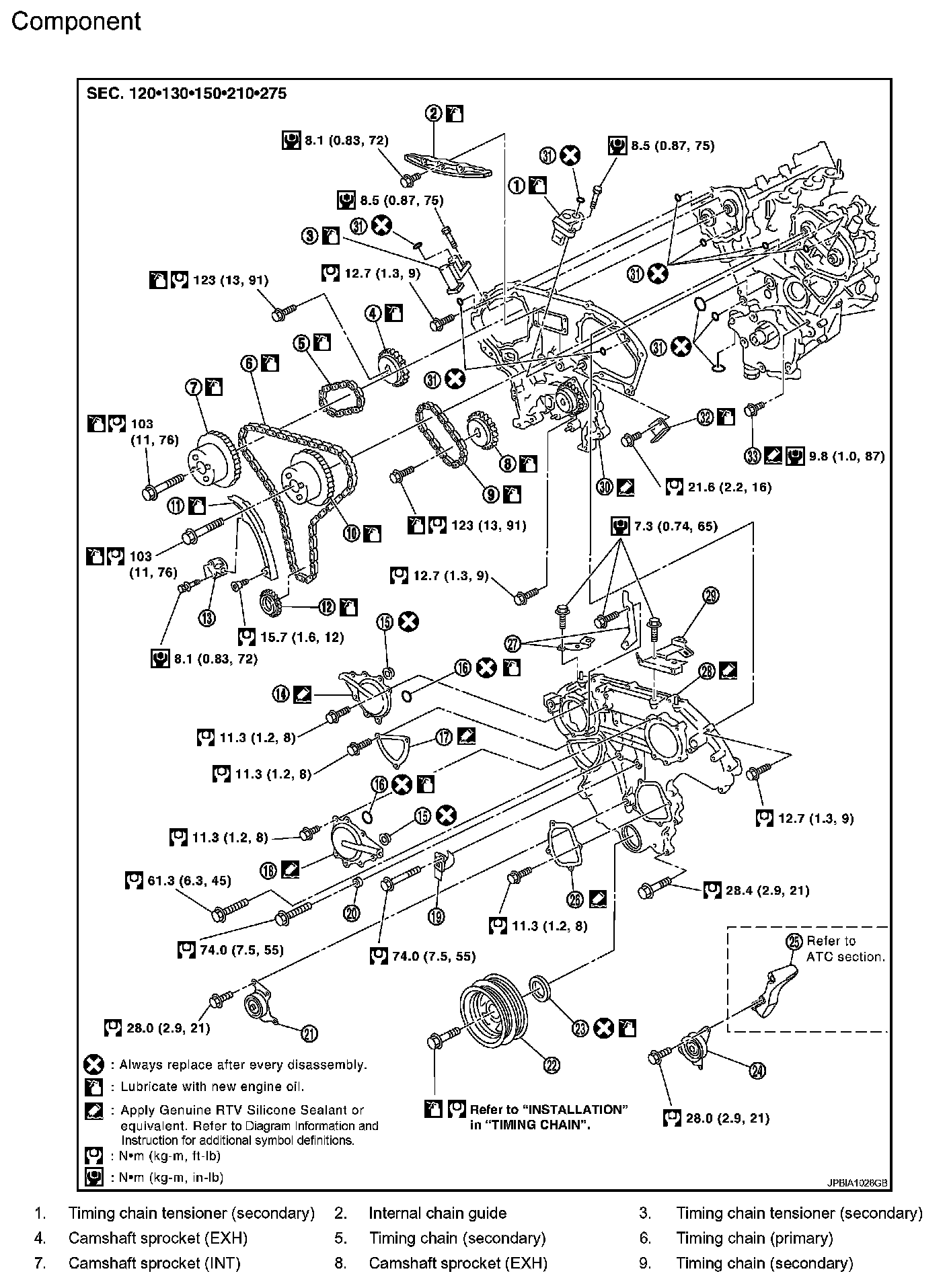

EM-64 Component (Part 1):

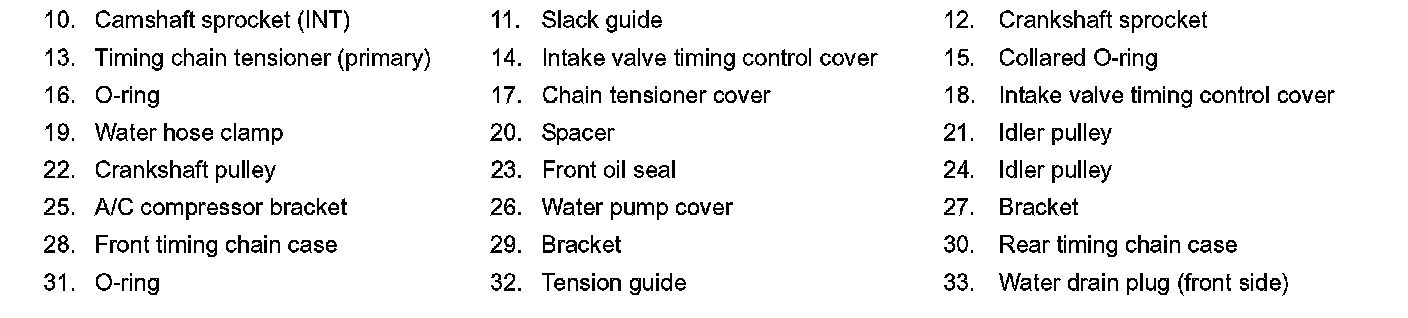

EM-64 Component (Part 2):

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolt.
Torque 44.1 Nm (4.5 kg-m, 33 ft-lb)

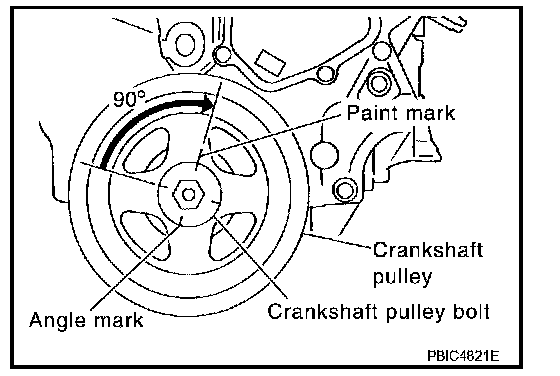

Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.





Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. The angle between two notches is 90 degrees.
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.

Timing Cover

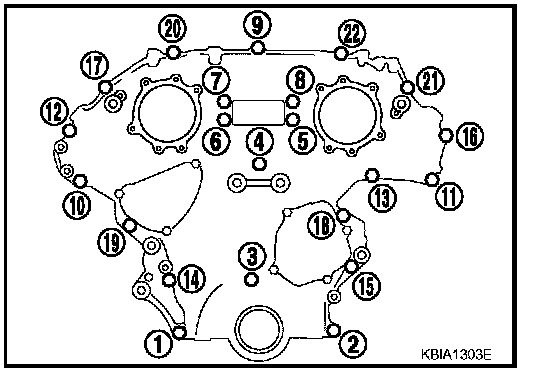

Tighten mounting bolts to the specified torque in numerical order as shown in the figure.
There are two types of mounting bolts. Refer to the following for locating bolts.
M8 bolts 1, 2 28.4 Nm (2.9 kg-m, 21 ft-lb)
M6 bolts Except the above 12.7 Nm (1.3 kg-m, 9 ft-lb)
After all bolts tightened, retighten them to the specified torque in numerical order as shown in the figure.
