Front Fender: Service and Repair

FRONT FENDER

Removal and Installation

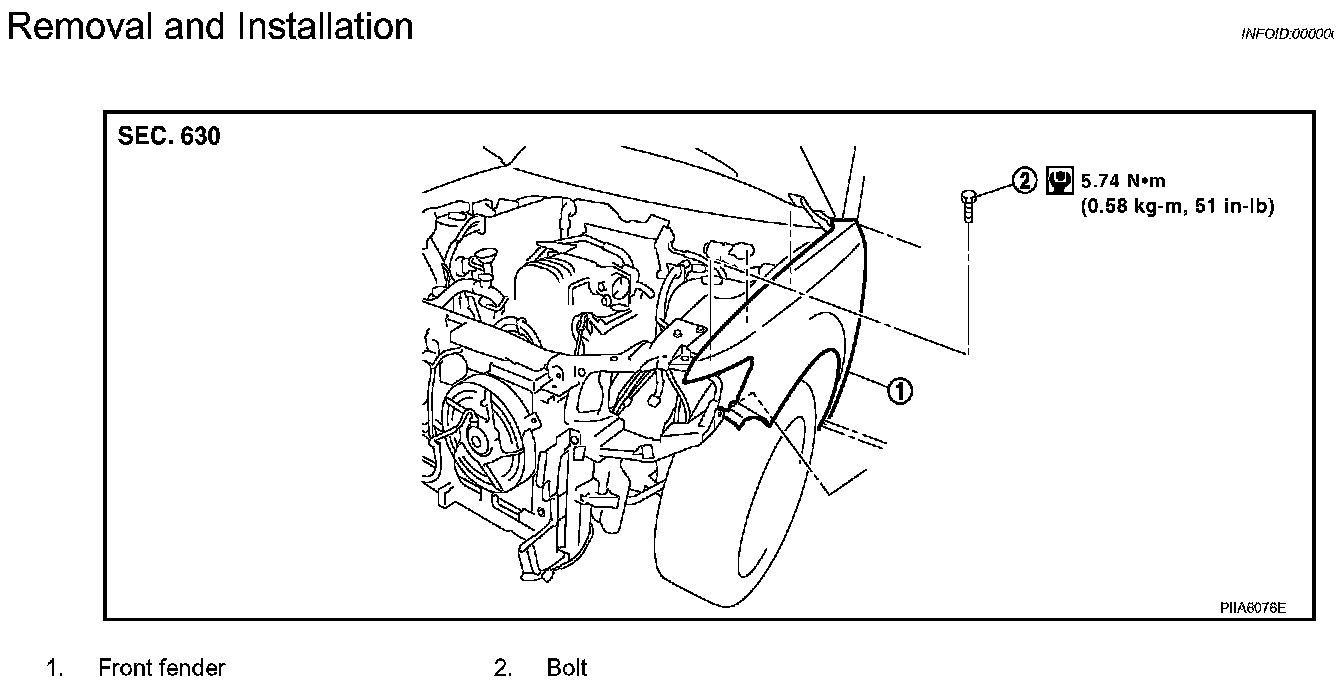

BL-20 Exploded View:






REMOVAL
1. Remove the front bumper.
2. Remove the headlamp.
3. Remove the front fender protector.
4. Remove the mounting bolt and remove the front fender.

CAUTION: While removing use a shop cloth to protect body from damaging.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint (the body color) onto the head of the front fender mounting bolts.
- After installing, check front fender adjustment.
