Remote Keyless Entry
Trouble Diagnosis Chart by SymptomNOTE: -
Always check the "Work Flow" before troubleshooting. Refer to BL-62, "Work Flow".
Remote Keyless Entry -
Always check key fob battery before replacing key fob.

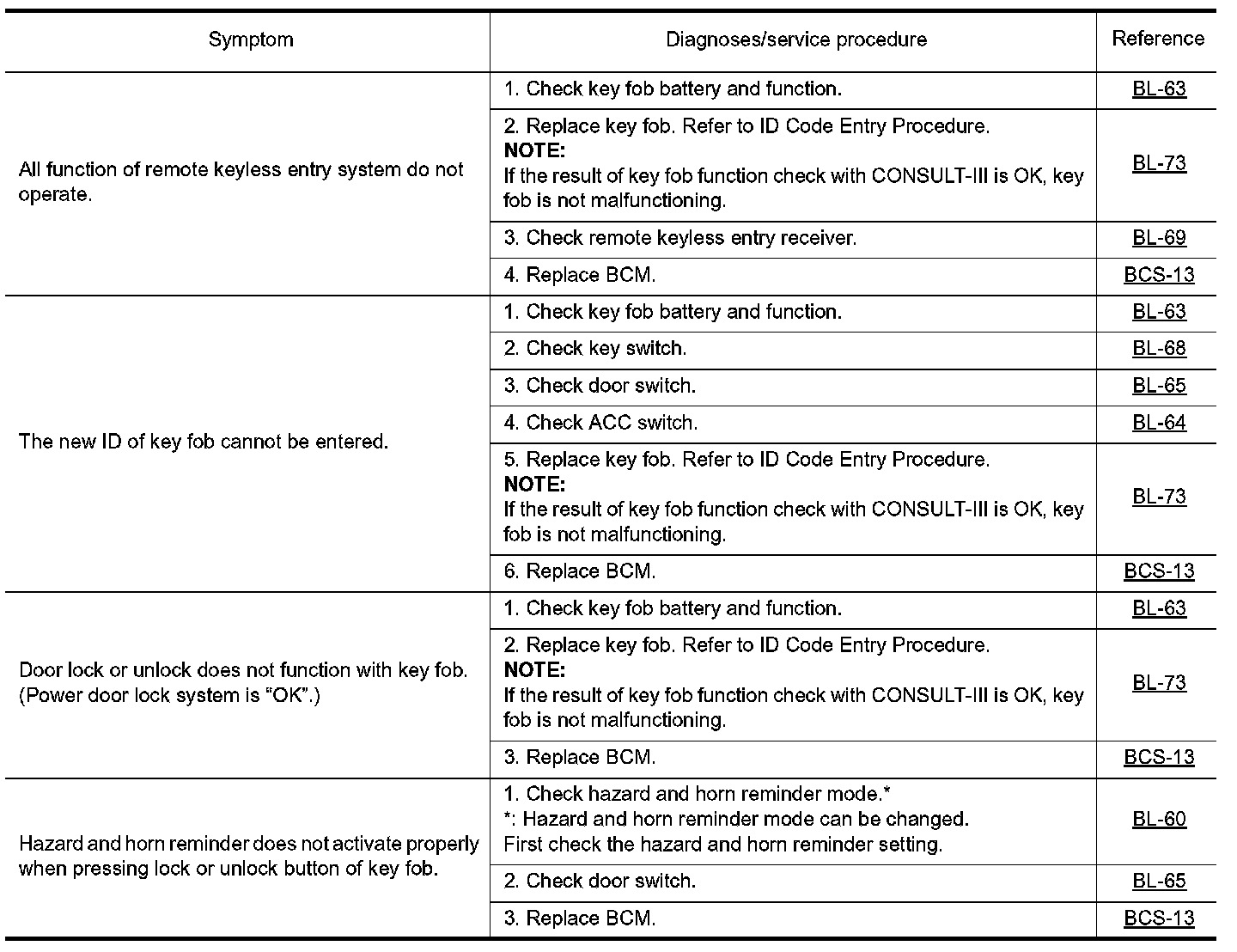

Trouble Diagnosis Chart By Symptom (Part 1):

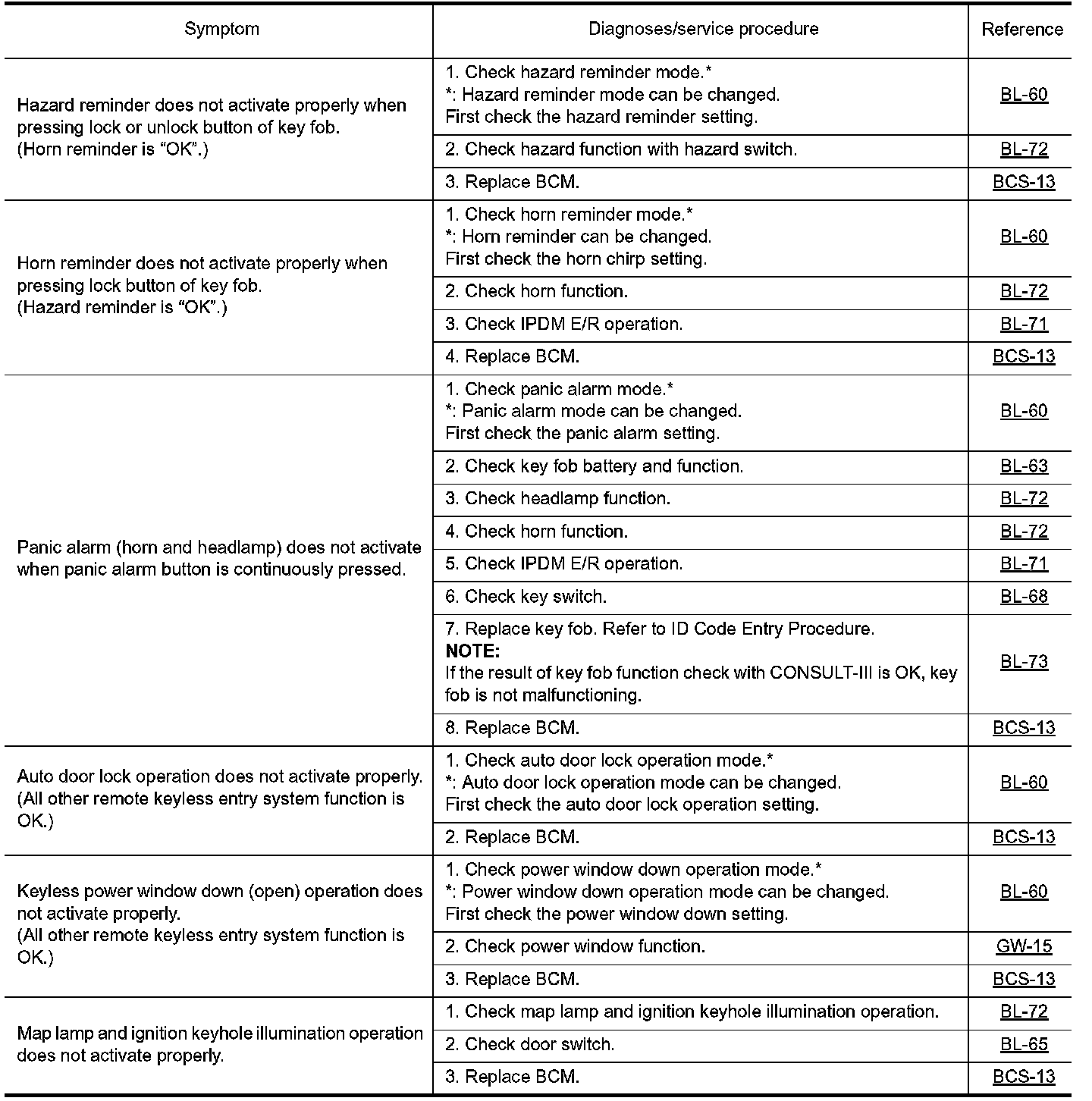

Trouble Diagnosis Chart By Symptom (Part 2):
