Active Test

ACTIVE TEST

CAUTION:
- Never perform the active test while driving.
- Active test cannot be started while ICC system warning indicator illuminates.

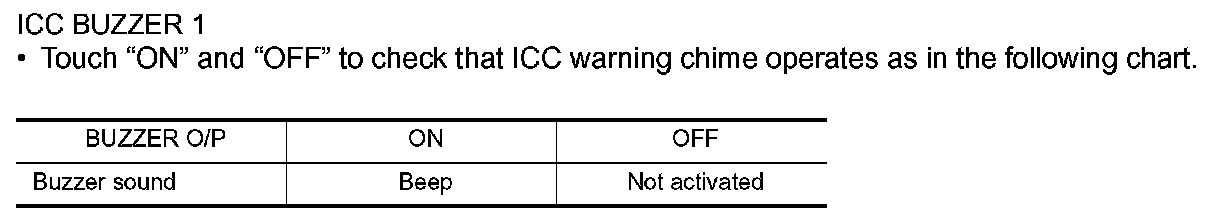

ICC BUZZER 1

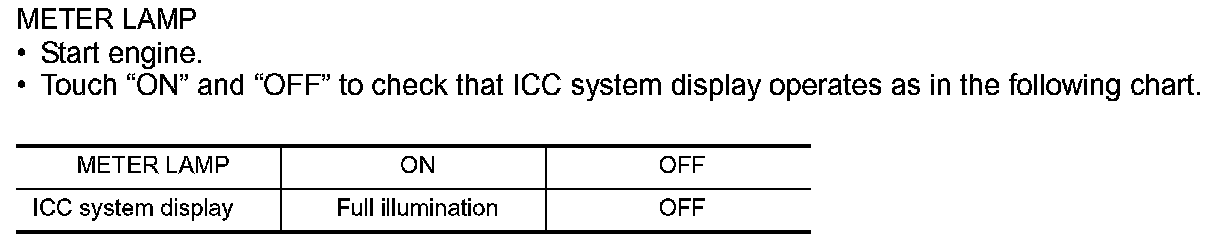

METER LAMP

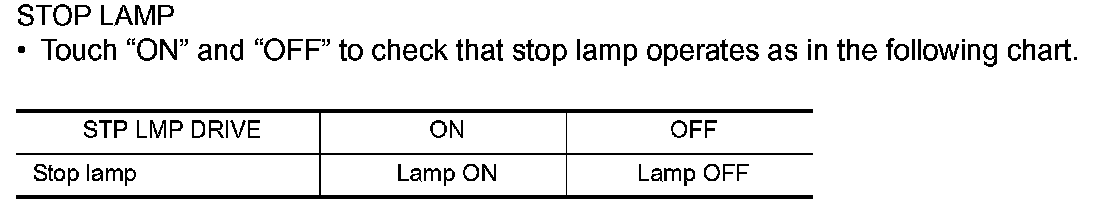

STOP LAMP

BOOSTER SOL/V 3
- Start engine.

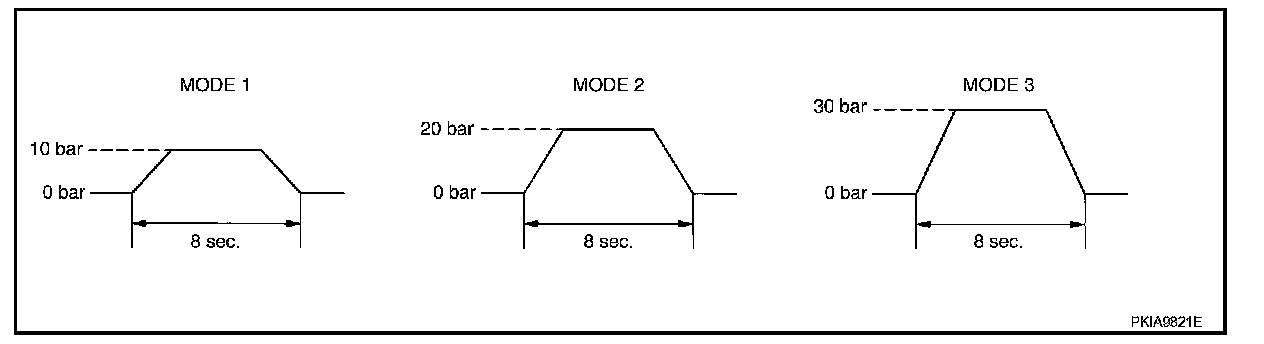

- Touch any of "MODE 1", "MODE 2", "MODE 3" to check that following operation condition is caused by operating monitor and brake pedal.
- START is displayed 10 seconds after operation start. (Active test is completed.)
