Refrigerant Pressure Sensor / Switch: Service and Repair
Removal and Installation of Refrigerant Pressure SensorREMOVAL 1.
Remove condenser.
2.

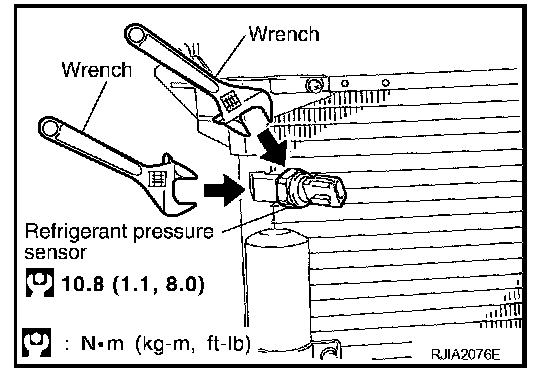

Remove refrigerant pressure sensor from condenser.
CAUTION: When working, be careful not to damage the condenser.
INSTALLATIONInstallation is basically the reverse order of removal.
CAUTION: Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.
