Tail Lamp Control Module: Service and Repair

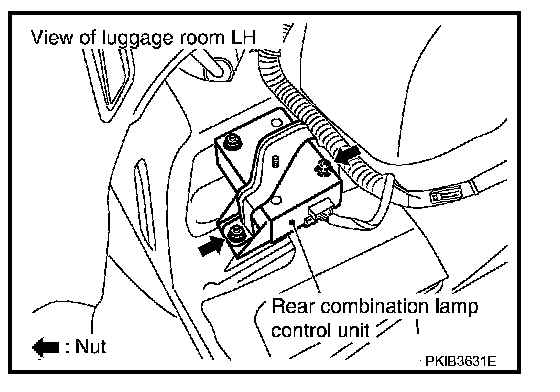

Removal and Installation of Rear Combination Lamp Control UnitREMOVAL 1.
Remove luggage side box (LH).
2.
Remove nuts (2), and remove rear combination lamp control unit.
INSTALLATIONInstallation is the reverse order of removal.
