CAN Communication Signal Chart

CAN Communication Signal Chart
Refer to LAN-13, "How to Use CAN Communication Signal Chart" for how to use CAN communication signal chart. Trouble Diagnosis Work Flow

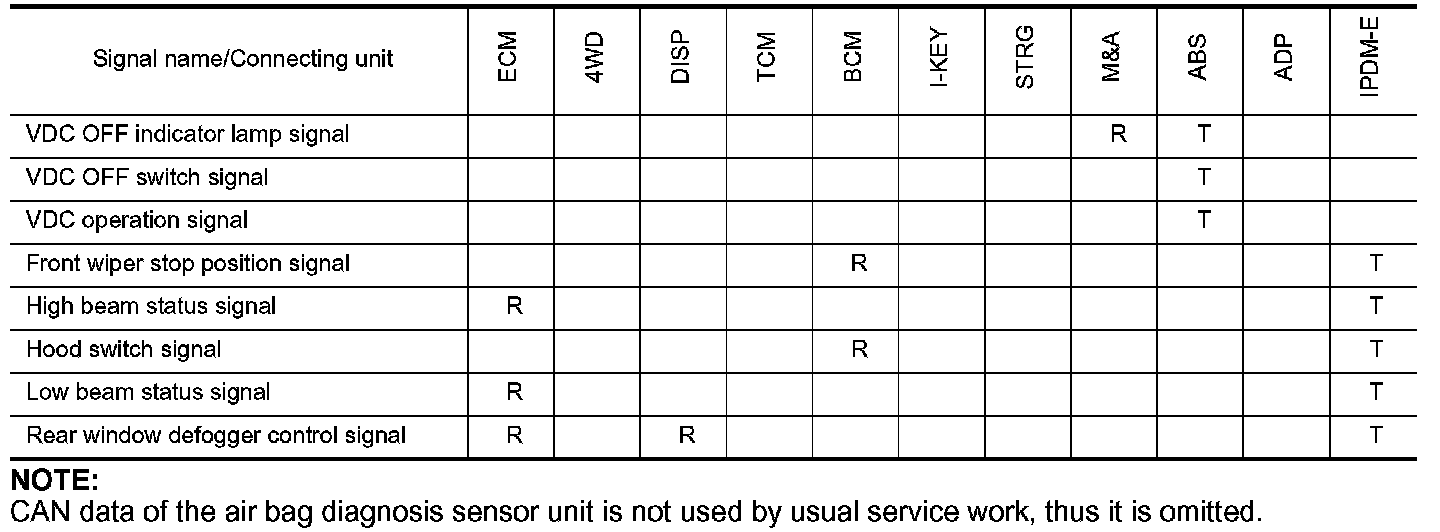

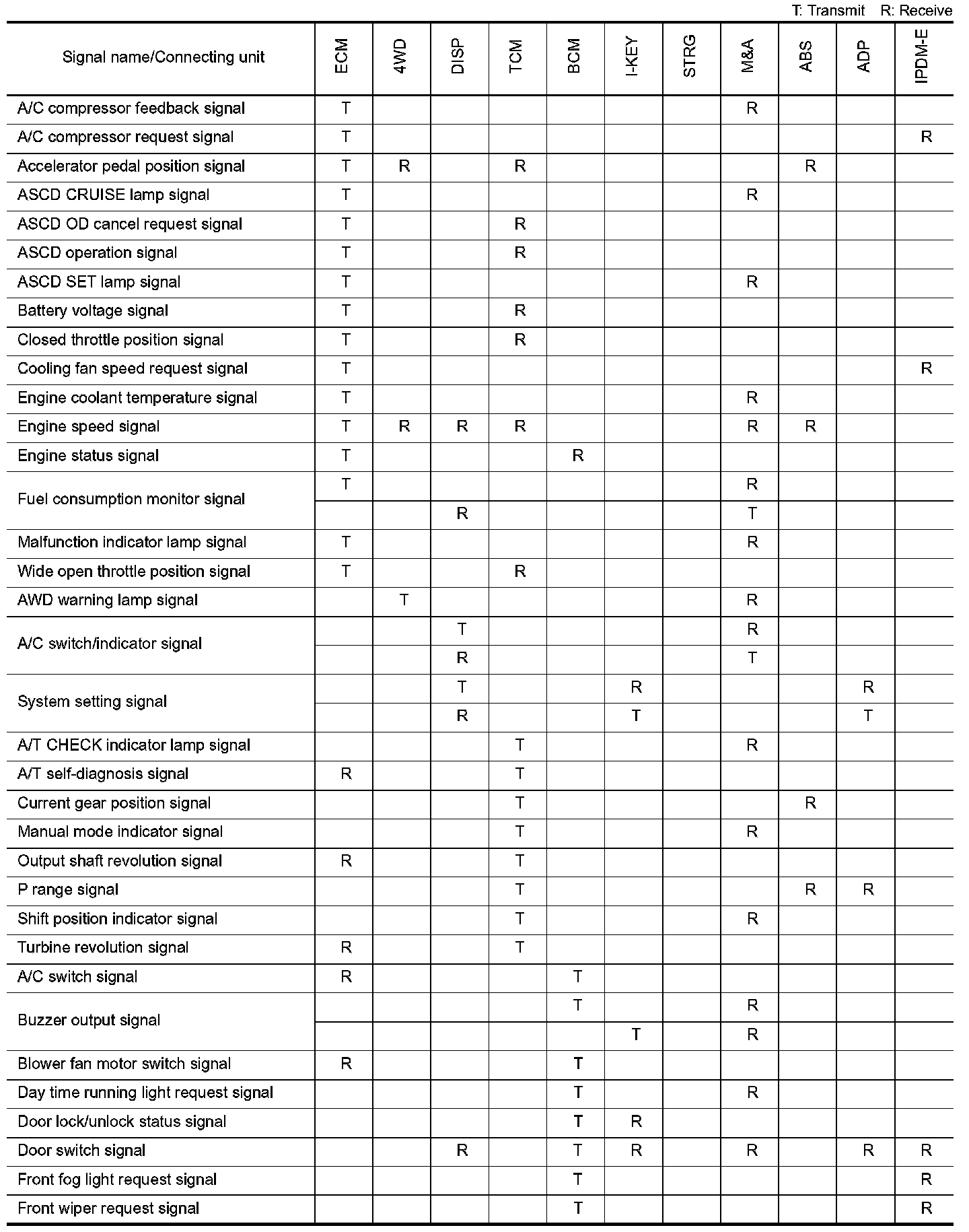

TYPE 1/TYPE 2

NOTE: Refer to LAN-37, "Abbreviation List" for the abbreviations of the connecting units. Abbreviation List

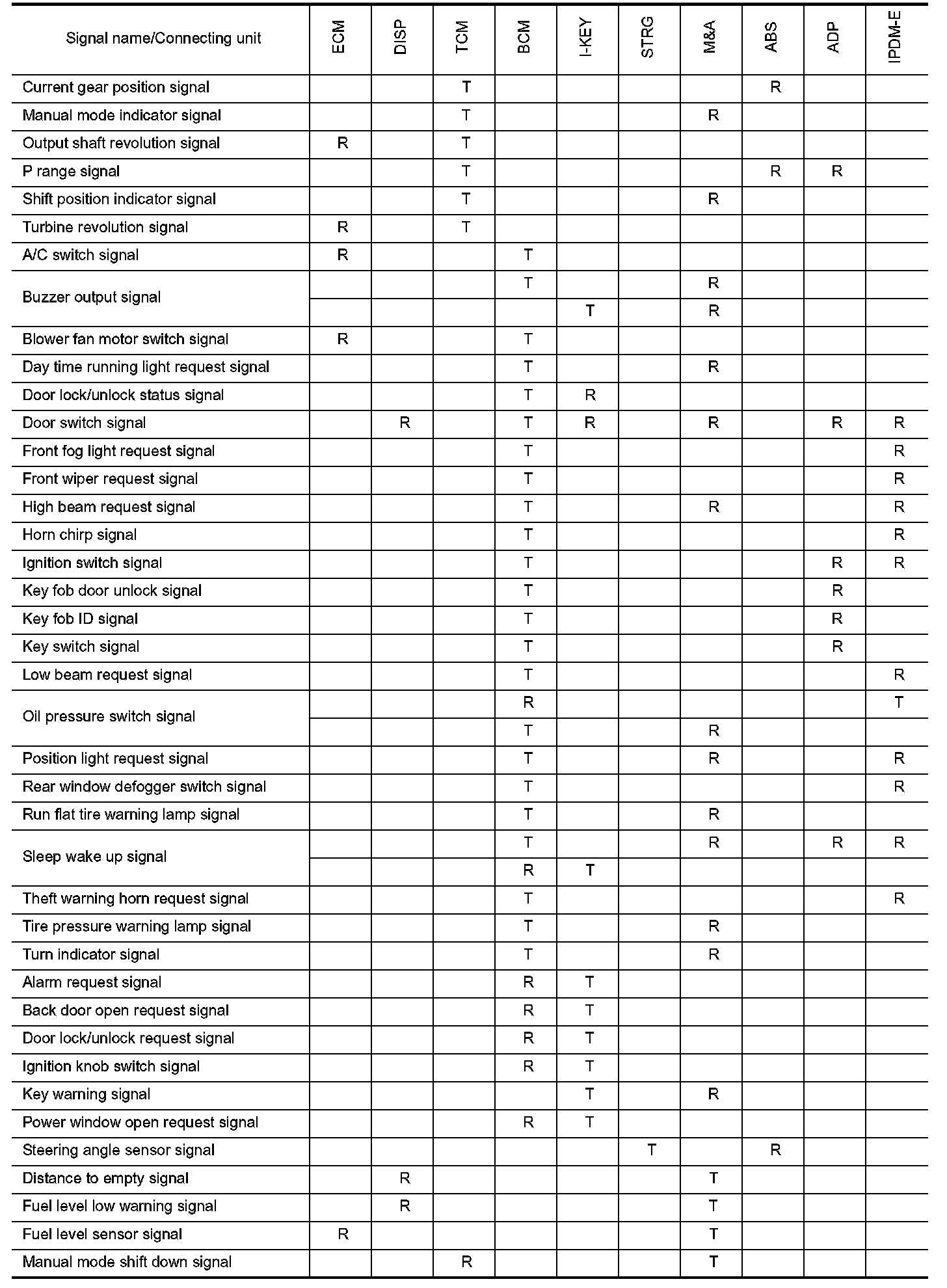

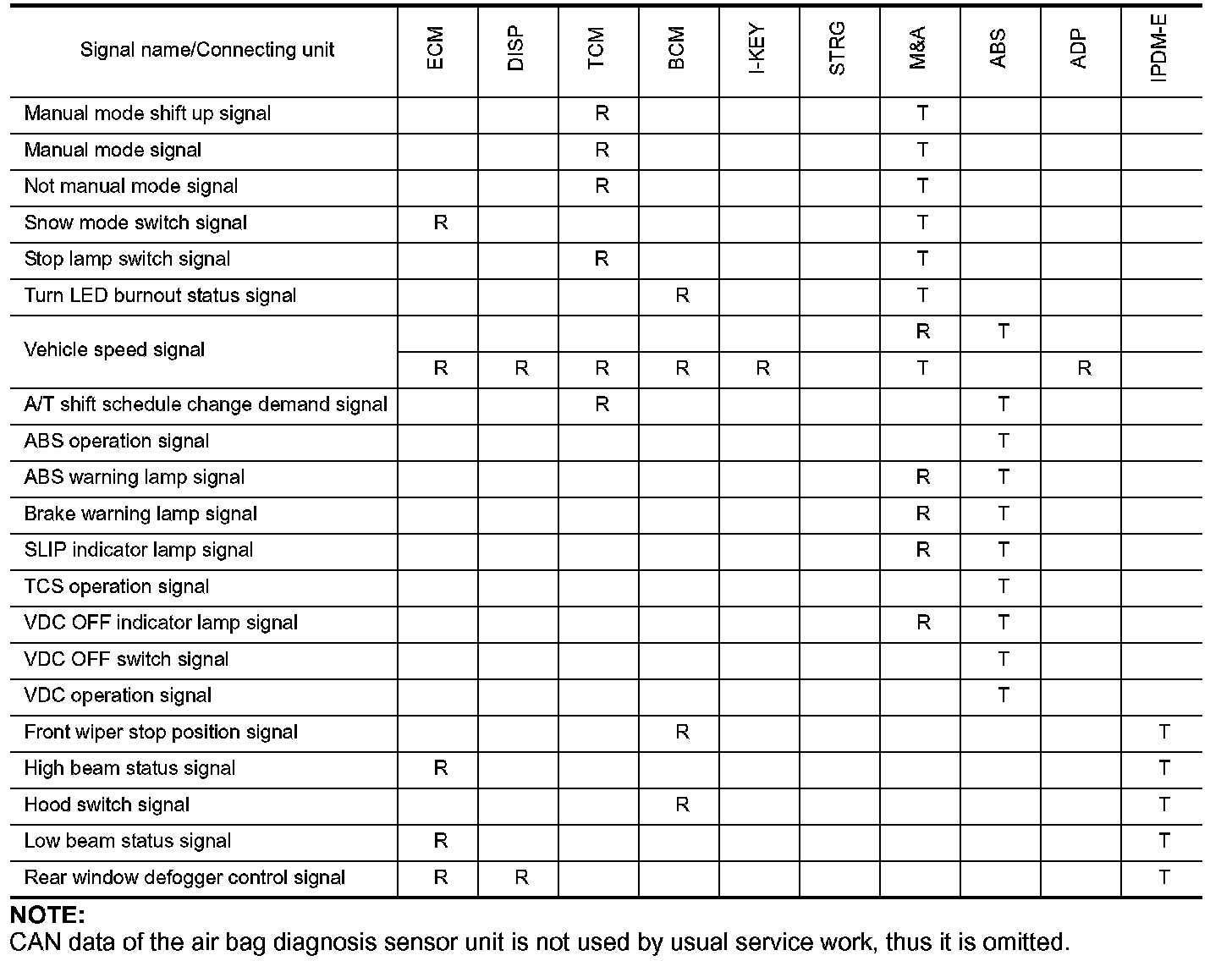

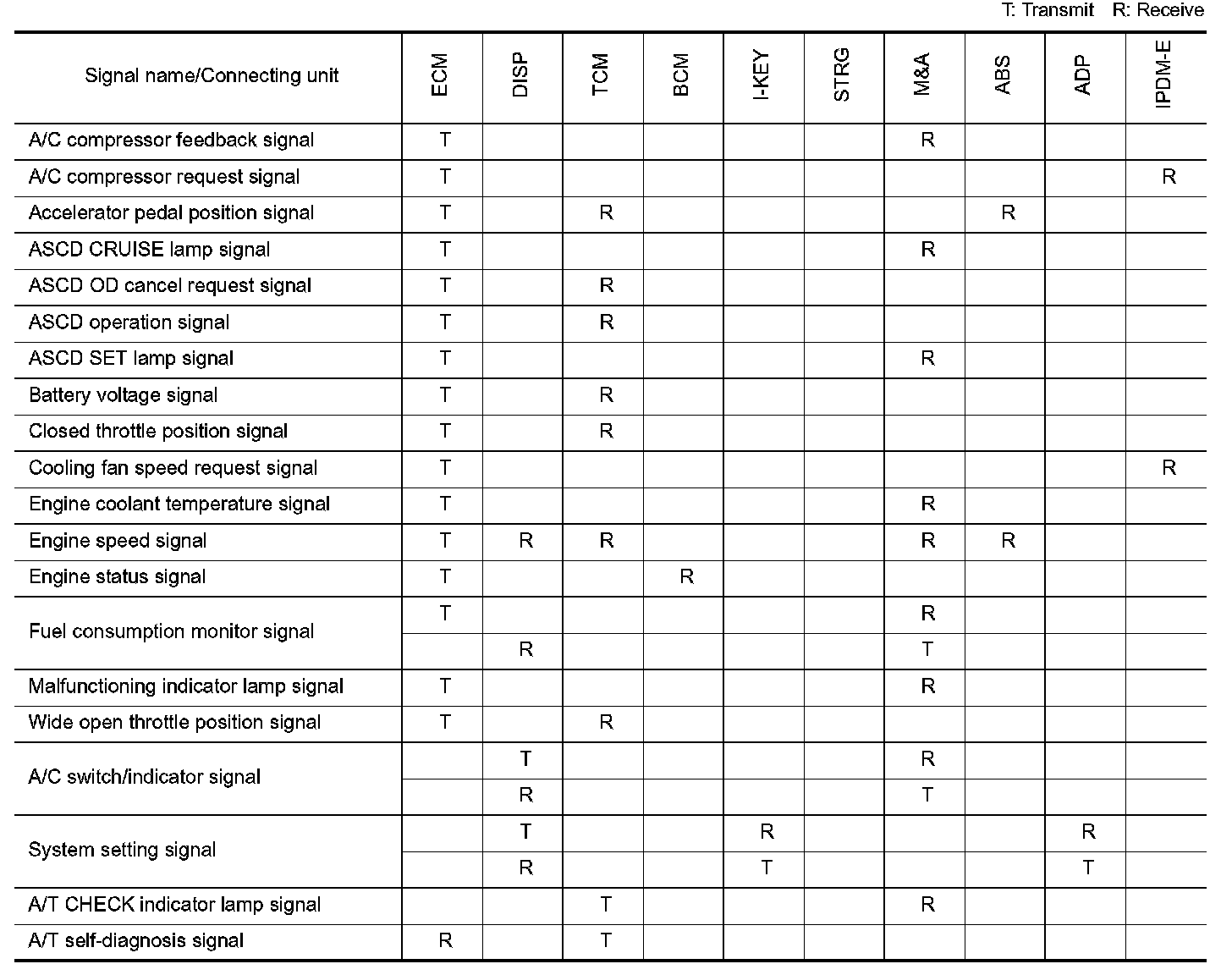

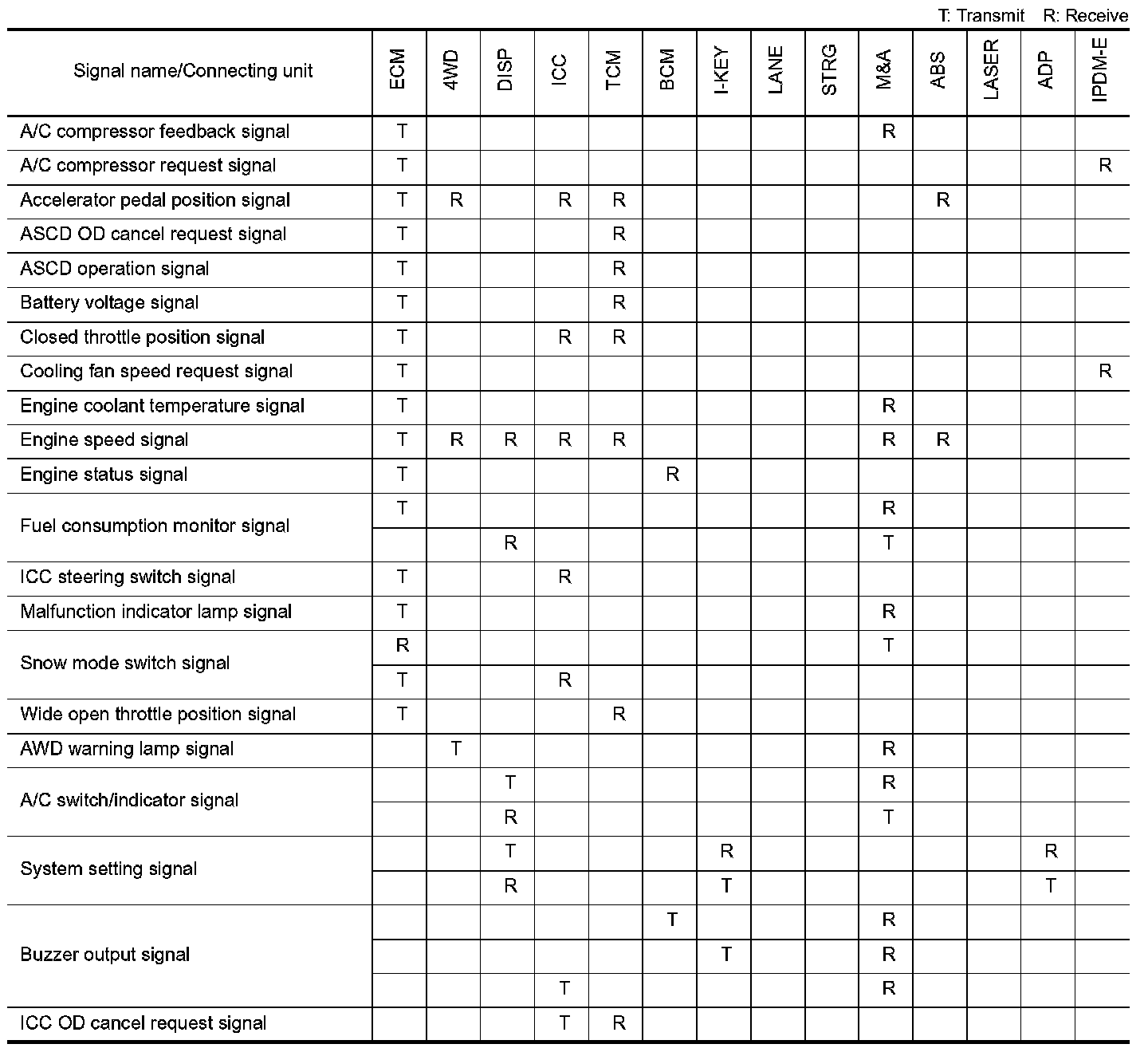

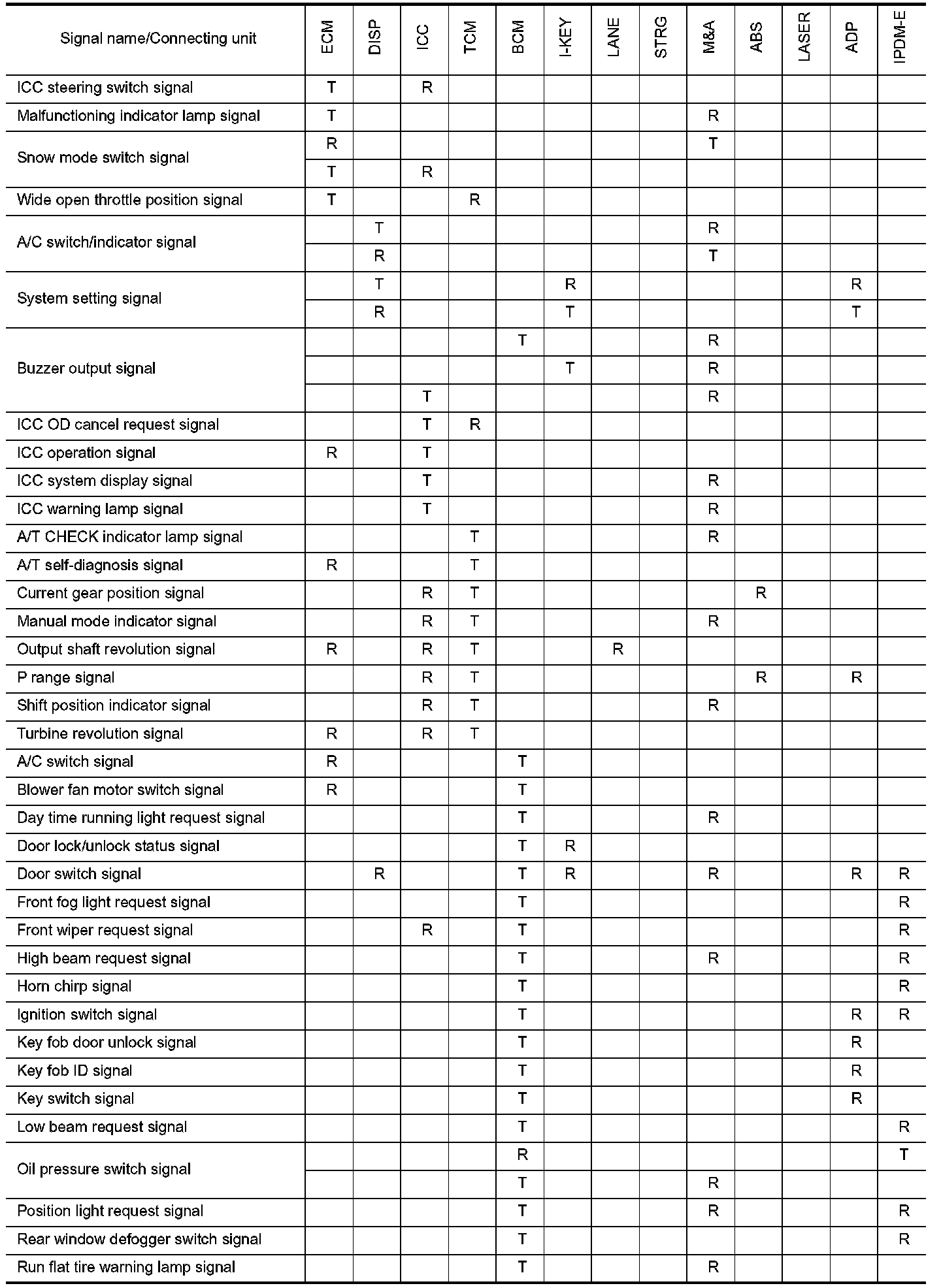

TYPE 3

NOTE: Refer to LAN-37, "Abbreviation List" for the abbreviations of the connecting units. Abbreviation List

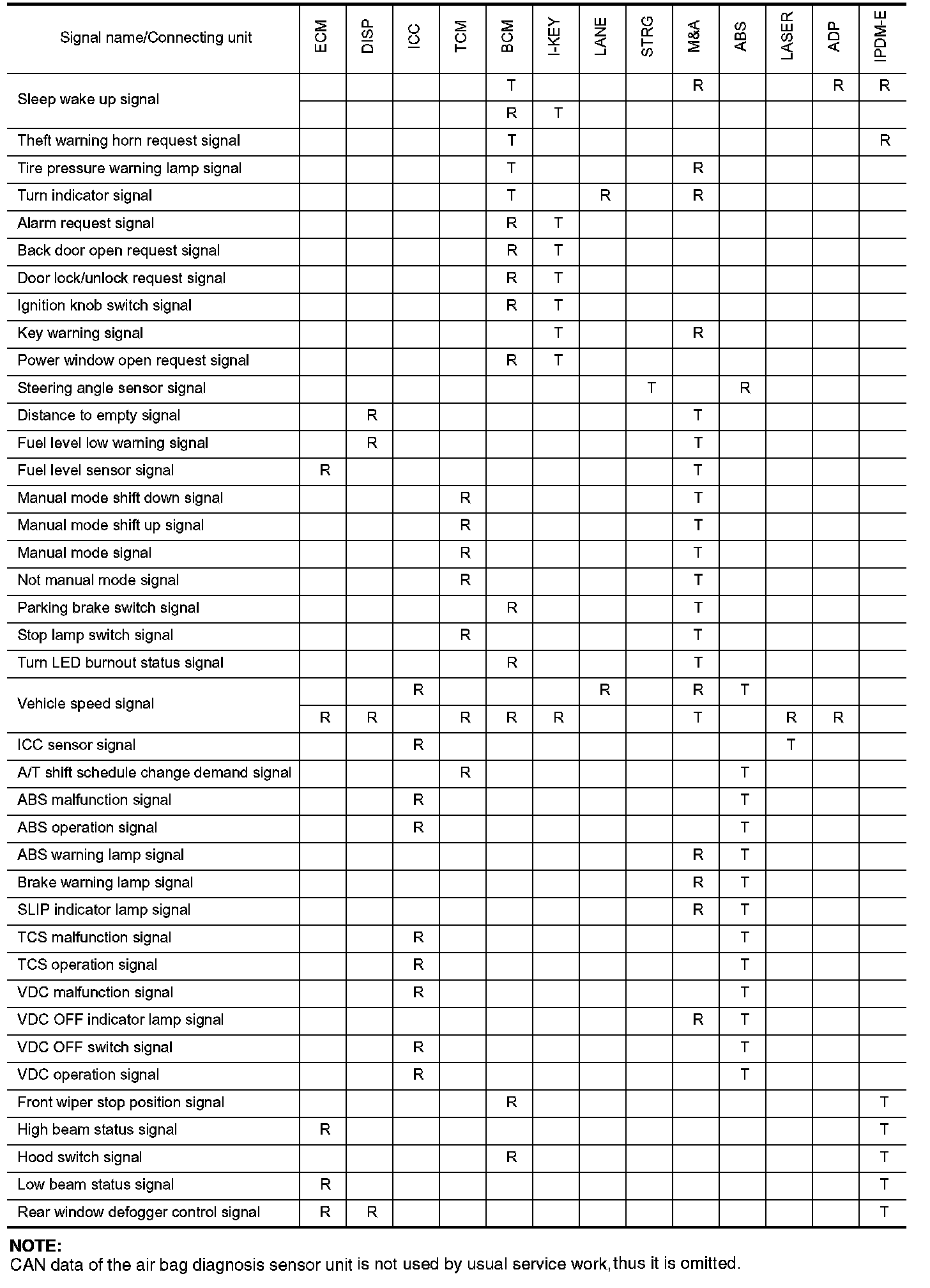

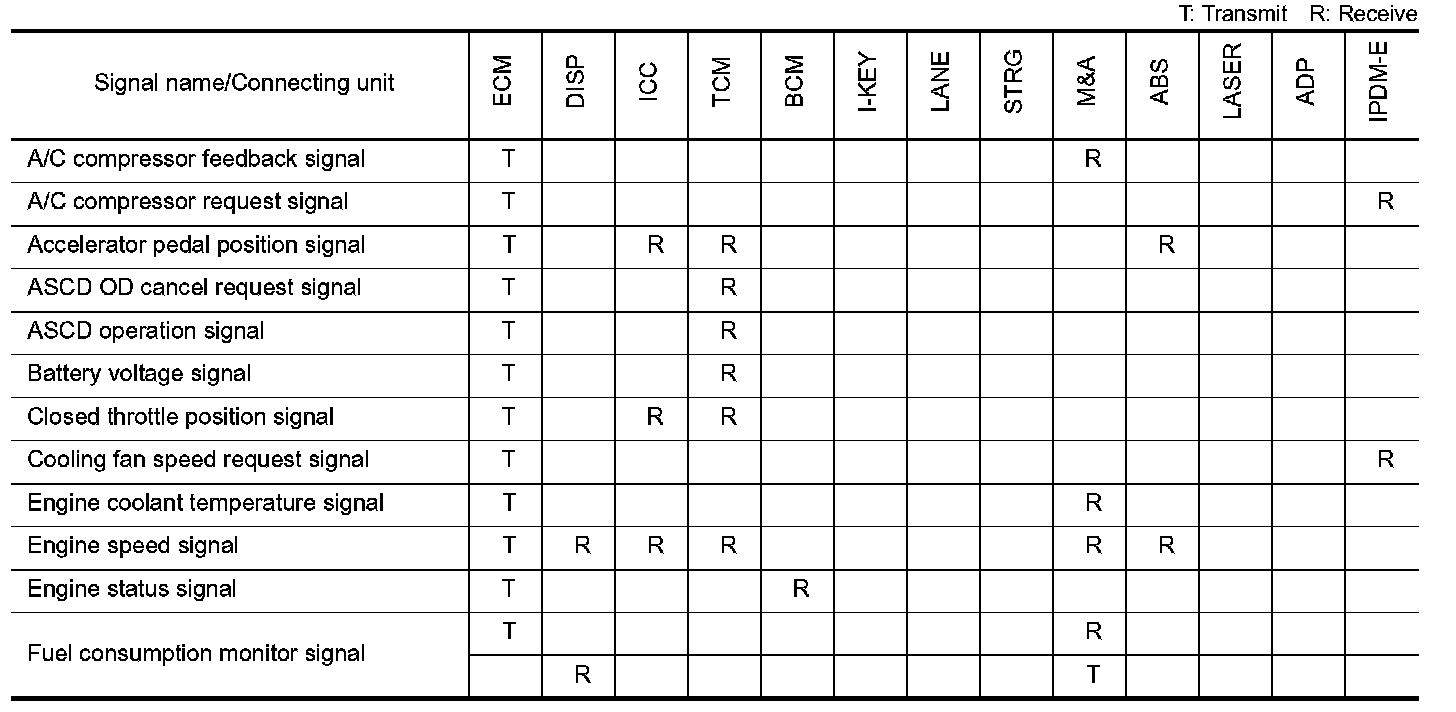

TYPE 4/TYPE 5/TYPE 7

NOTE: Refer to LAN-37, "Abbreviation List" for the abbreviations of the connecting units. Abbreviation List

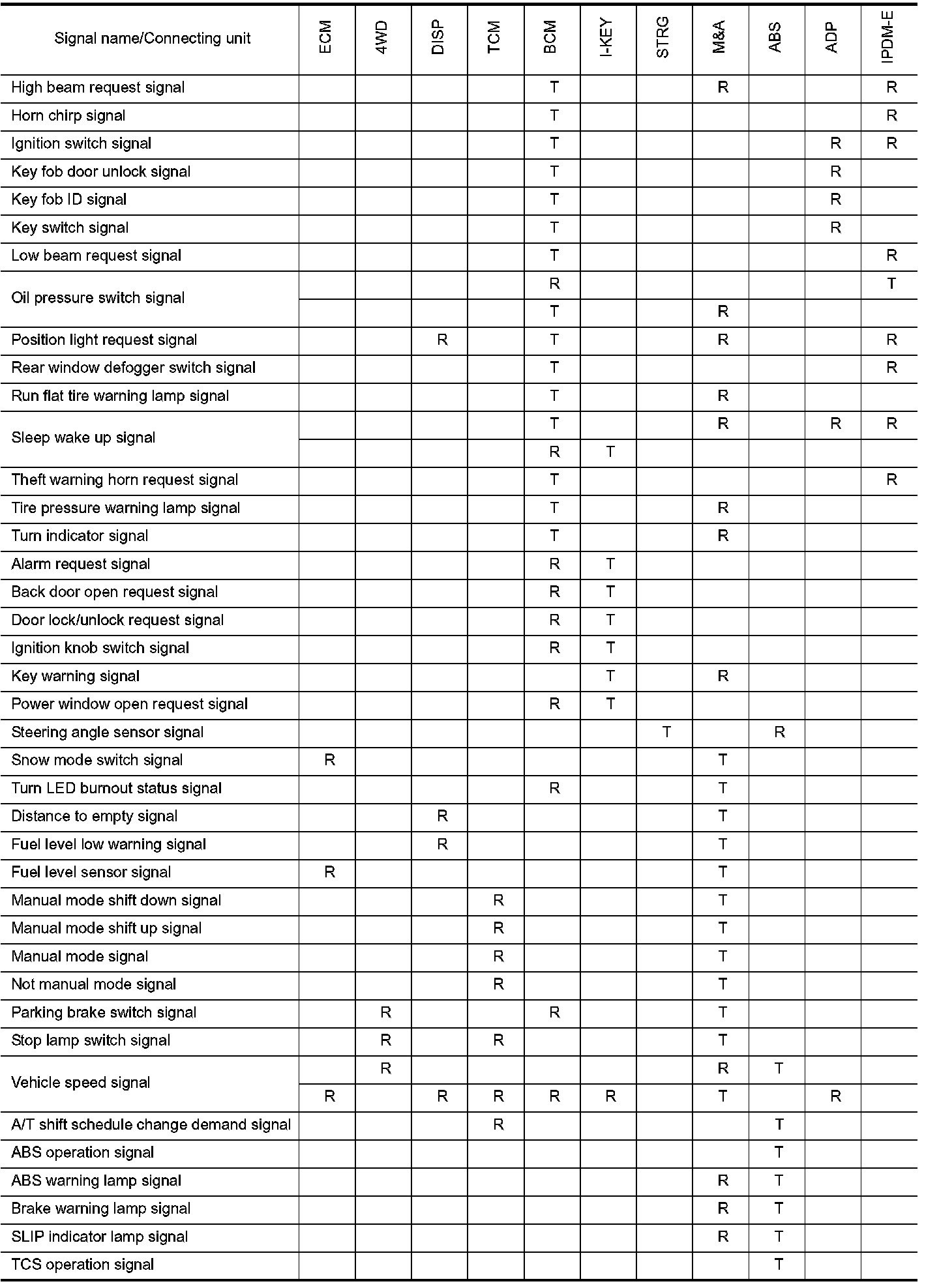

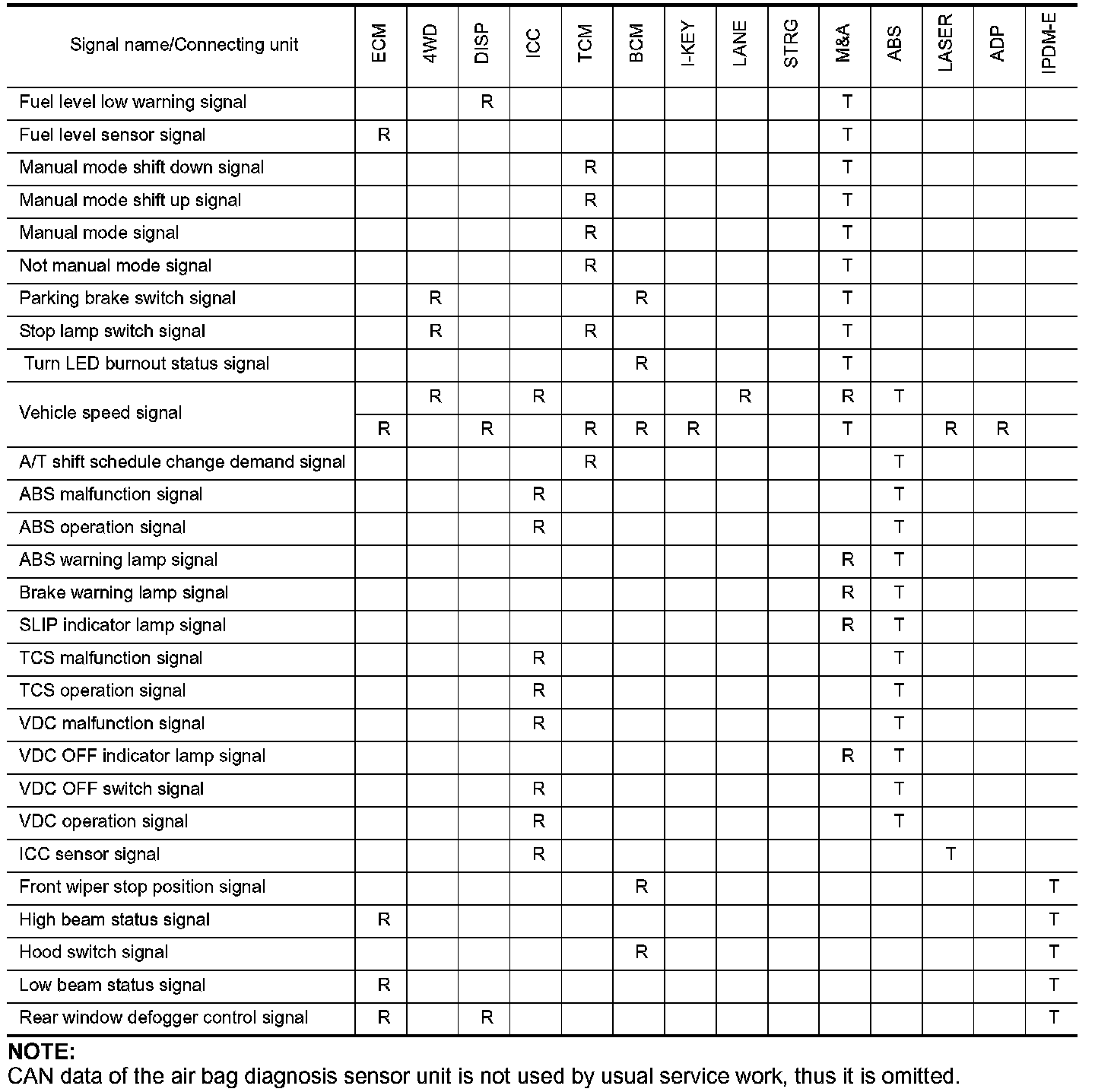

TYPE 6/TYPE 8

NOTE: Refer to LAN-37, "Abbreviation List" for the abbreviations of the connecting units. Abbreviation List
