Trouble Diagnosis With CONSULT-III

Trouble Diagnosis with CONSULT-III

DIAGNOSTIC PROCEDURE






DTC No. Index ("SELF-DIAG [CURRENT]" "SELF-DIAG [PAST]" or TROUBLE DIAG RECORD)

B1001-B1015:

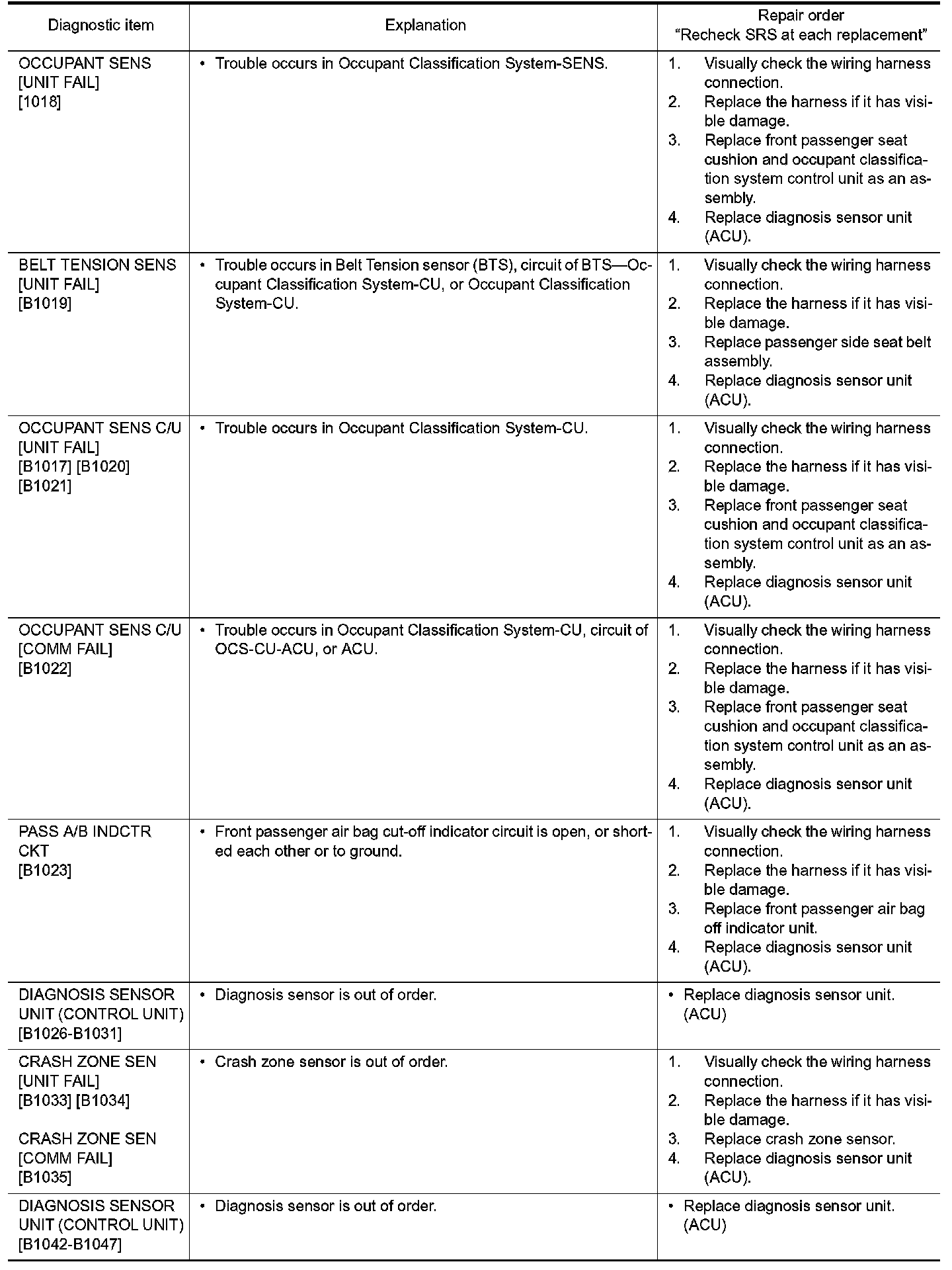

1018-B1047:

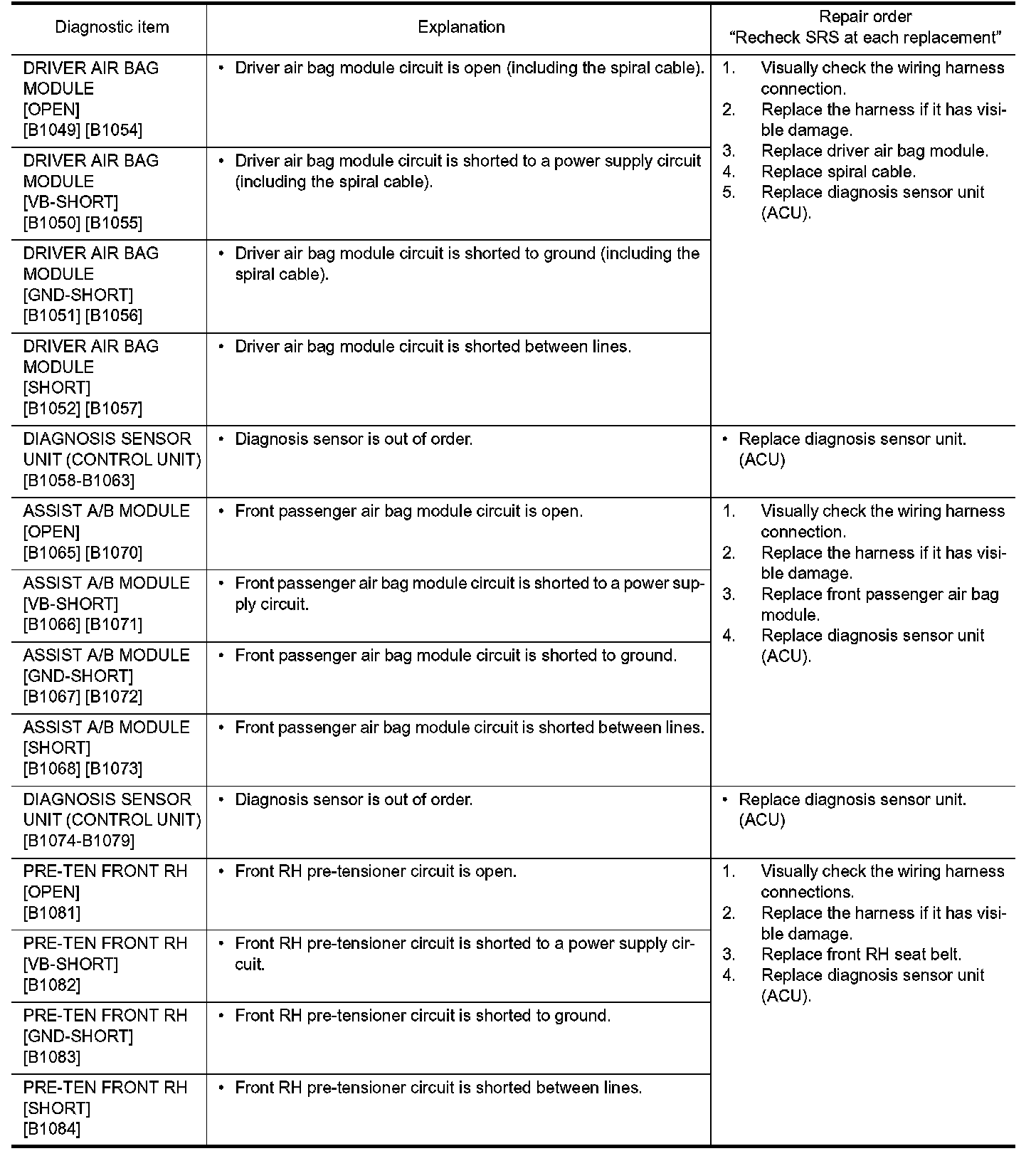

B1049-B1084:

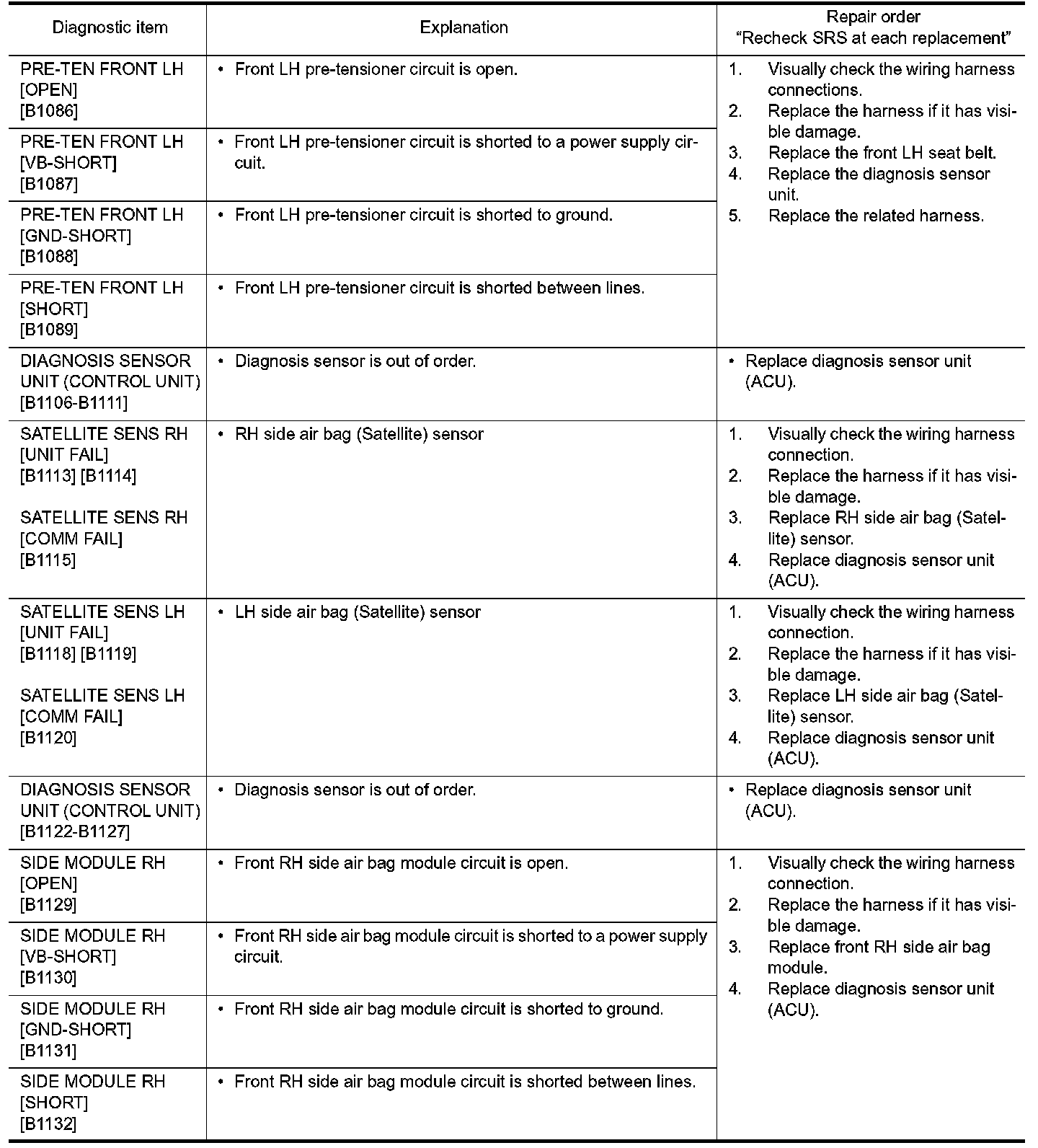

B1086-B1132:

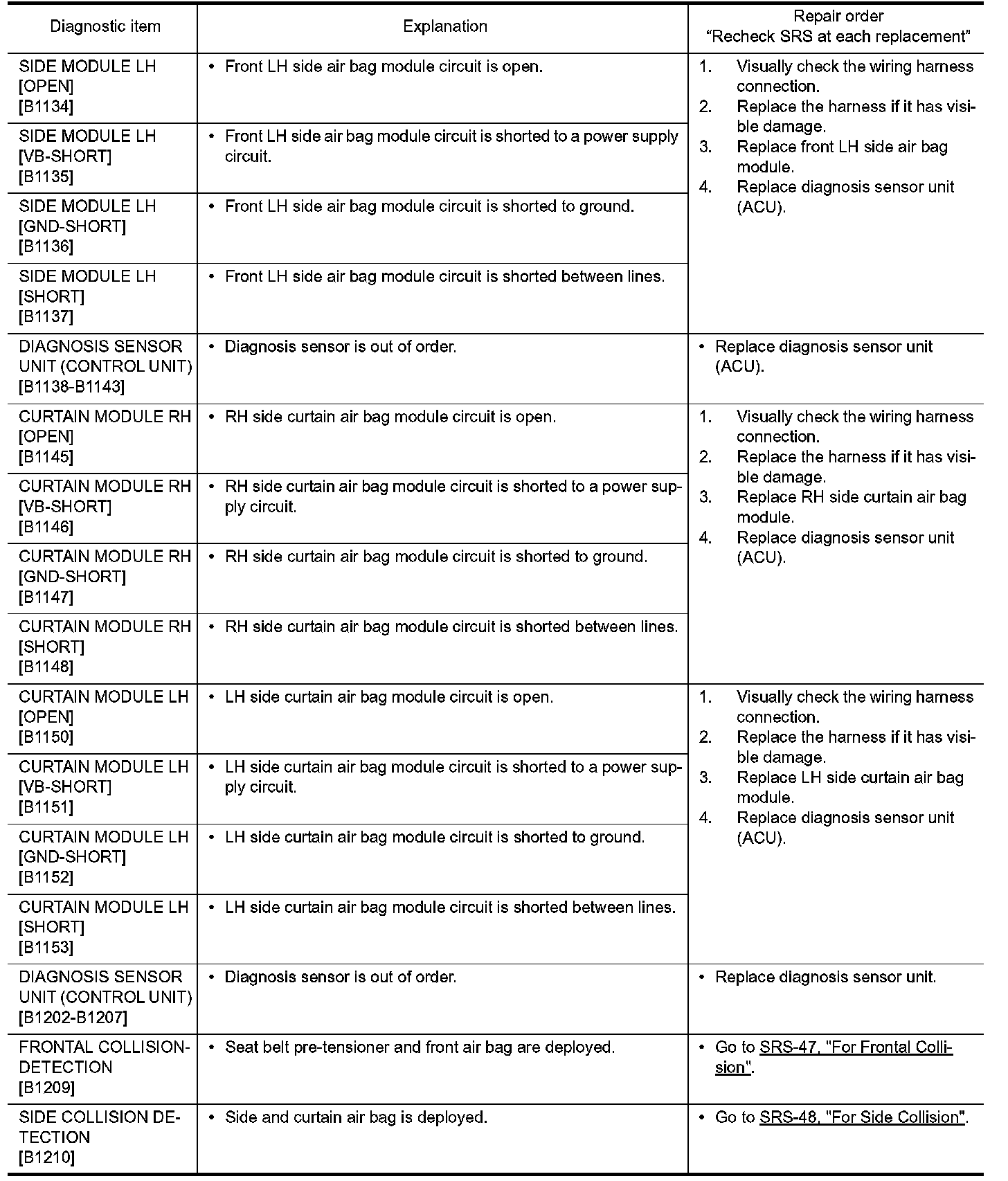

B1134-B1210:






NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp or CONSULT-III each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
