A/T Indicator Circuit
A/T INDICATOR CIRCUITDescription
TCM sends the switch signals to unified meter and A/C amp. by CAN communication line. Then manual mode switch position is indicated on the A/T indicator.

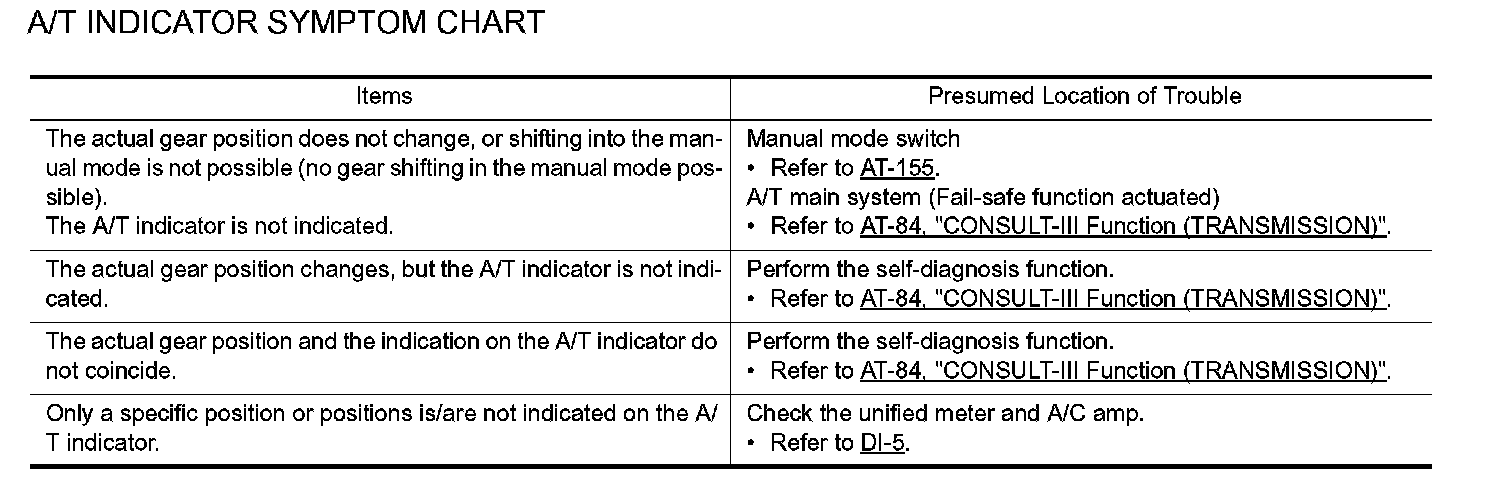

CONSULT-III Reference Value in Data Monitor Mode:
Diagnosis Procedure
1. CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-III and read out the value of "GEAR".
3. Drive vehicle in the manual mode, and confirm that the actual gear position and the meter's indication of the position mutually coincide when the selector lever is shifted to the "+ (up)" or "- (down)" side (1st <---> 5th gear).
OK or NG
OK >> INSPECTION END
NG >> Check the following.
