Key Reminder Function Does Not Operate
KEY REMINDER FUNCTION DOES NOT OPERATEDescription
NOTE:
- Before performing the diagnosis in the following table, check "Work Flow". Refer to DLK-8, "Work Flow". Diagnosis and Repair Workflow
- Understand the operation when does it work, refer to DLK-47, "System Description". Key Reminder Function
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
CONDITIONS OF VEHICLE (OPERATING CONDITIONS)
- Door lock and unlock operation and trunk open operation are normal.

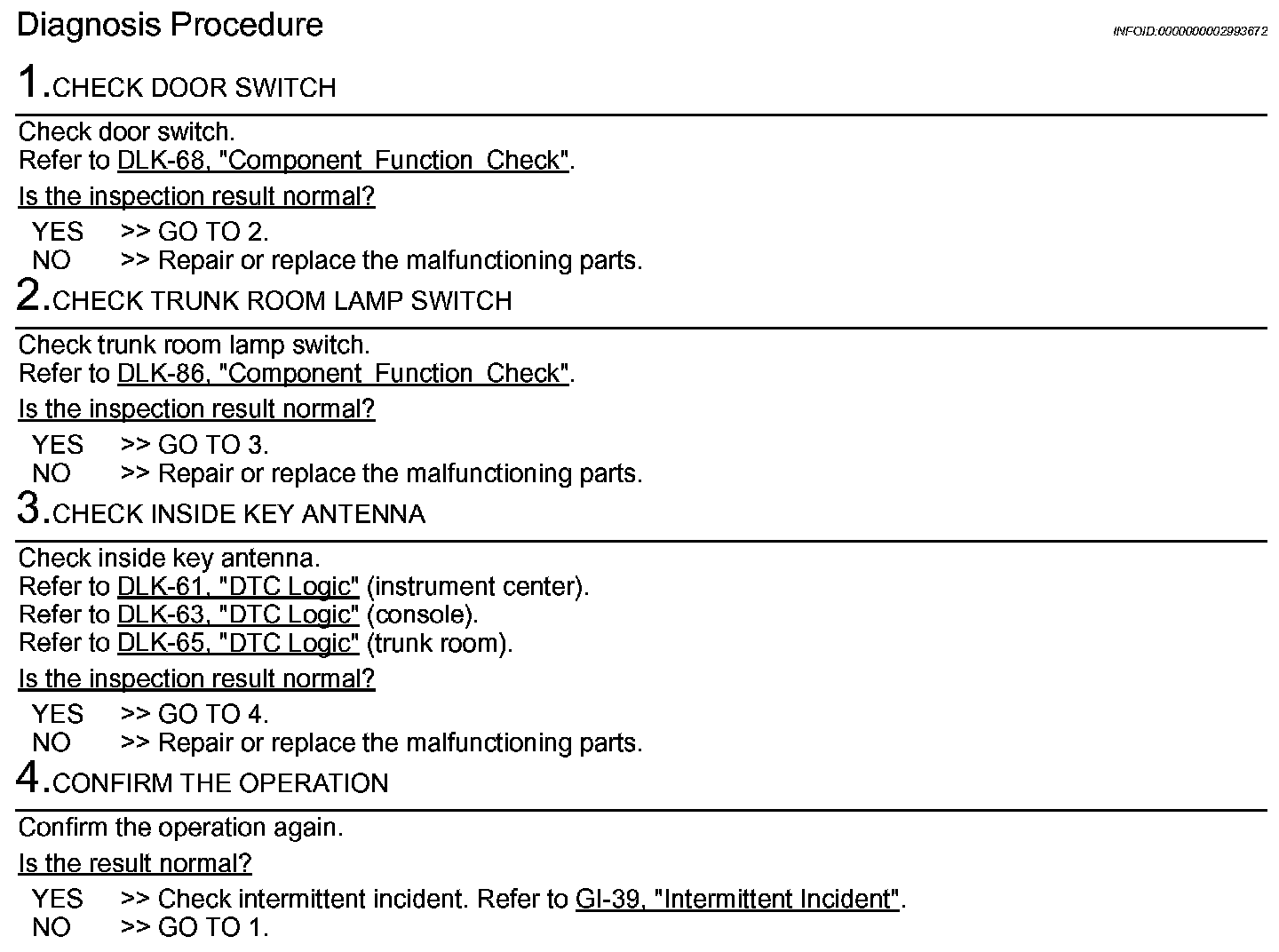

Diagnosis Procedure
