Manual Transmission/Transaxle

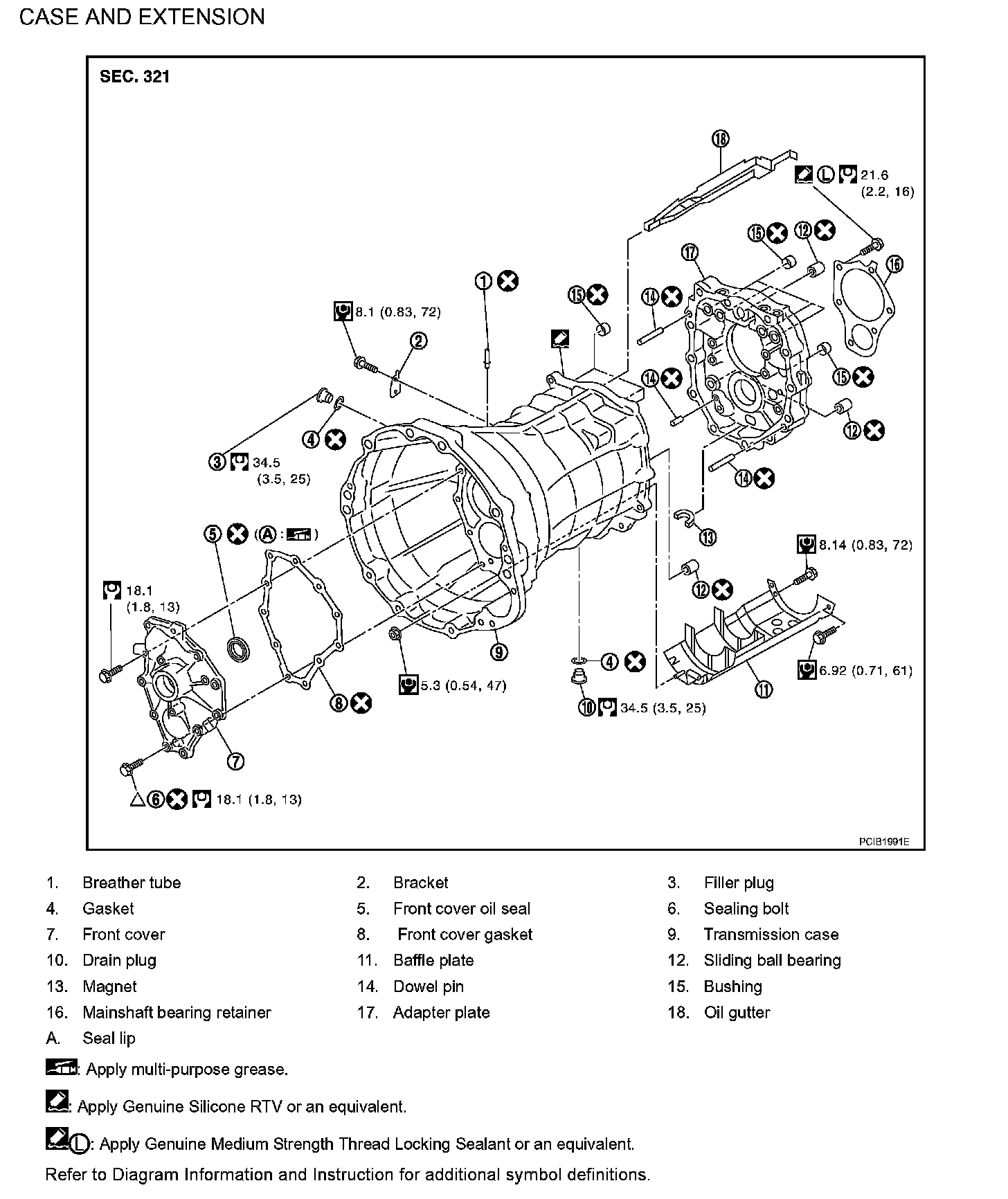

CASE AND EXTENSION

TM-30 Exploded View (Part 1):




TM-30 Exploded View (Part 2):




TM-30 Exploded View (Part 3):

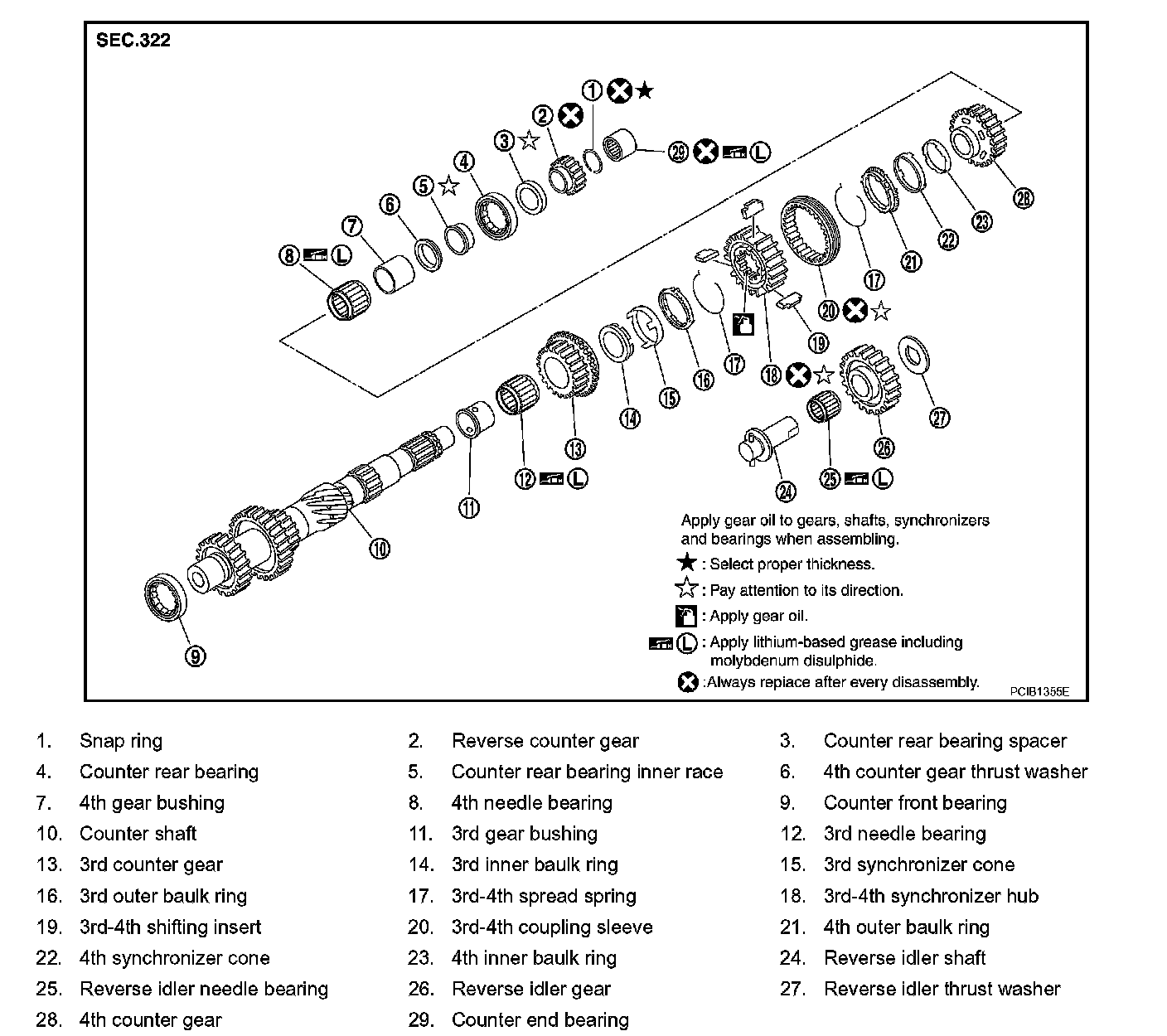

SHAFT AND GEAR

TM-32 Exploded View (Part 1):




TM-32 Exploded View (Part 2):

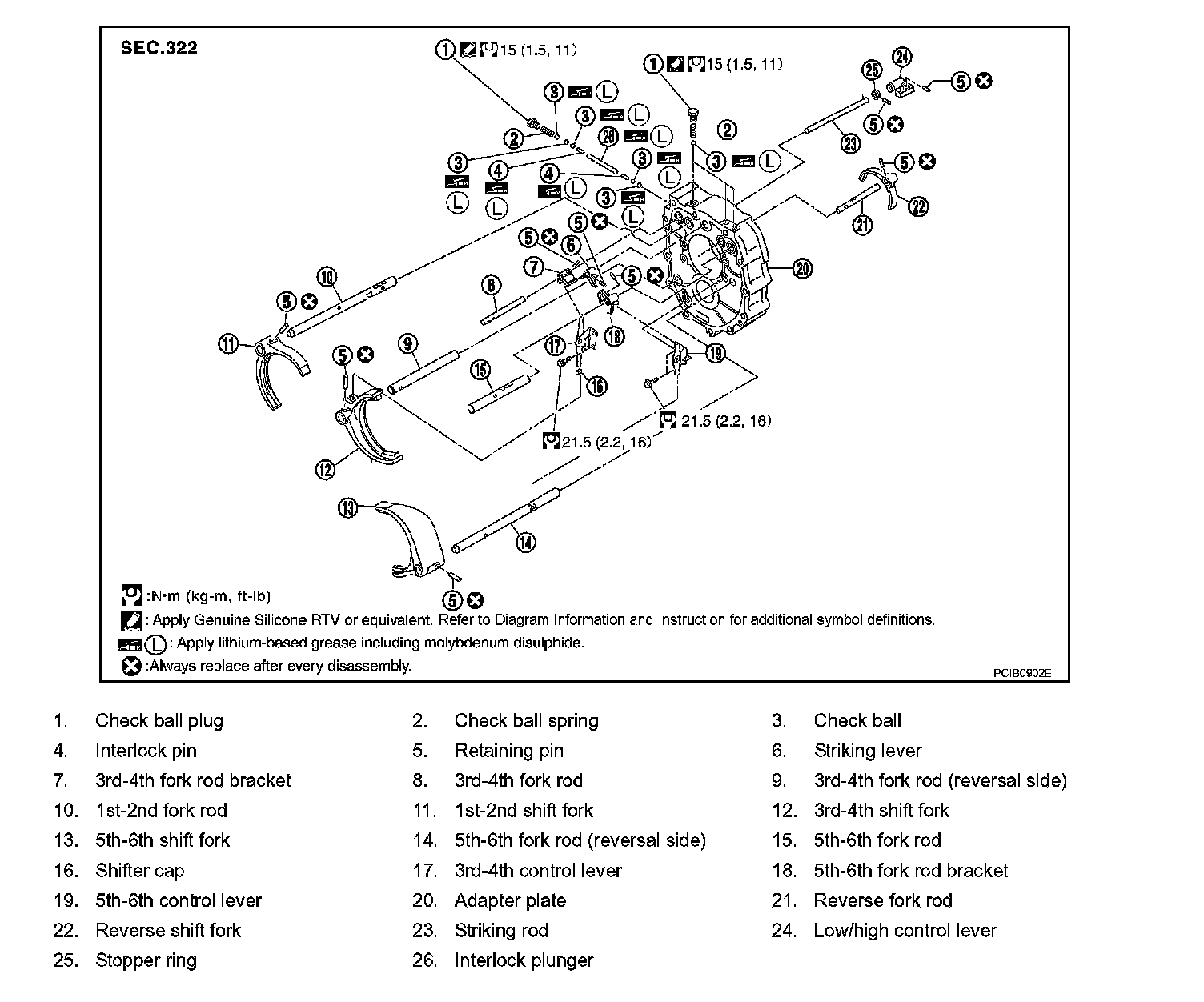

SHIFT FORK AND FORK ROD

TM-34 Exploded View (Part 1):




TM-34 Exploded View (Part 2):
