Control Assembly: Service and Repair

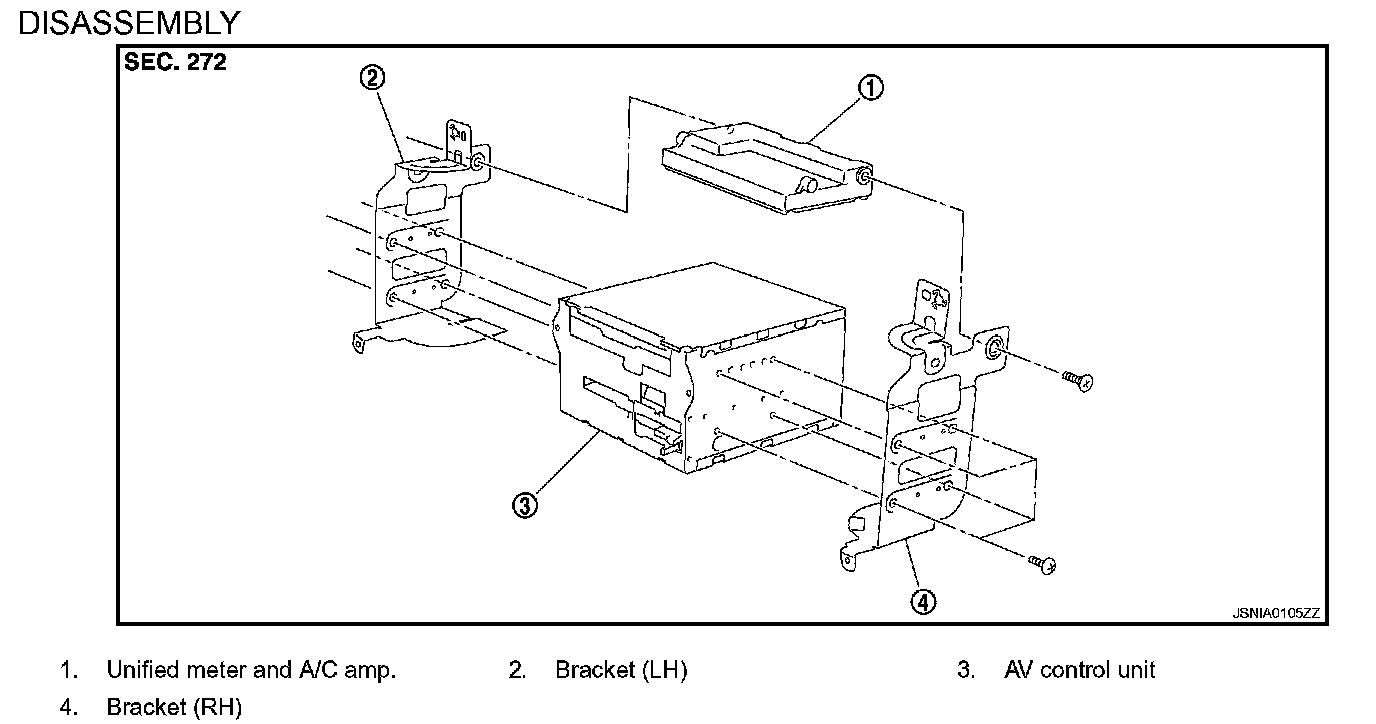

AUTO AMP.DISASSEMBLYRemoval and InstallationREMOVAL 1.
Remove AV control unit.
2.

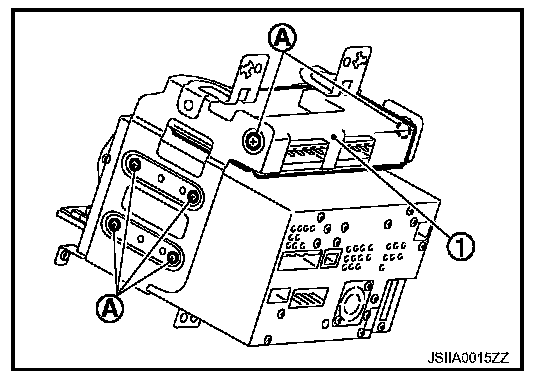

Remove mounting screws (A), and then remove unified meter and A/C amp. (1).
INSTALLATIONInstallation is basically the reverse order of removal.
CAUTION: Since unified meter and A/C amp. connector and AV control unit connector have the same form, be careful not to insert them wrongly.
