Ignition Coil: Service and Repair

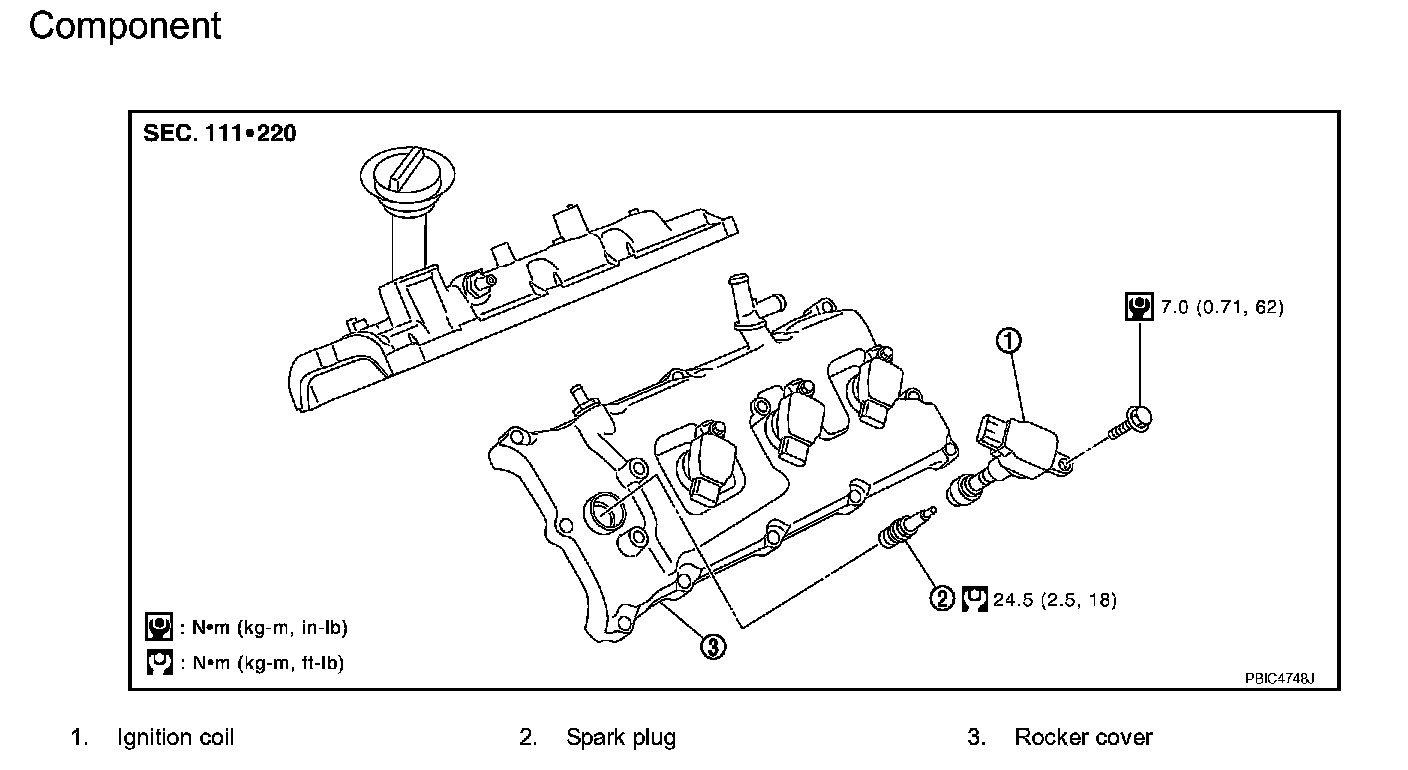

Removal and Installation EM-187 Component:
REMOVAL 1.
Remove engine room cover (RH and LH).
2.
Remove engine cover with power tool.
3.
Remove air duct (inlet), air cleaner case and air duct and resonator assembly.
4.
Disconnect harness connector from
ignition coil.
5.
Remove
ignition coil.
CAUTION: Never shock ignition coil.INSTALLATION Installation is the reverse order of removal.
