Cylinder Head Distortion

Cylinder Head Distortion

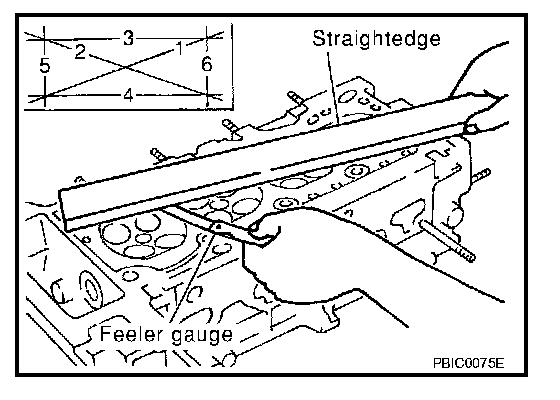

At each of several locations on bottom surface of cylinder head, measure the distortion in six directions.
Limit 0.1 mm (0.004 in)
If it exceeds the limit, replace cylinder head.
