Oil Pan, Engine

EM-183 Component:

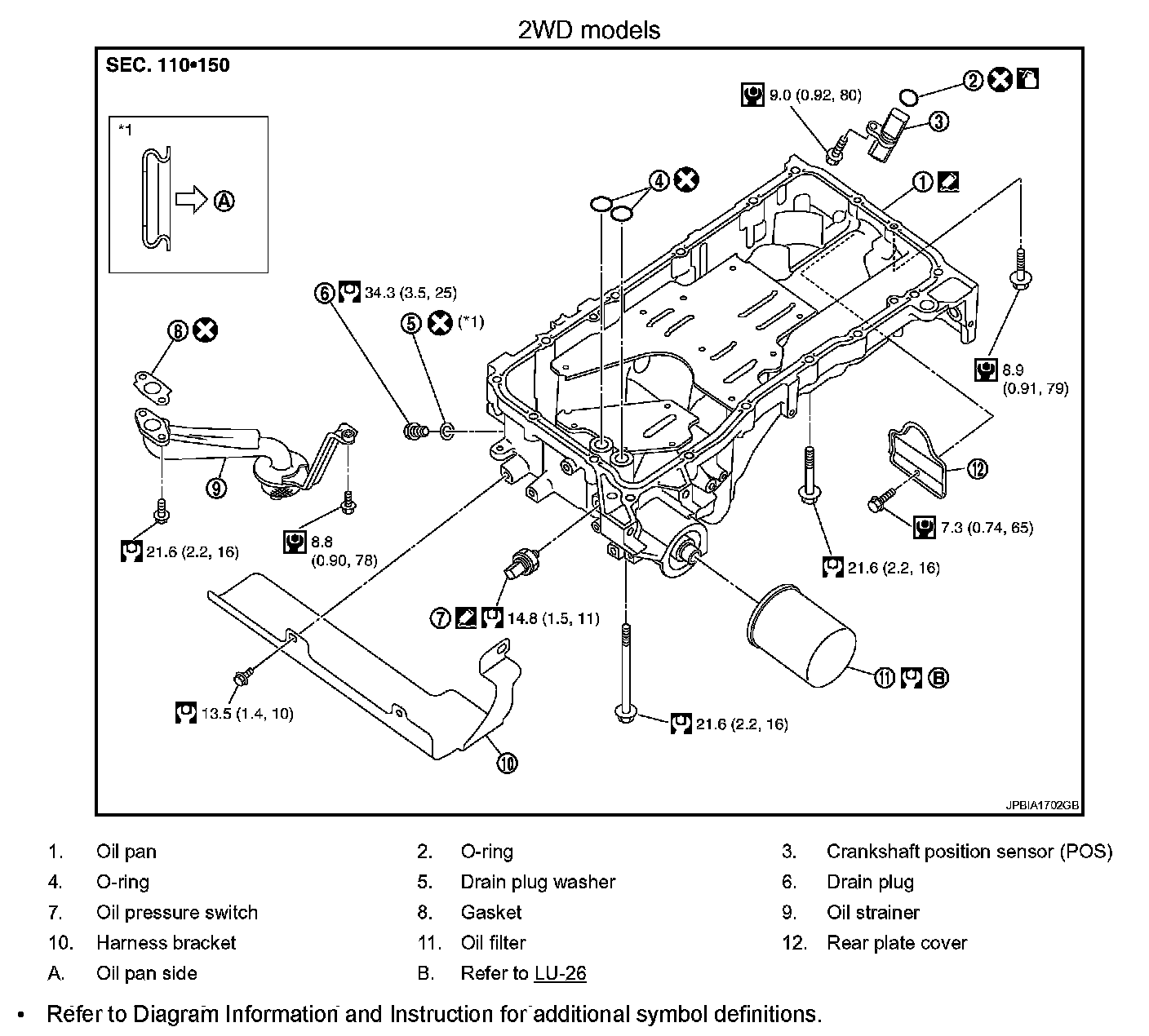

Oil Pan
Install oil pan.

CAUTION: Install avoiding misalignment of O-rings.

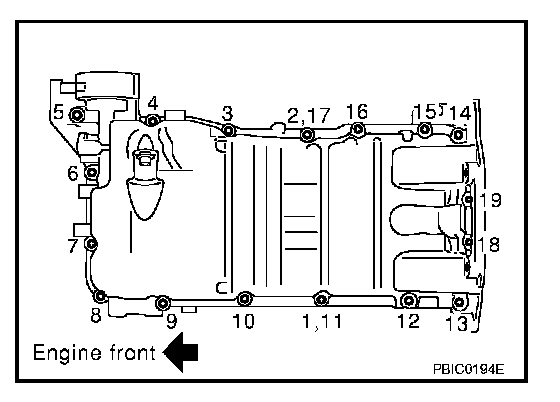

Tighten mounting bolts in numerical order as shown in the figure.

NOTE: Tighten mounting bolts No. 1 and 2 in two steps. The numerical order No. 11 and 17 shown second steps.

There are three types of mounting bolts. Refer to the following for locating bolts.
M6 � 30 mm (1.18 in) 18, 19
M8 � 100 mm (3.94 in) 5, 9
M8 � 45 mm (1.77 in) Except the above
