Reference Value

VALUES ON THE DIAGNOSIS TOOL

CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event that the output circuit (harness) is open or short-circuited.

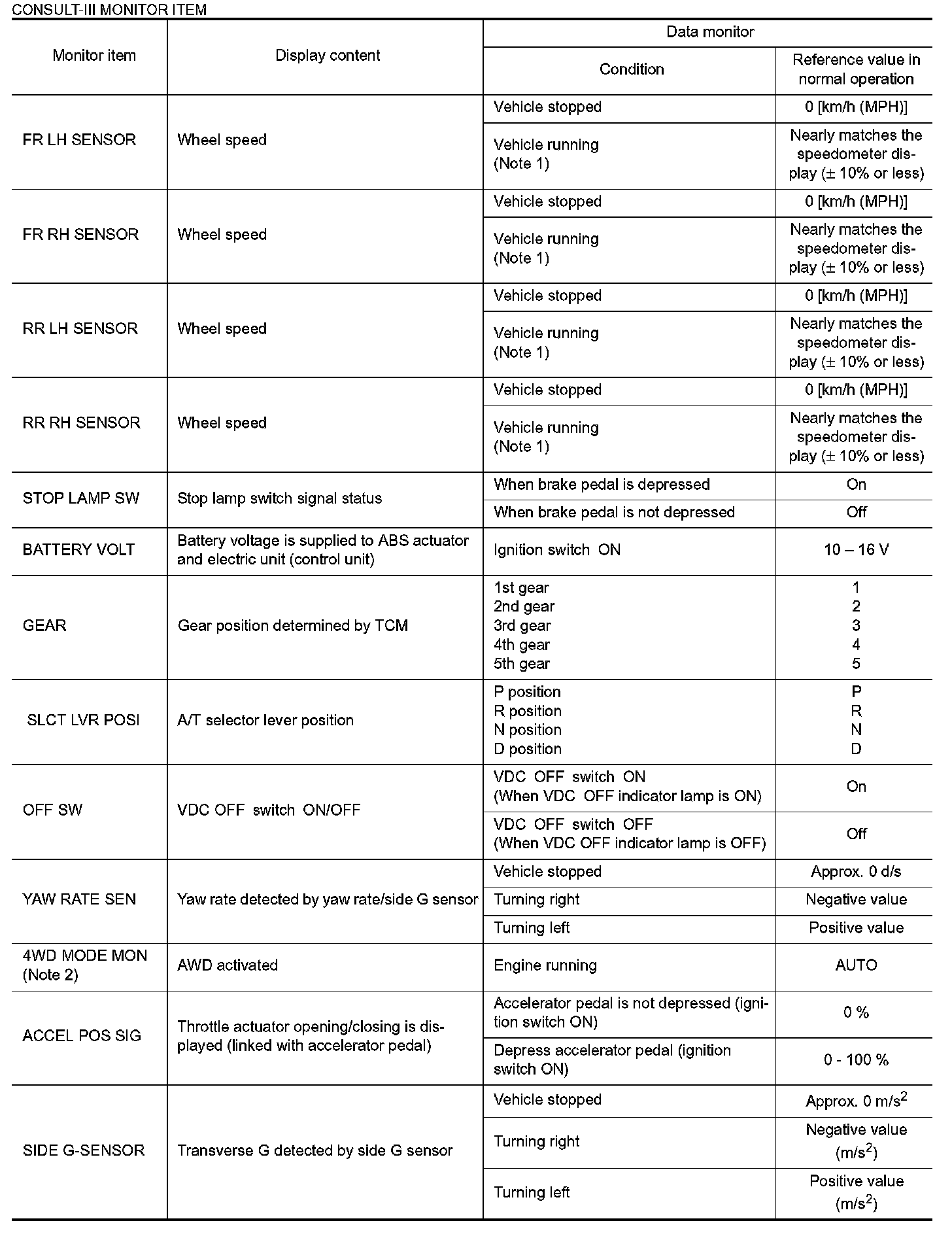

CONSULT-III MONITOR ITEM (Part 1):

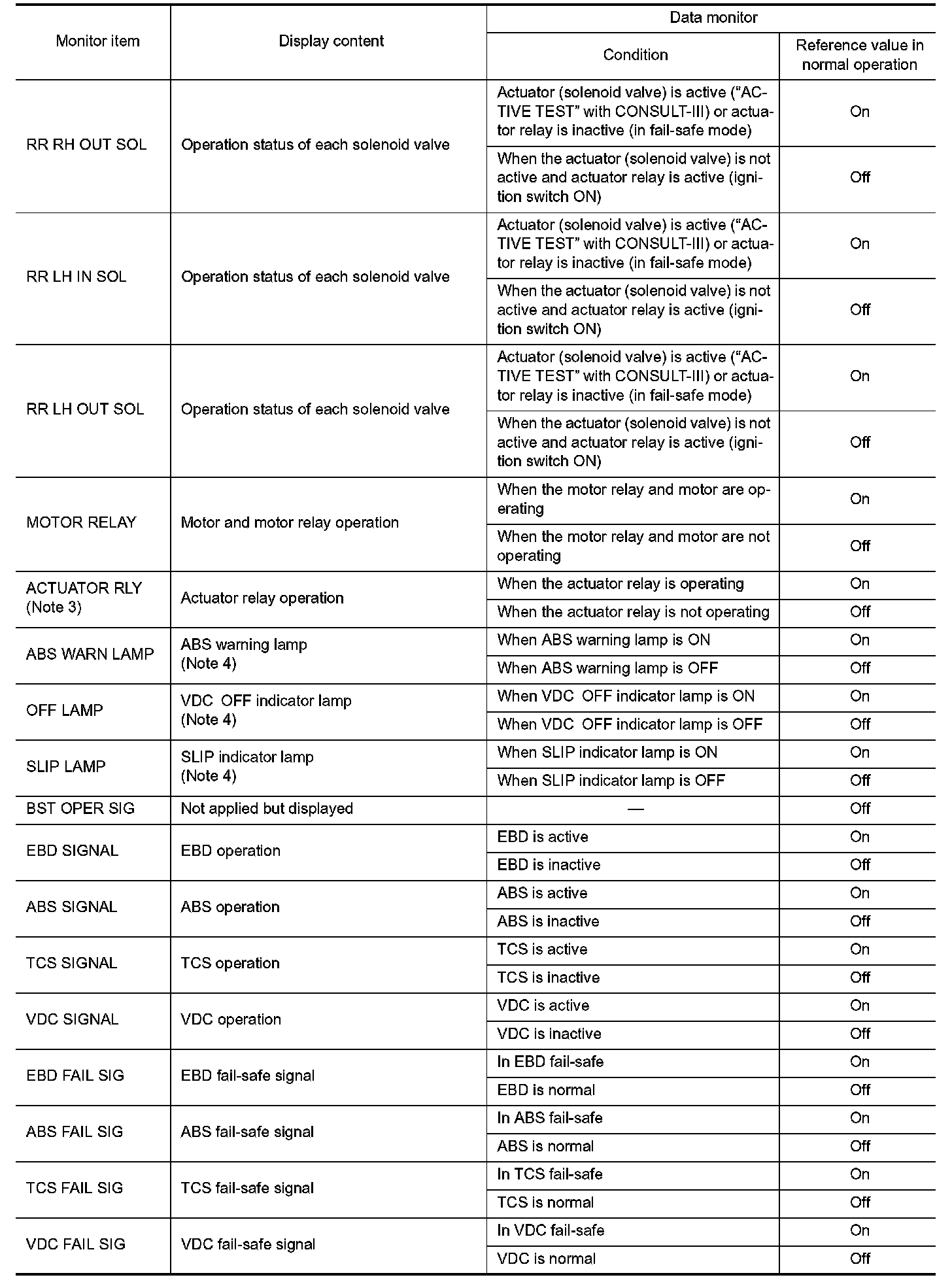

CONSULT-III MONITOR ITEM (Part 2):

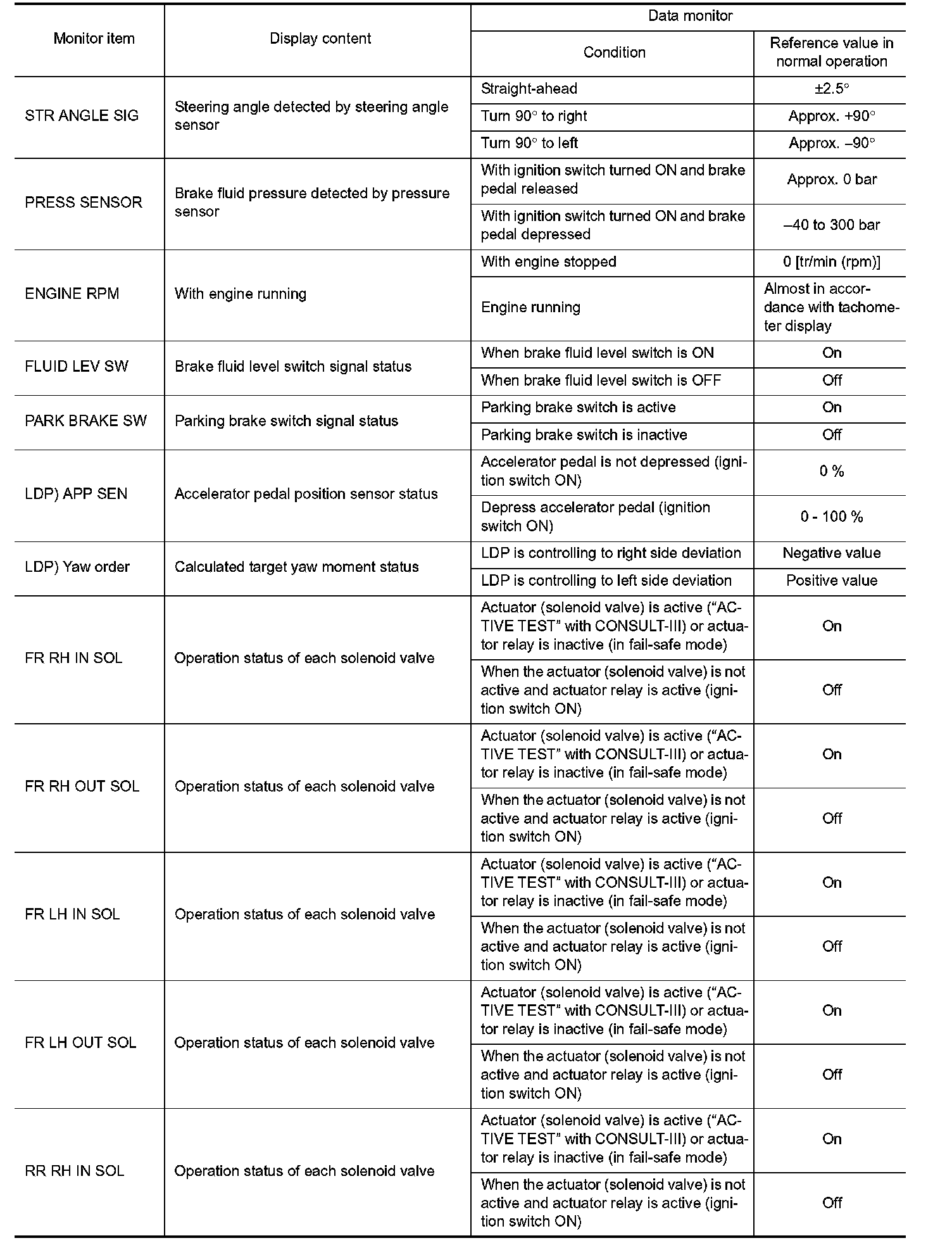

CONSULT-III MONITOR ITEM (Part 3):

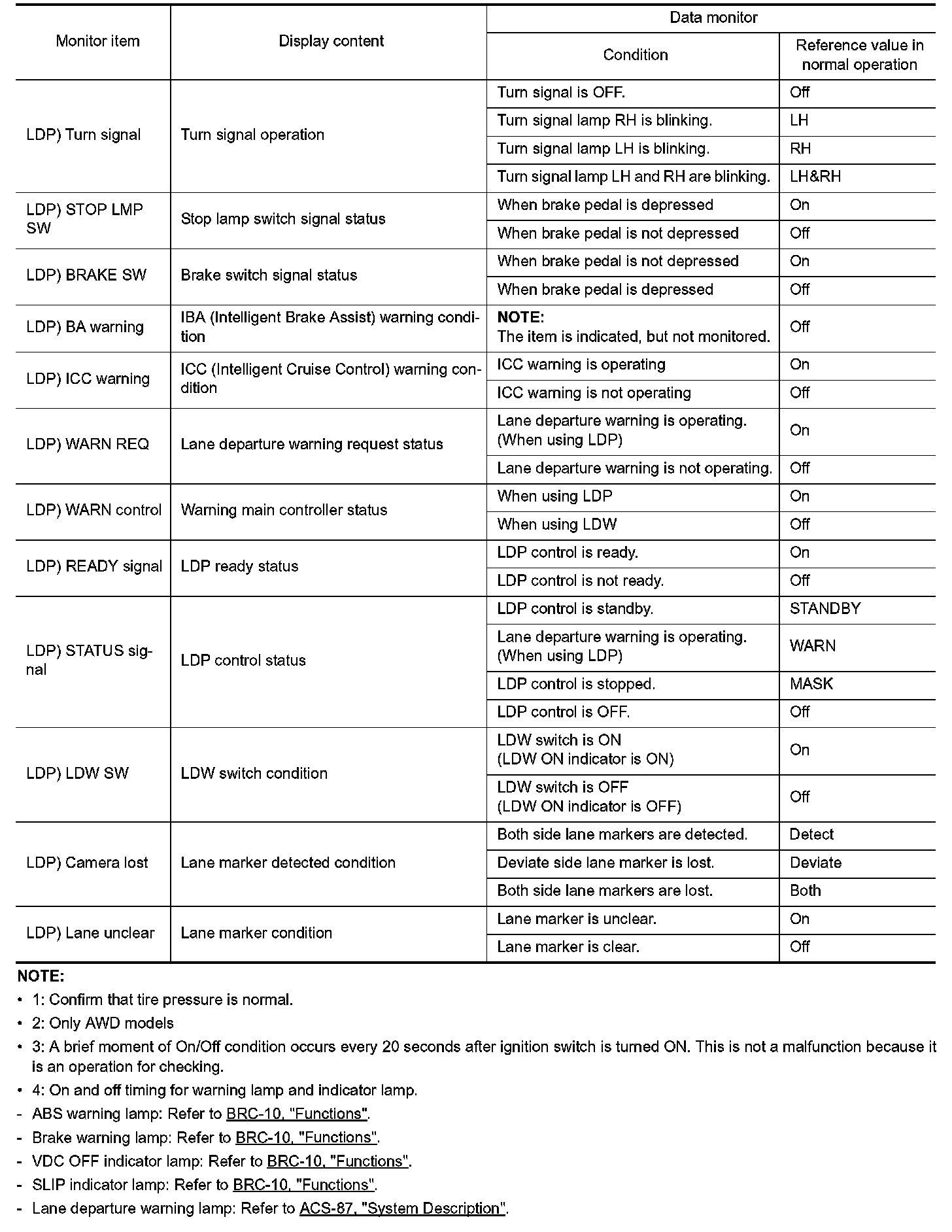

CONSULT-III MONITOR ITEM (Part 4):

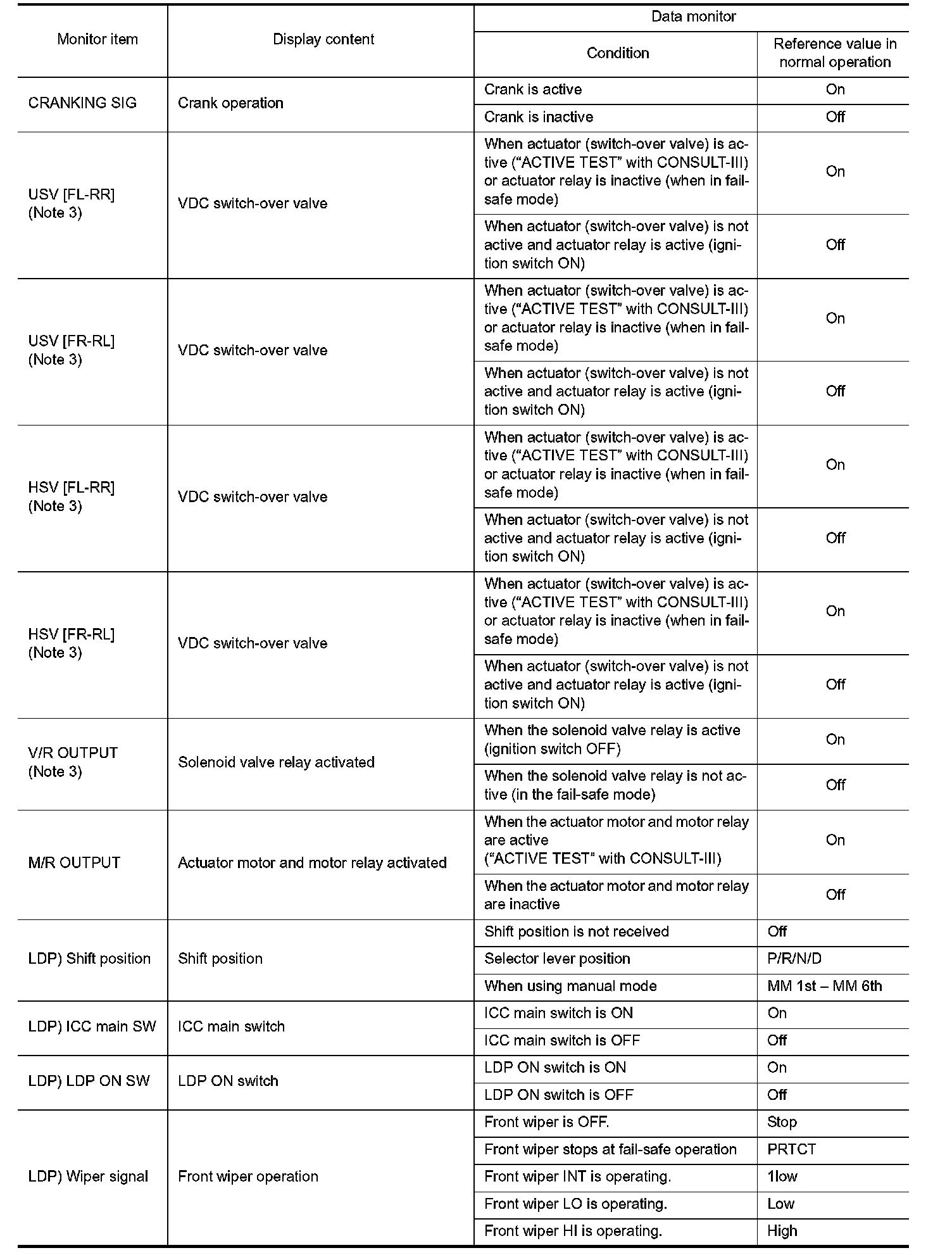

CONSULT-III MONITOR ITEM (Part 5):
