Cruise Control Switch: Service and Repair

ICC STEERING SWITCH

Removal and Installation

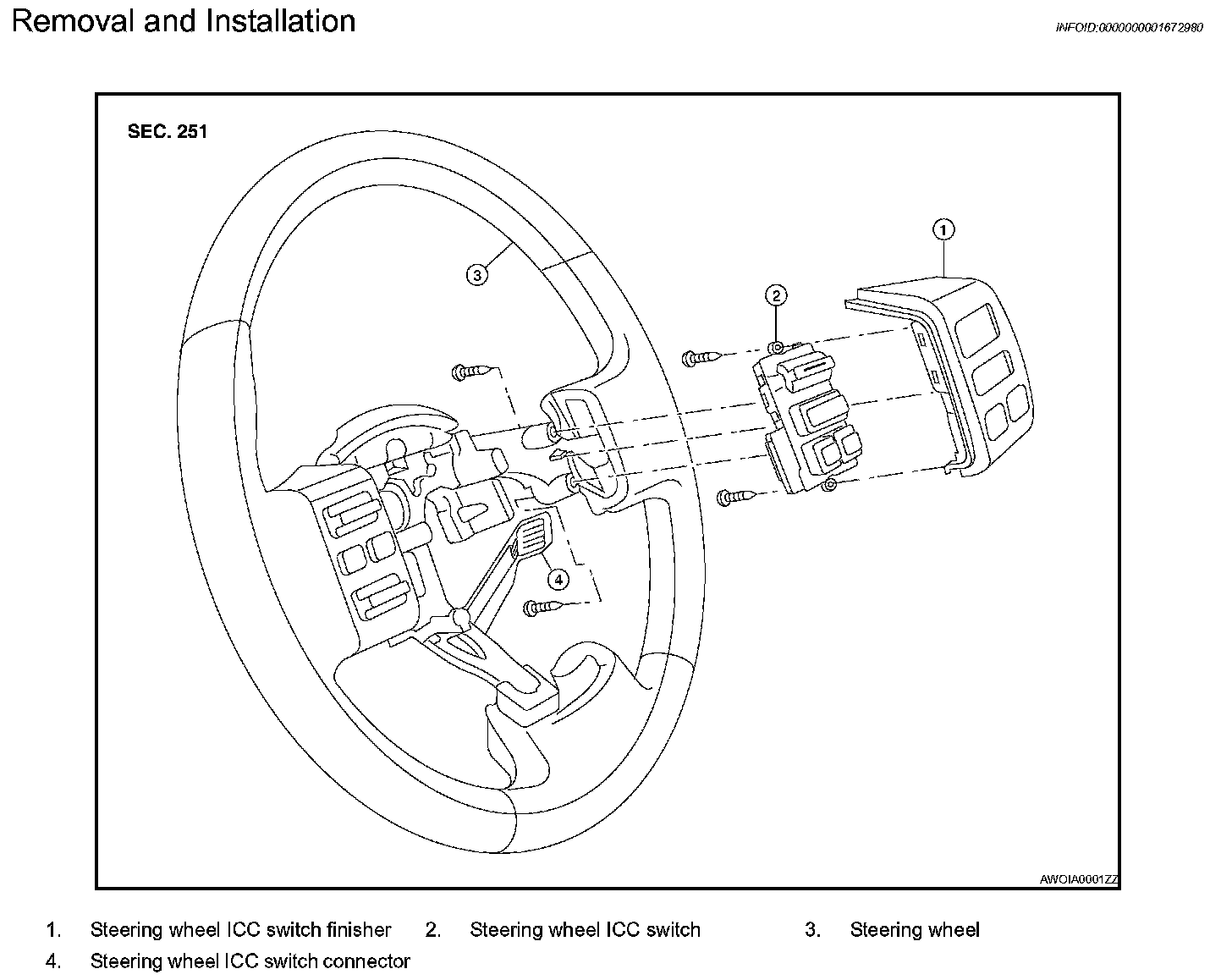

CCS-71 Exploded View:

REMOVAL
1. Remove the steering wheel.
2. Remove the steering wheel rear cover.
3. Pull the steering wheel ICC switch out of the steering wheel, disconnect the steering wheel ICC switch connector.
4. Remove the steering wheel ICC switch finisher screws and remove the steering wheel ICC switch finisher.

INSTALLATION
Installation is in the reverse order of removal.
