Battery Current Sensor: Description and Operation

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

System Diagram






System Description
Power generation variable voltage control system has been adopted. By varying the voltage to the generator, engine load due to power generation of the generator is reduced and fuel consumption is decreased.

NOTE: When any malfunction is detected in the power generation variable voltage control system, power generation is performed according to the characteristic of the IC regulator in the generator.

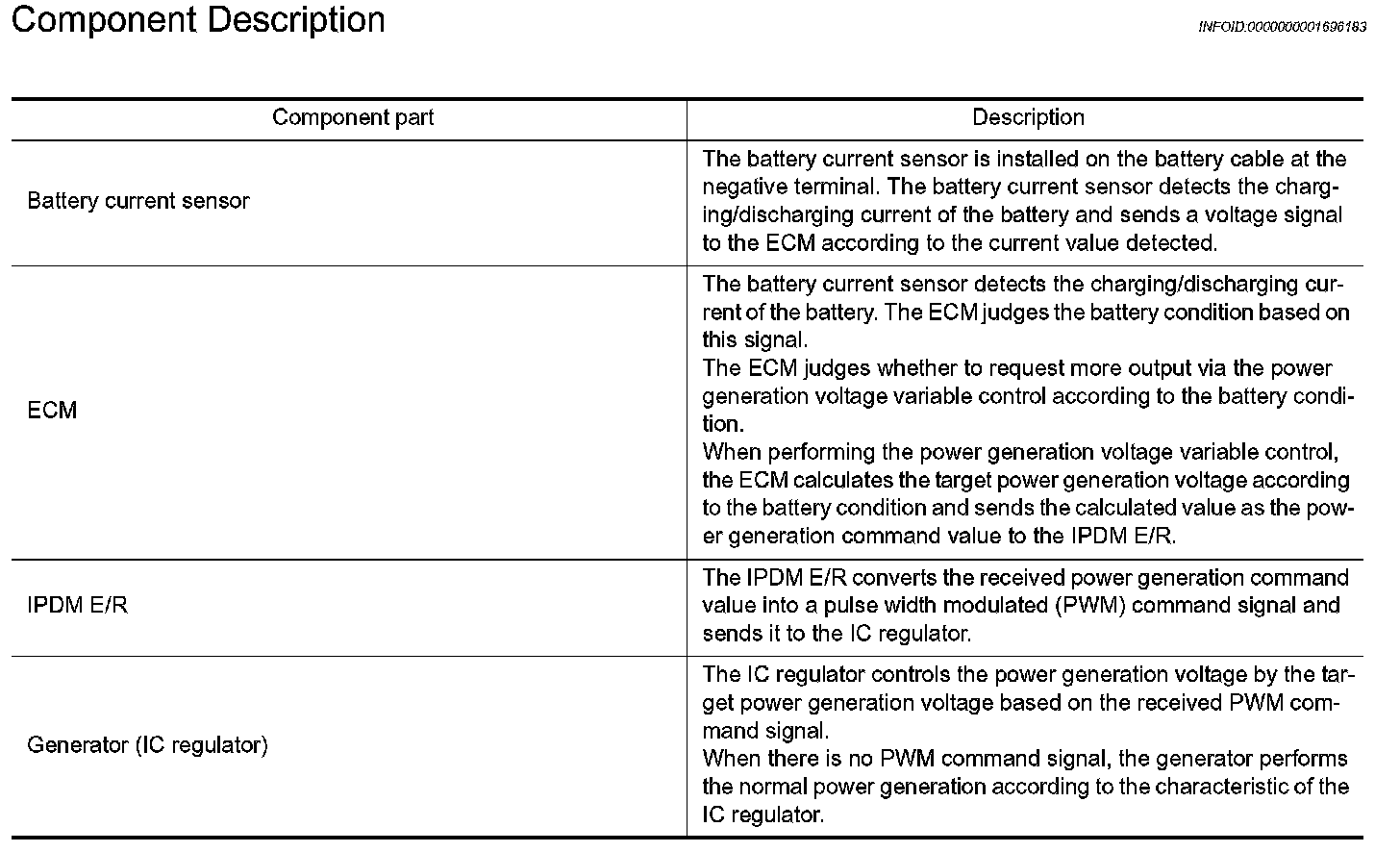

Component Description
