Diagnostic Code Chart

Trouble Diagnosis with CONSULT-III

DIAGNOSTIC CODE CHART

NOTE: Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp or CONSULT-III each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

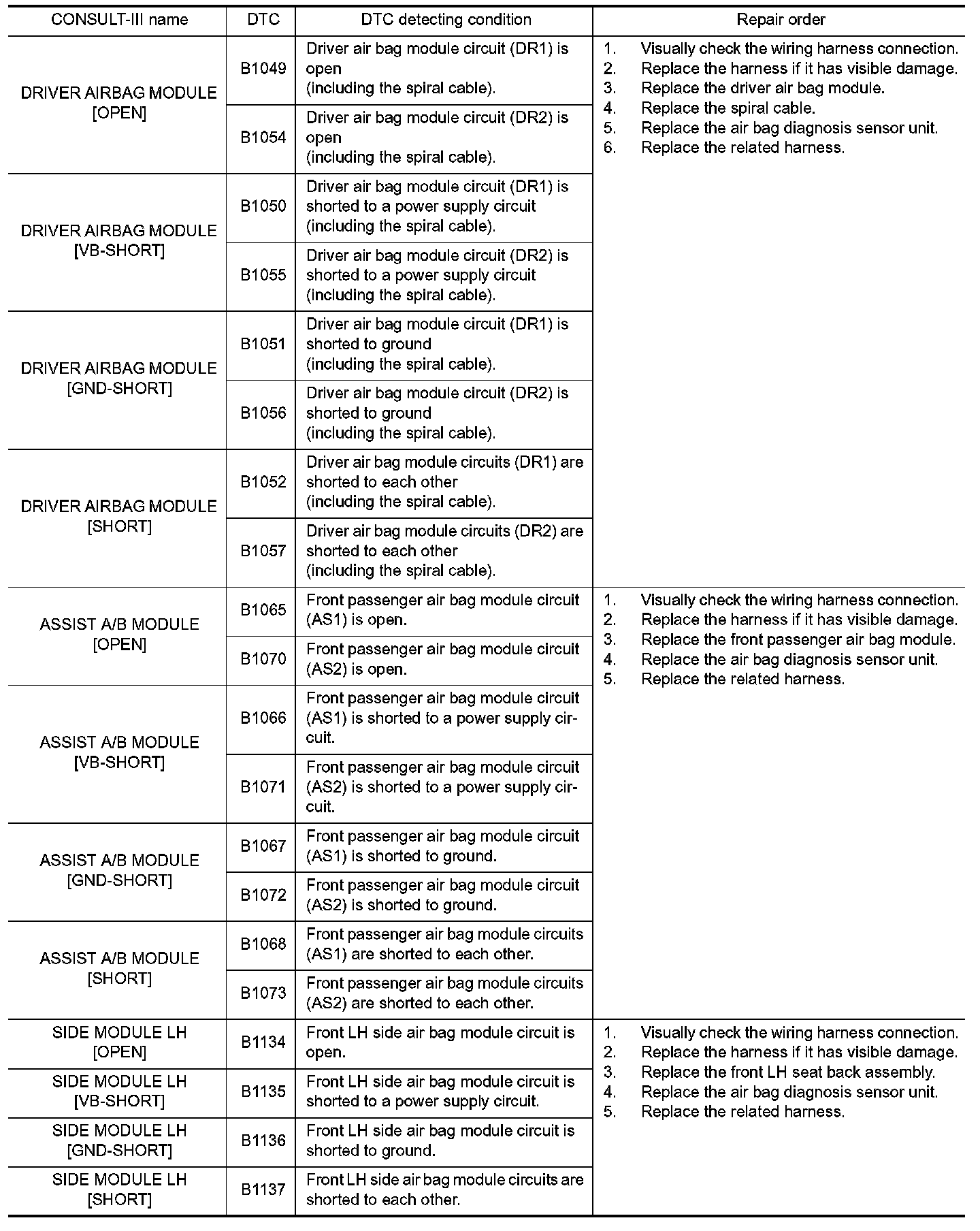

Diagnostic Code Chart (Part 1):

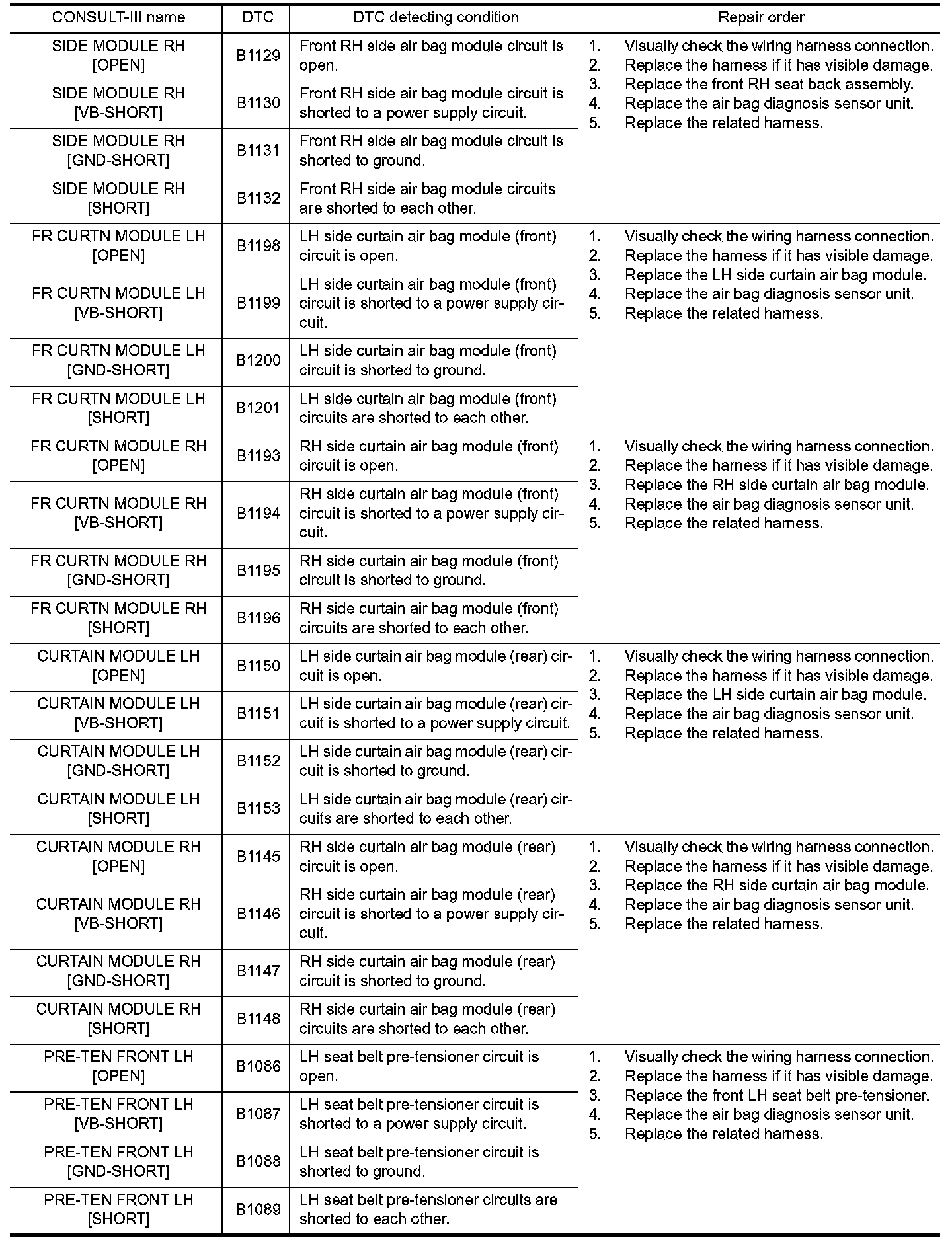

Diagnostic Code Chart (Part 2):

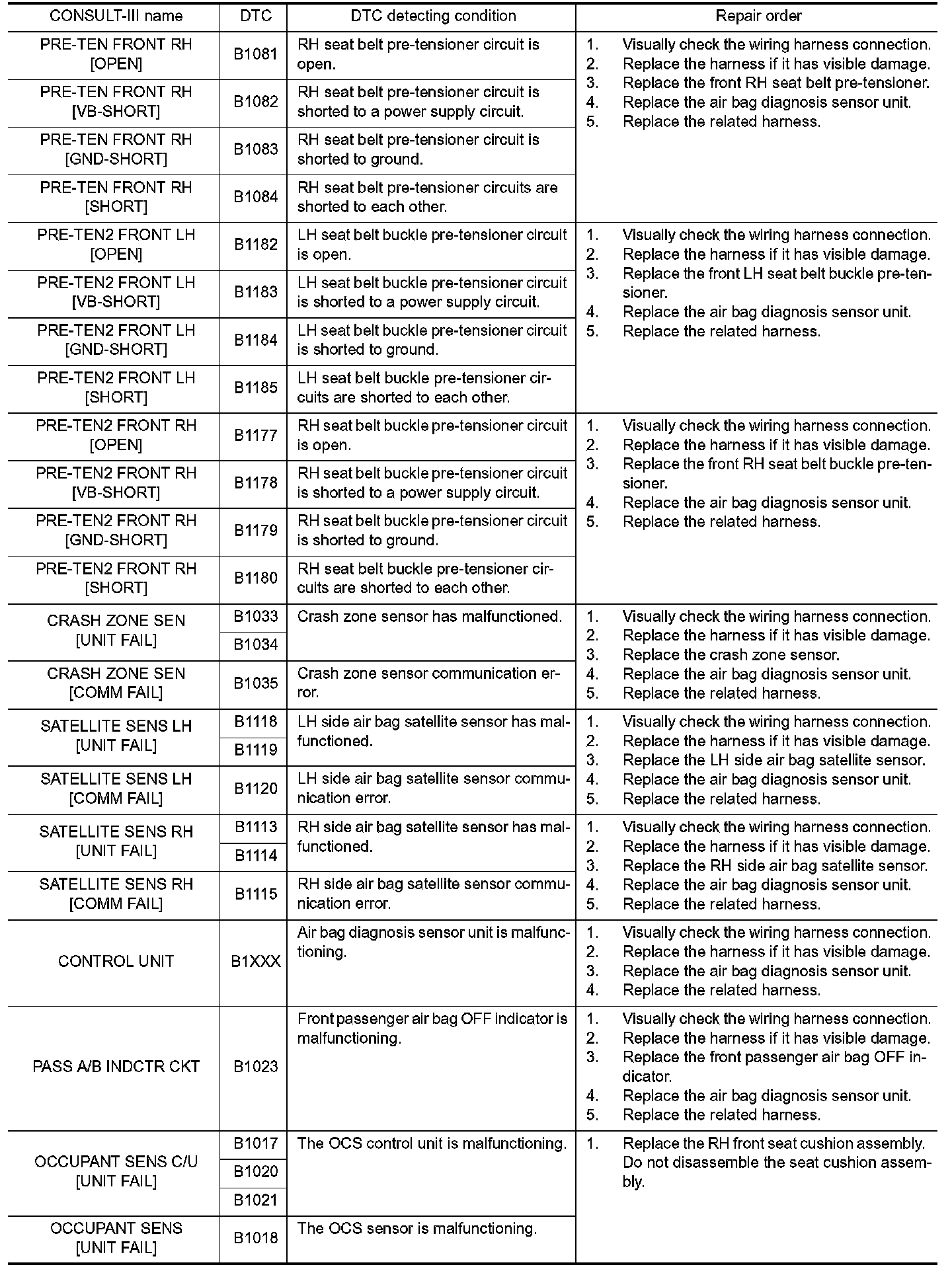

Diagnostic Code Chart (Part 3):

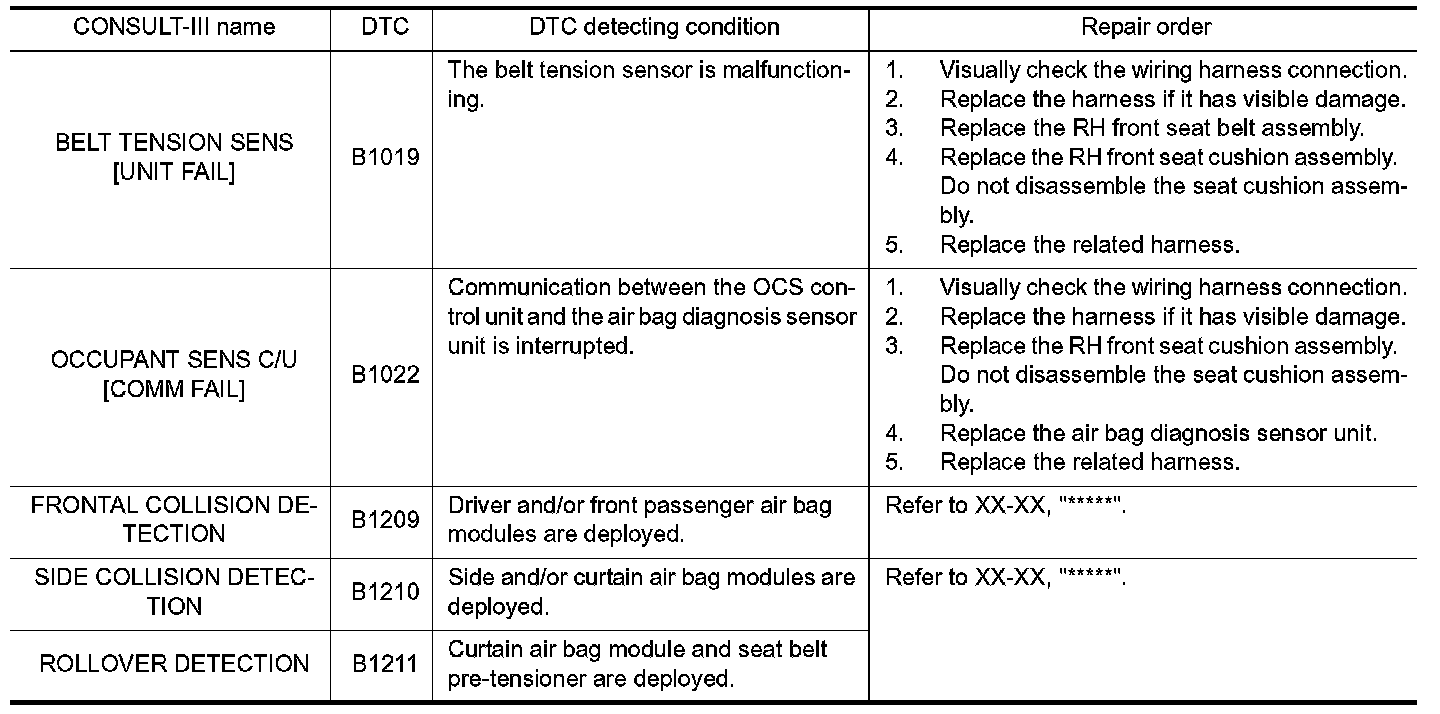

Diagnostic Code Chart (Part 4):
