Scan Tool Testing and Procedures

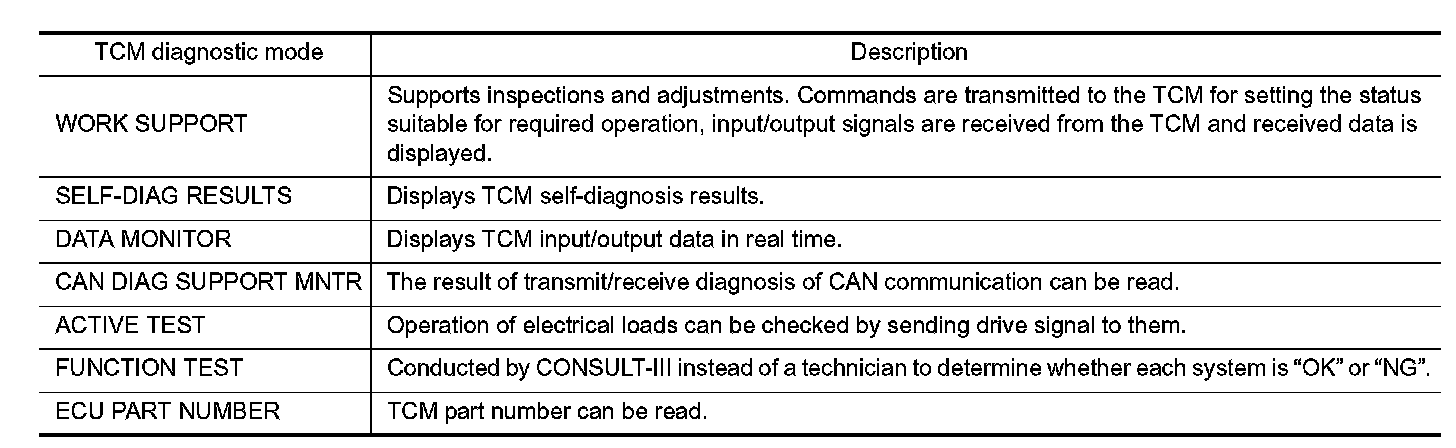

CONSULT-III Function (TRANSMISSION)CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
SELF-DIAGNOSTIC RESULT MODE
Operation Procedure
After performing SELF-DIAGNOSTIC RESULT MODE, place check marks for results on the TM-7, "Diagnostic Work Sheet". Diagnostic Work Sheet
Reference pages are provided following the items.

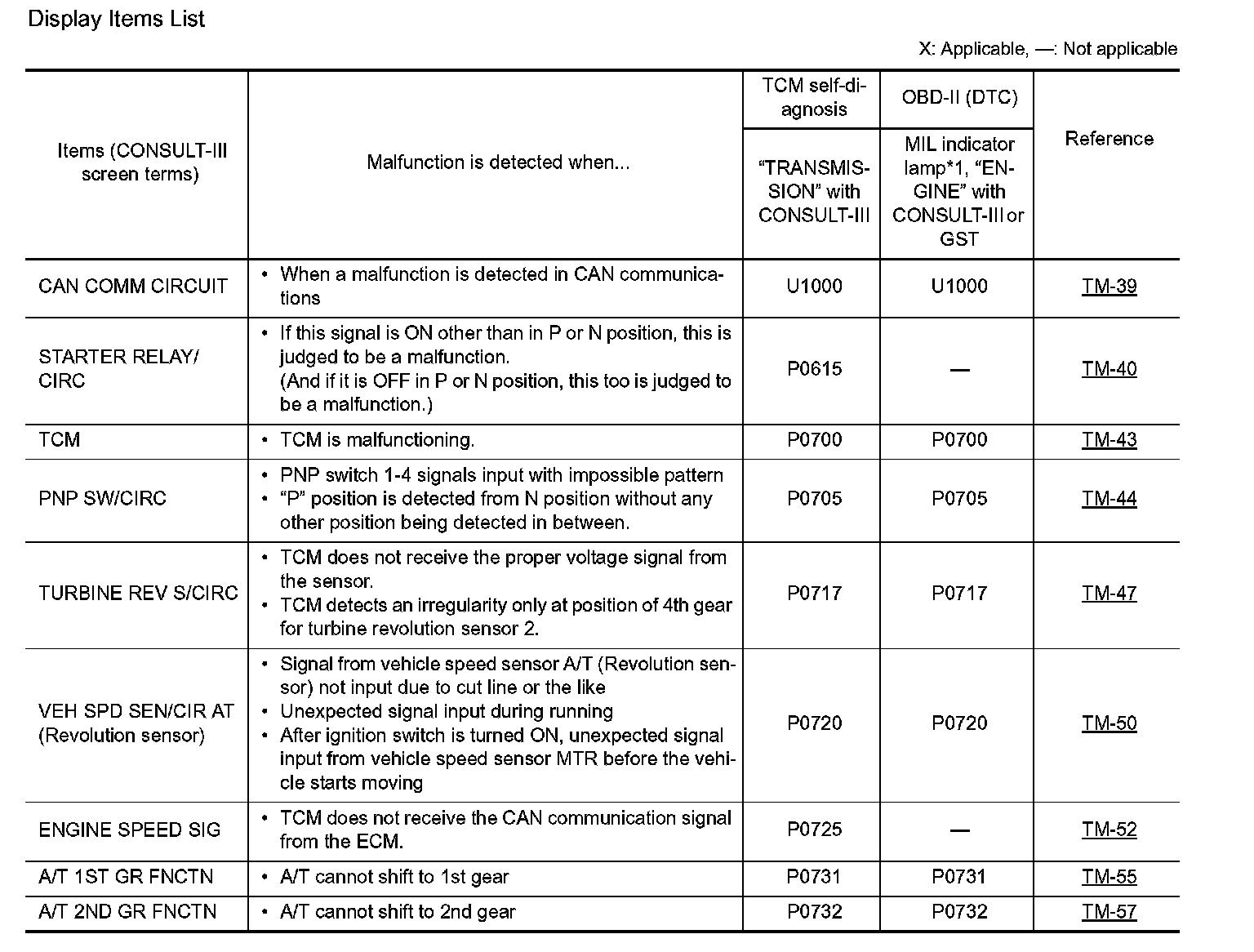

Display Items List (Part 1):

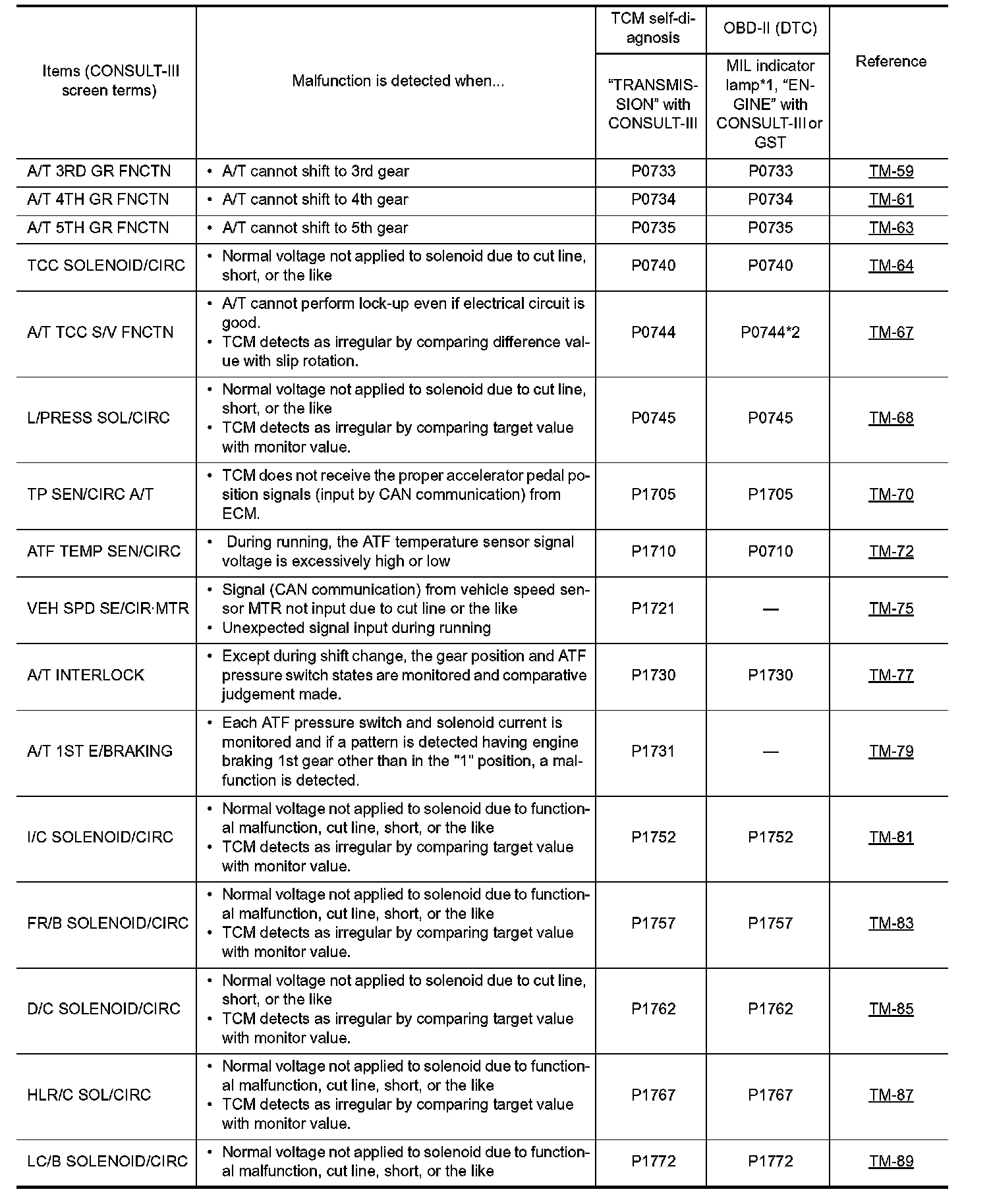

Display Items List (Part 2):

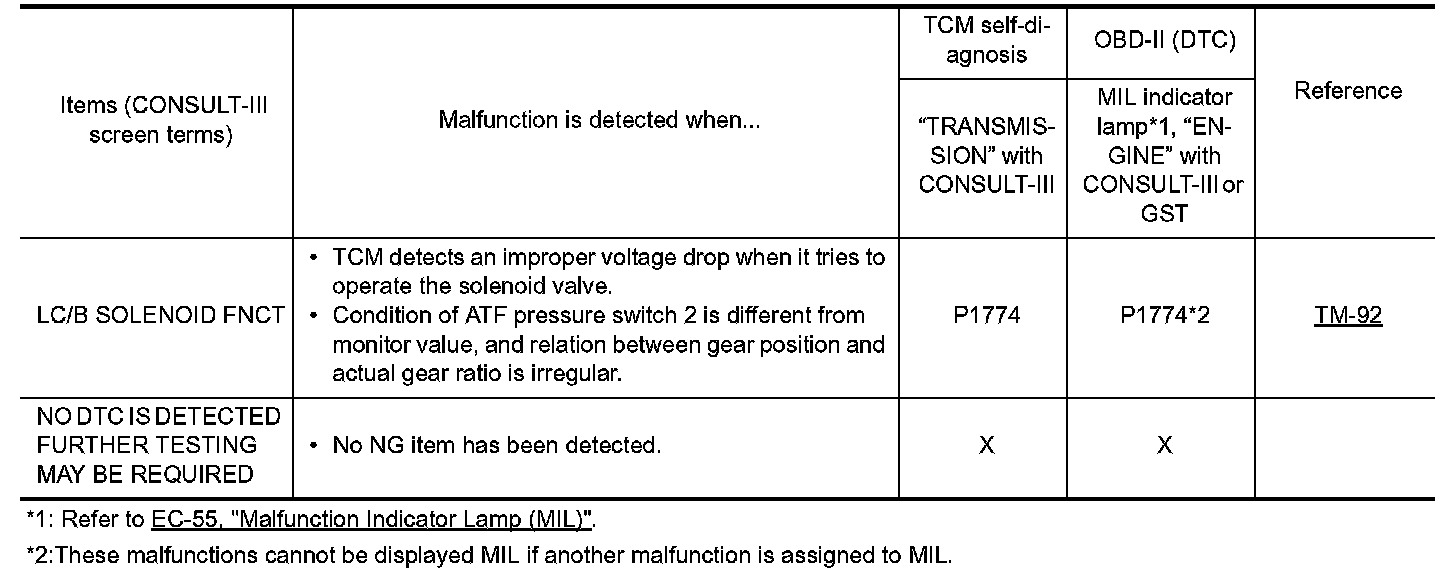

Display Items List (Part 3):
DATA MONITOR MODE
Display Items List (Part 1):

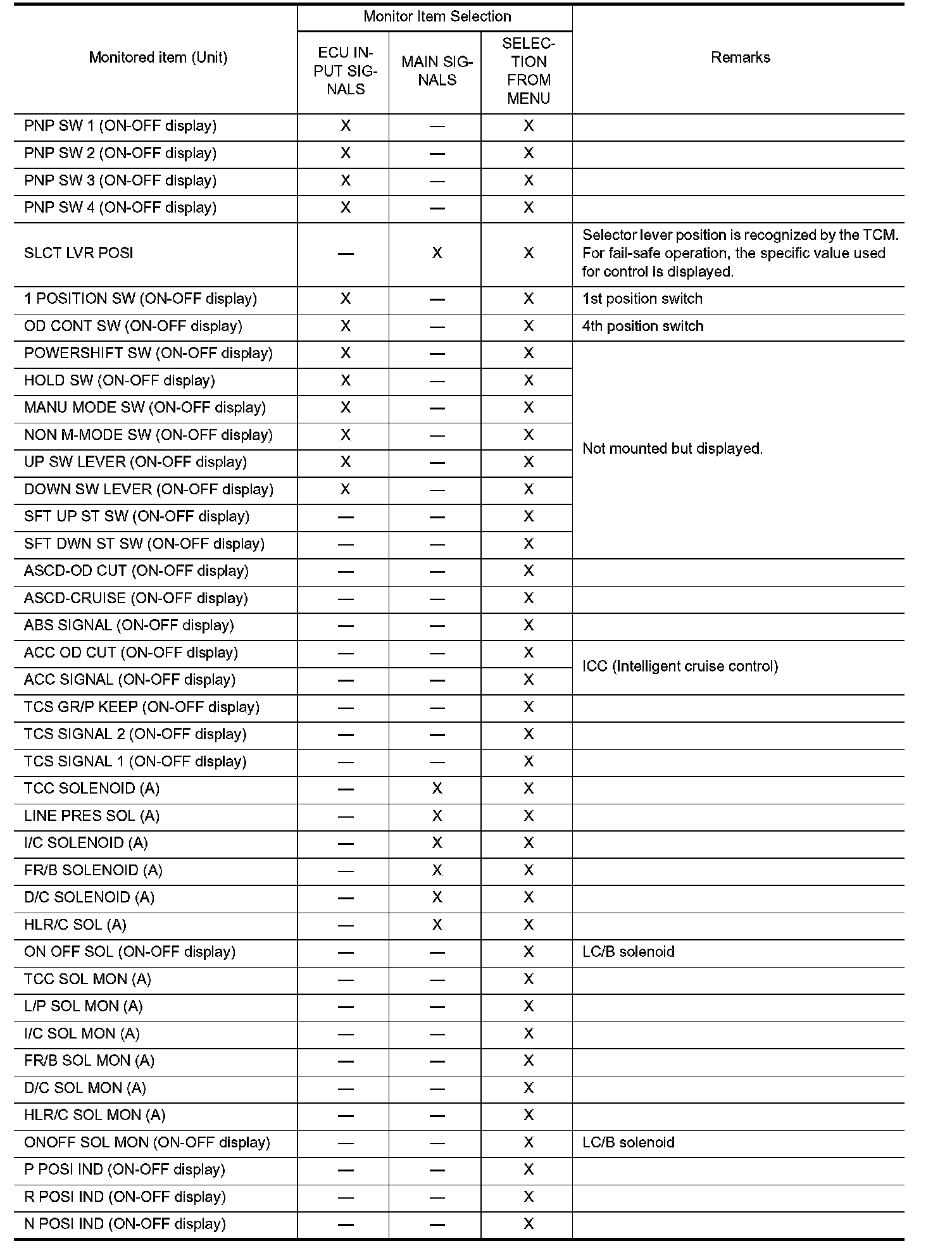

Display Items List (Part 2):

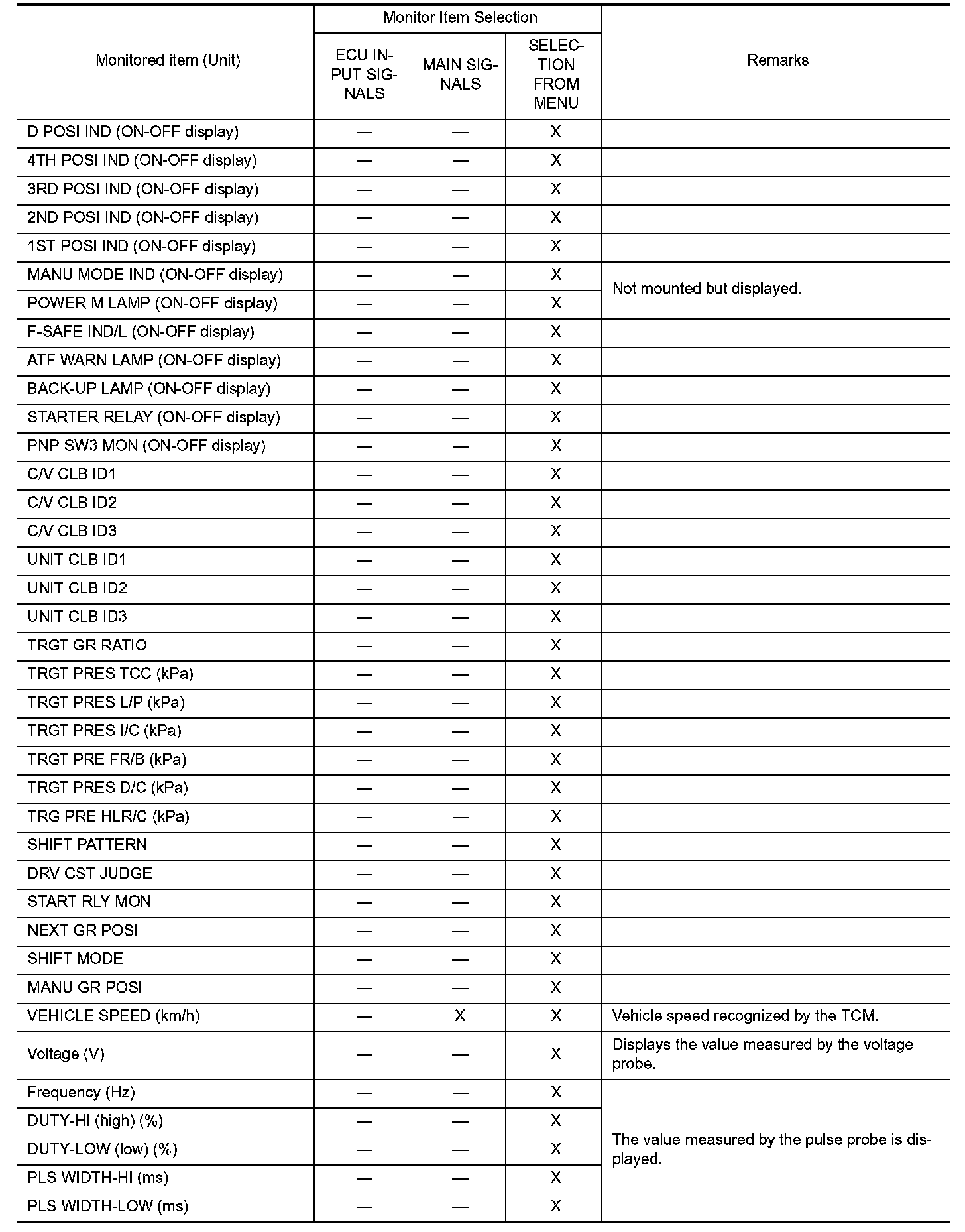

Display Items List (Part 3):
DTC WORK SUPPORT MODE

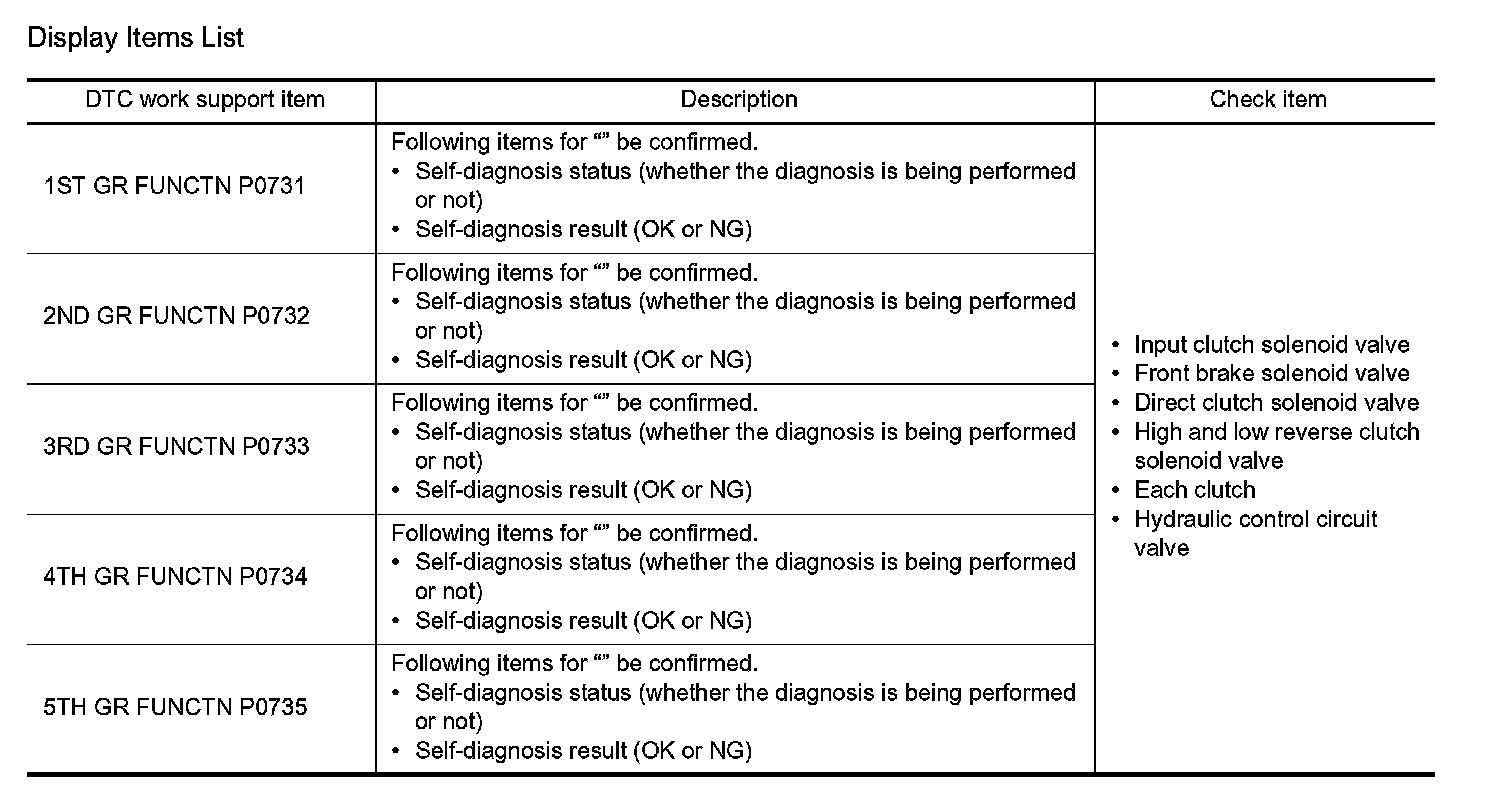

Display Items List:
