System Specifications

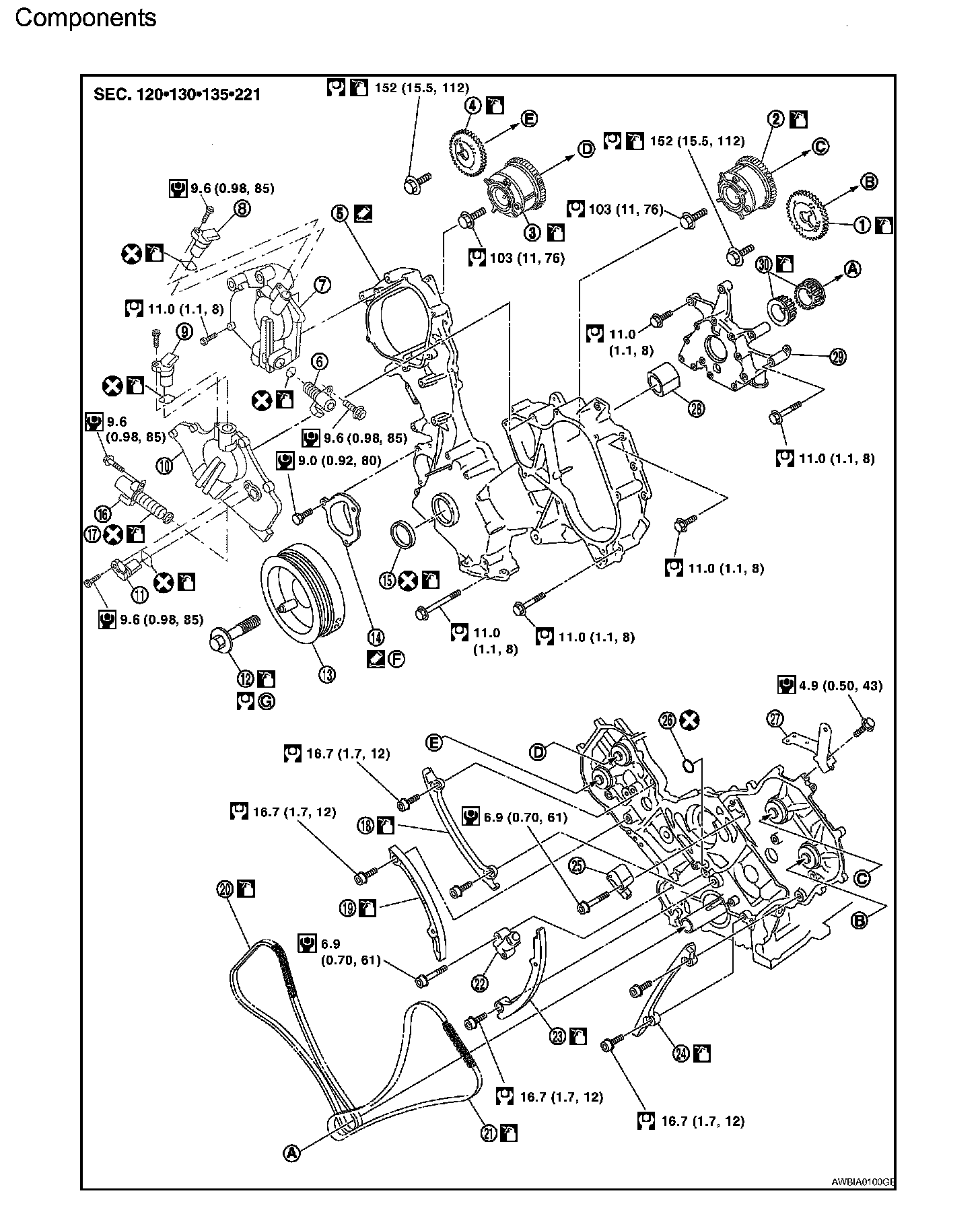

EM-42 Components (Part 1):

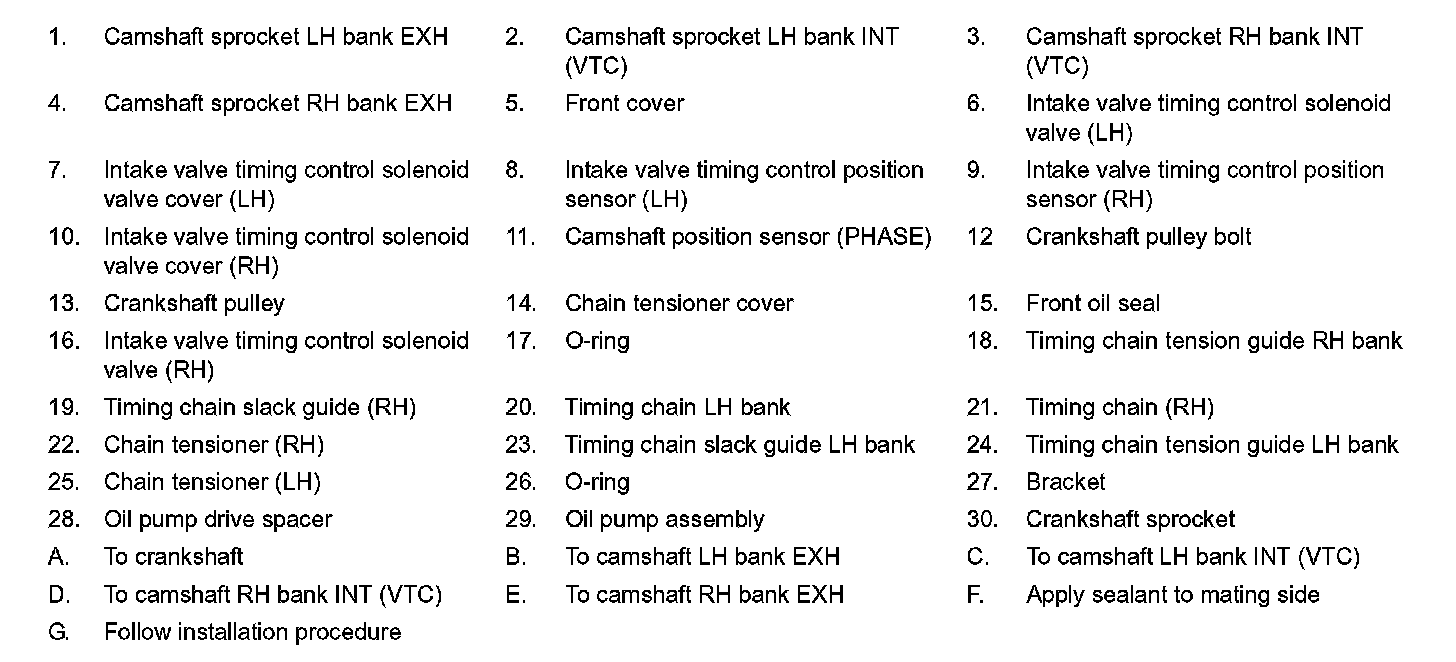

EM-42 Components (Part 2):

Timing Chain Tensioner

Crankshaft Pulley

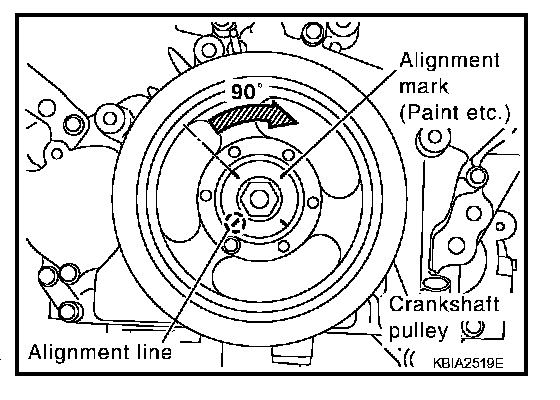

Select the one most visible notch of the four on the bolt flange. Corresponding to the selected notch, put a alignment mark (such as paint) on the crankshaft pulley.
Crankshaft pulley bolt torque
Step 1 93.1 Nm (9.5 kg-m, 69 ft-lb)
Step 2 additional 90° (angle tightening)
Rotate the crankshaft pulley in normal direction (clockwise when viewed from engine front) to check for parts interference.

Timing Cover

EM-42 Components (Part 1):

EM-42 Components (Part 2):

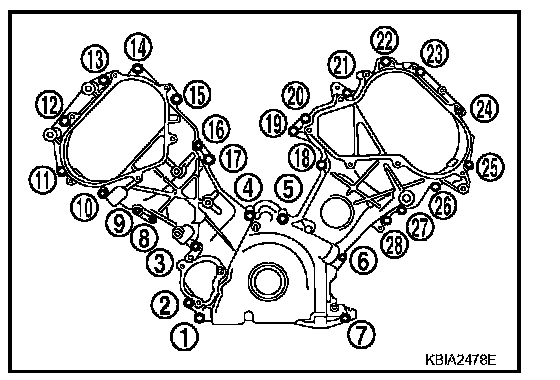

Install the bolts in the numerical order shown.





M6 x 50 mm (1.97 in) No. 1, 20, 25, 26, 27
M6 x 80 mm (3.15 in) No. 4, 5, 7
M6 x 20 mm (0.79 in) Except the above
After tightening, re-tighten to the specified torque.
