Rear RH
REAR RHREAR RH : DescriptionDetects condition of the front
power window motor LH operation and transmits to main power window and door lock/unlock switch as pulse signal.
REAR RH : Component Function Check
Step 1:

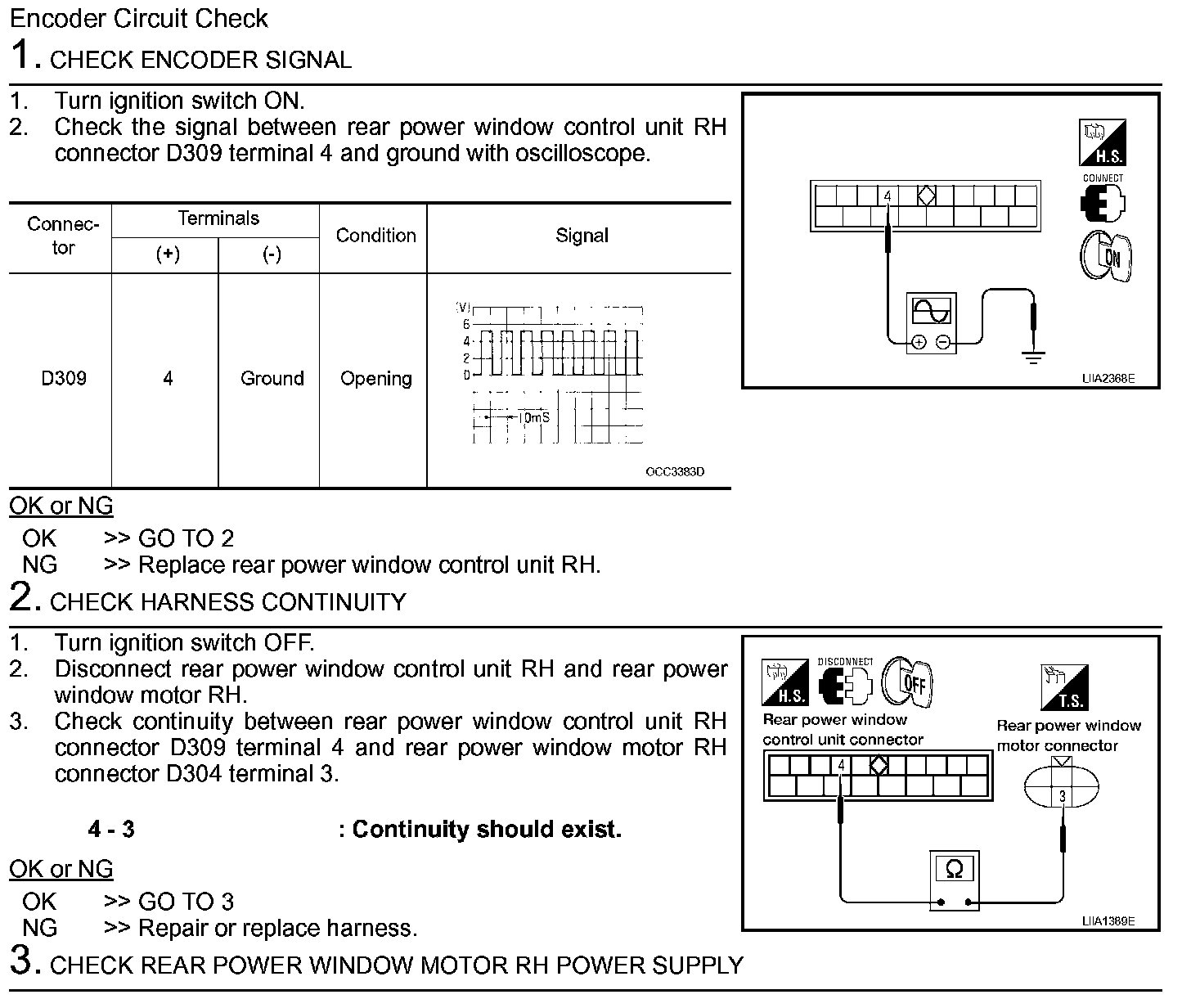

REAR RH : Diagnosis ProcedureStep 1-3:

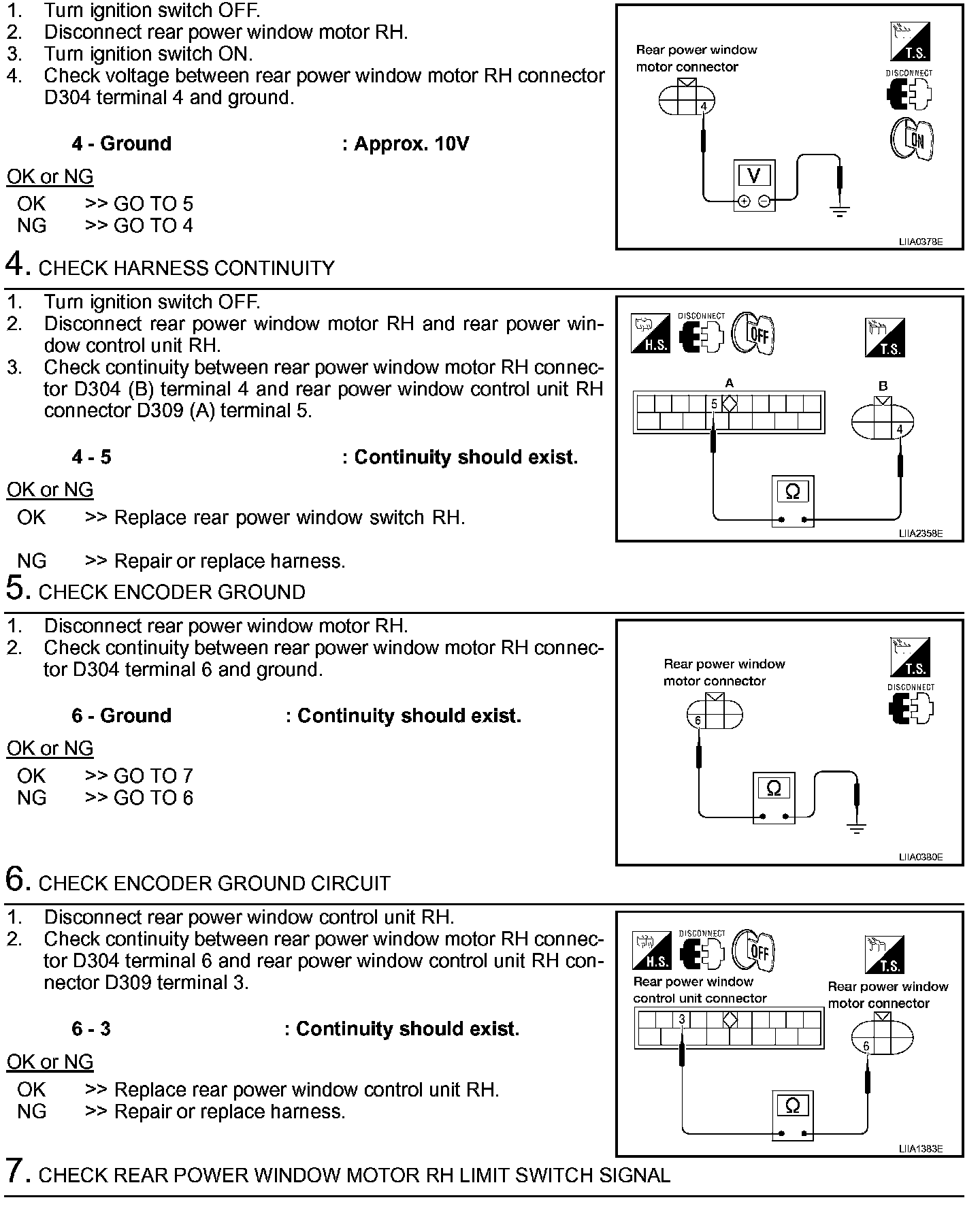

Step 3 (Continued)-7:

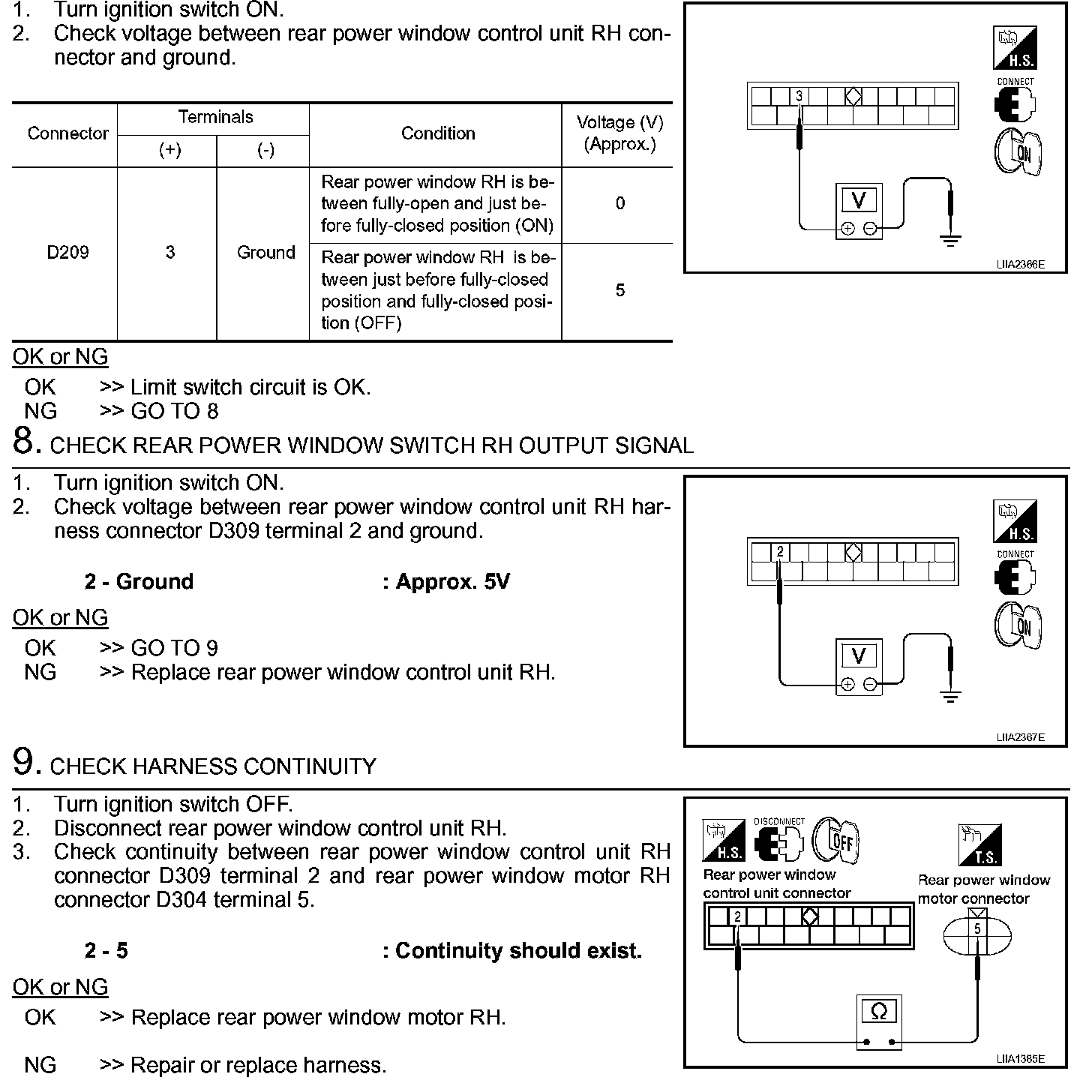

Step 7 (Continued)-9:
