Component Inspection
SEAT MEMORY SWITCHComponent Inspection 1.CHECK SEAT MEMORY SWITCH 1.
Turn ignition switch OFF.
2.
Disconnect seat memory switch connector.
3.

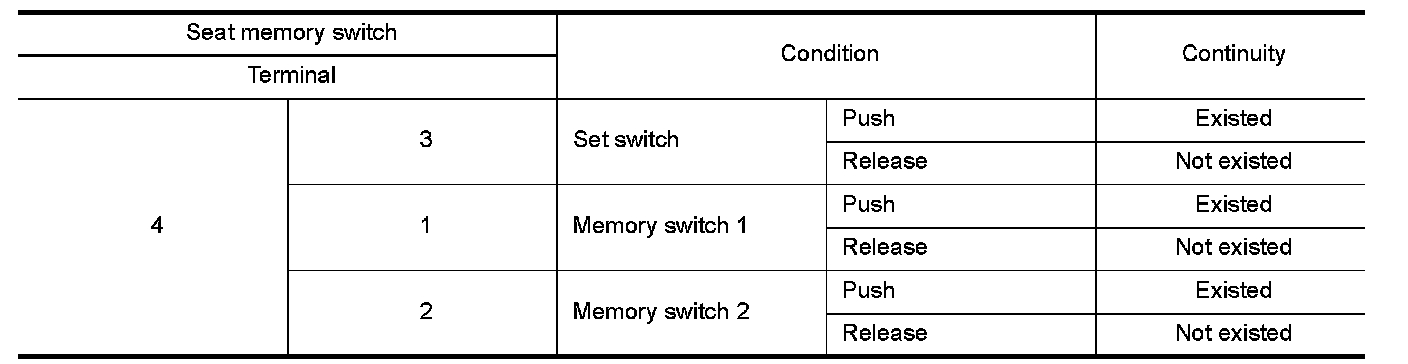

Check continuity between seat memory switch terminals.
Is the inspection result normal?
YES - INSPECTION END
NO - Replace seat memory switch.Refer to
Removal and Replacement.
