System Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Block

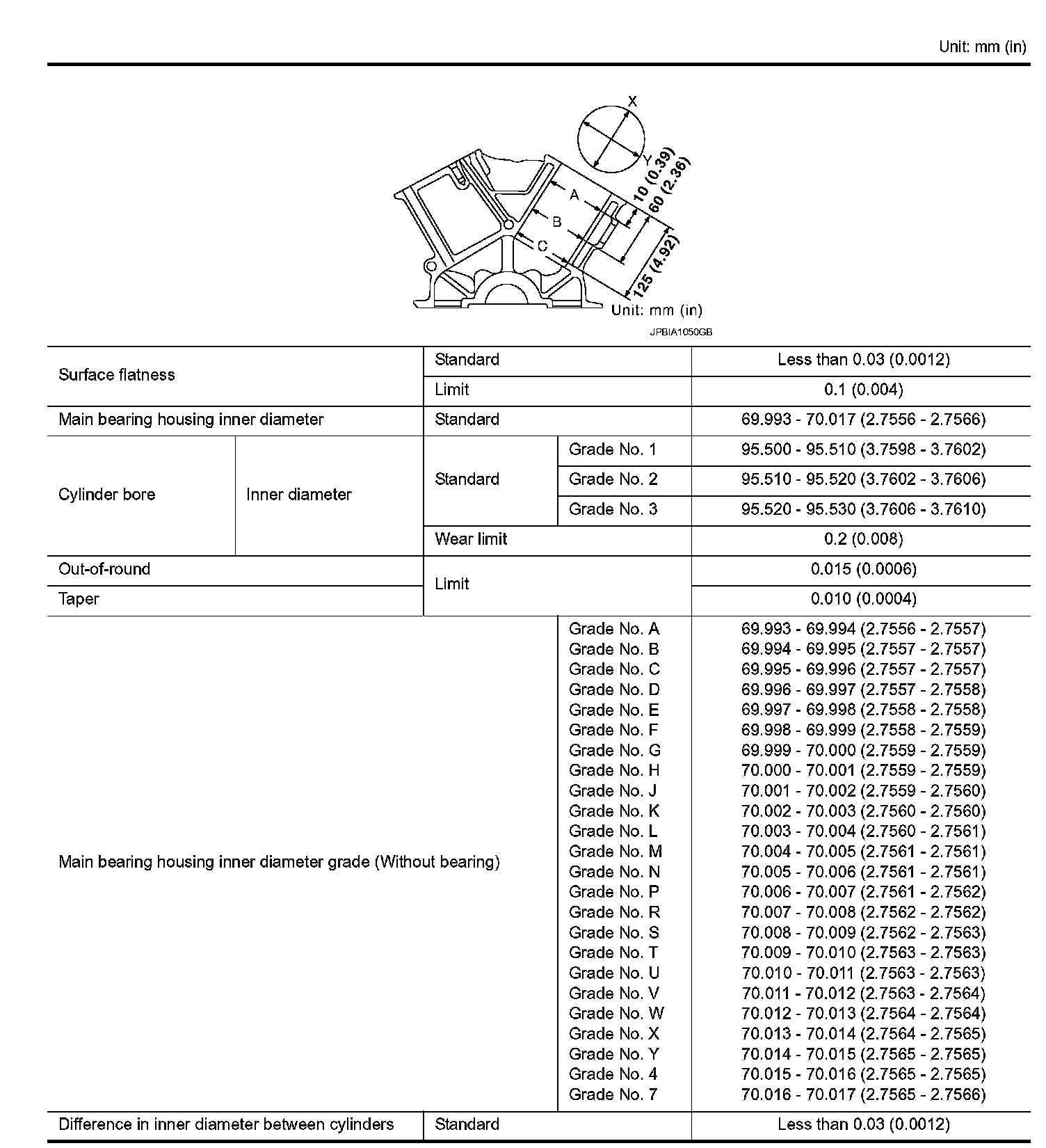

CYLINDER BLOCK






AVAILABLE PISTON






PISTON RING






PISTON PIN

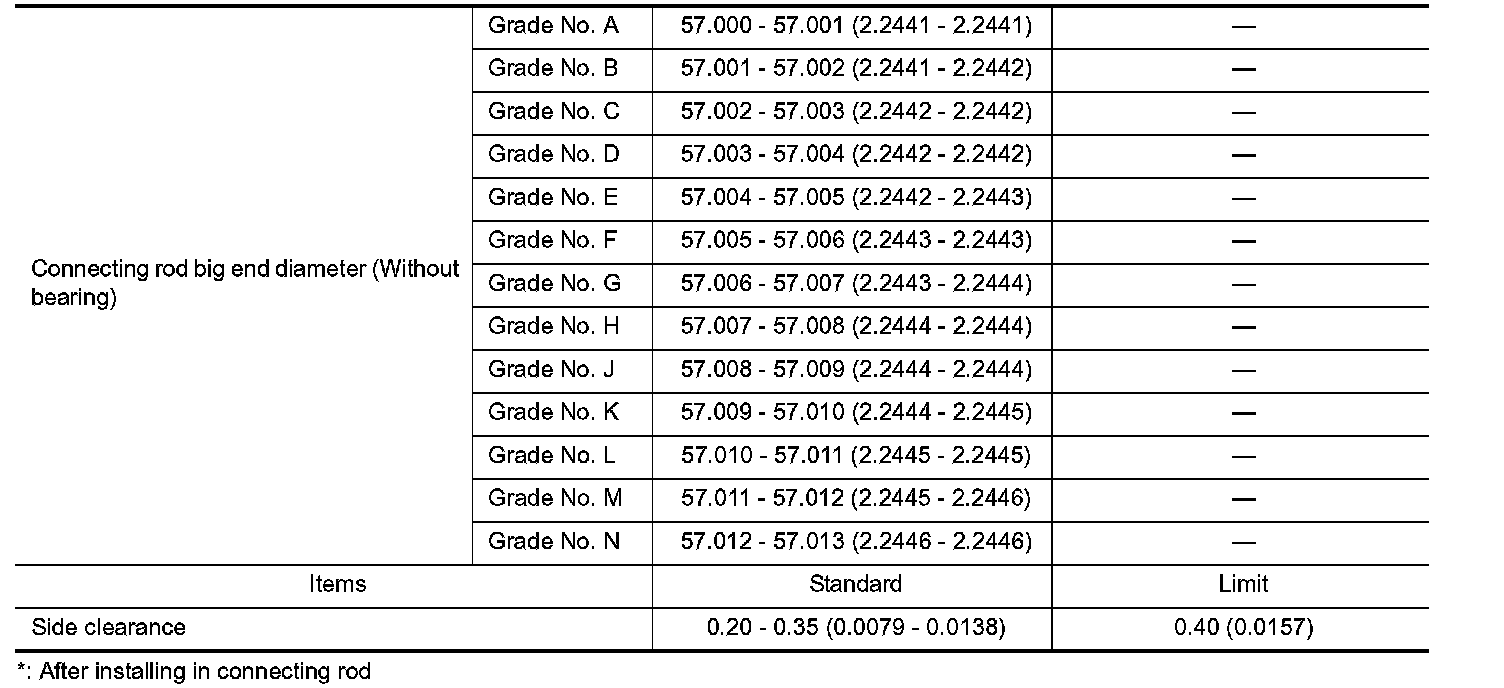

CONNECTING ROD

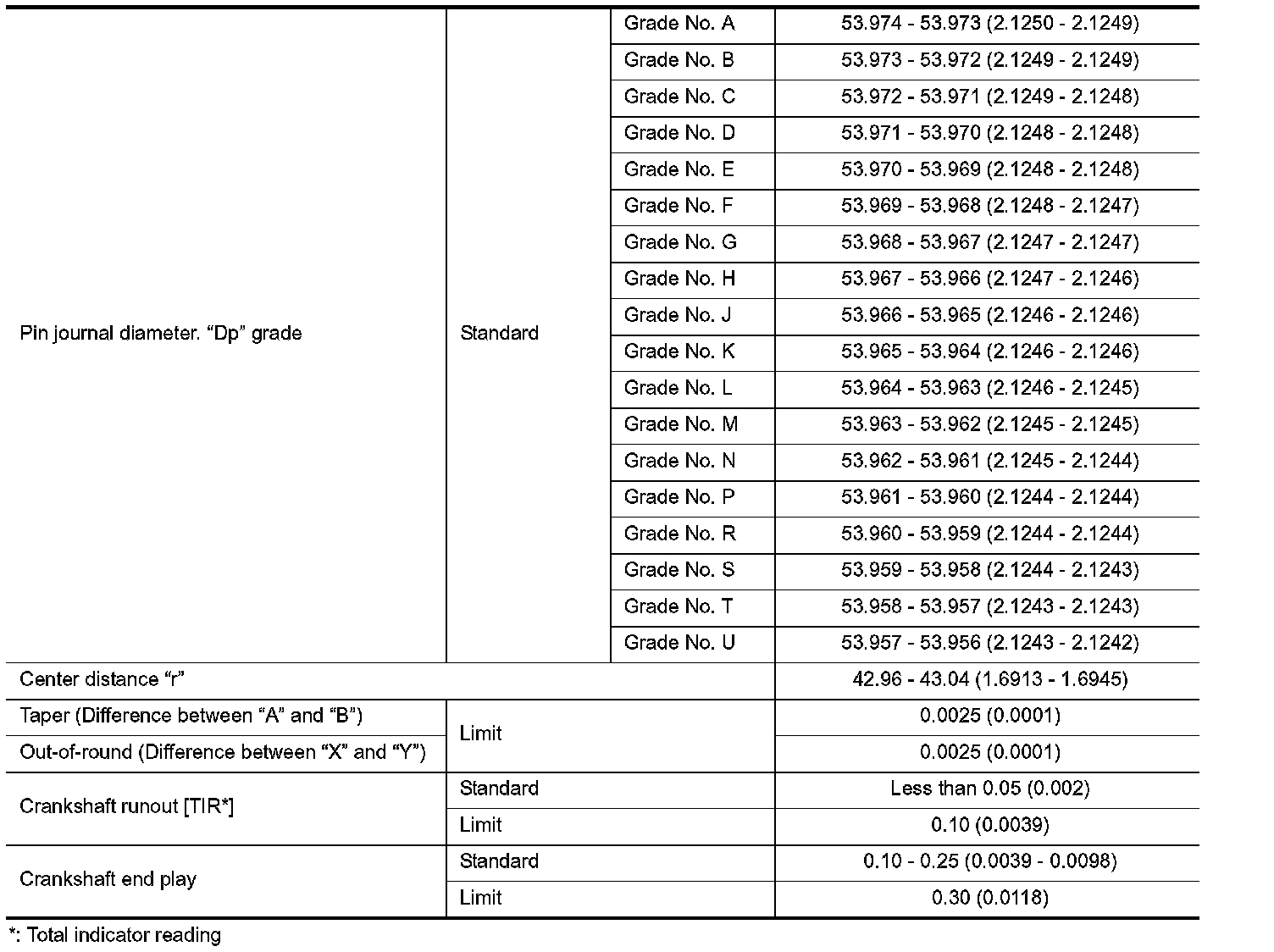

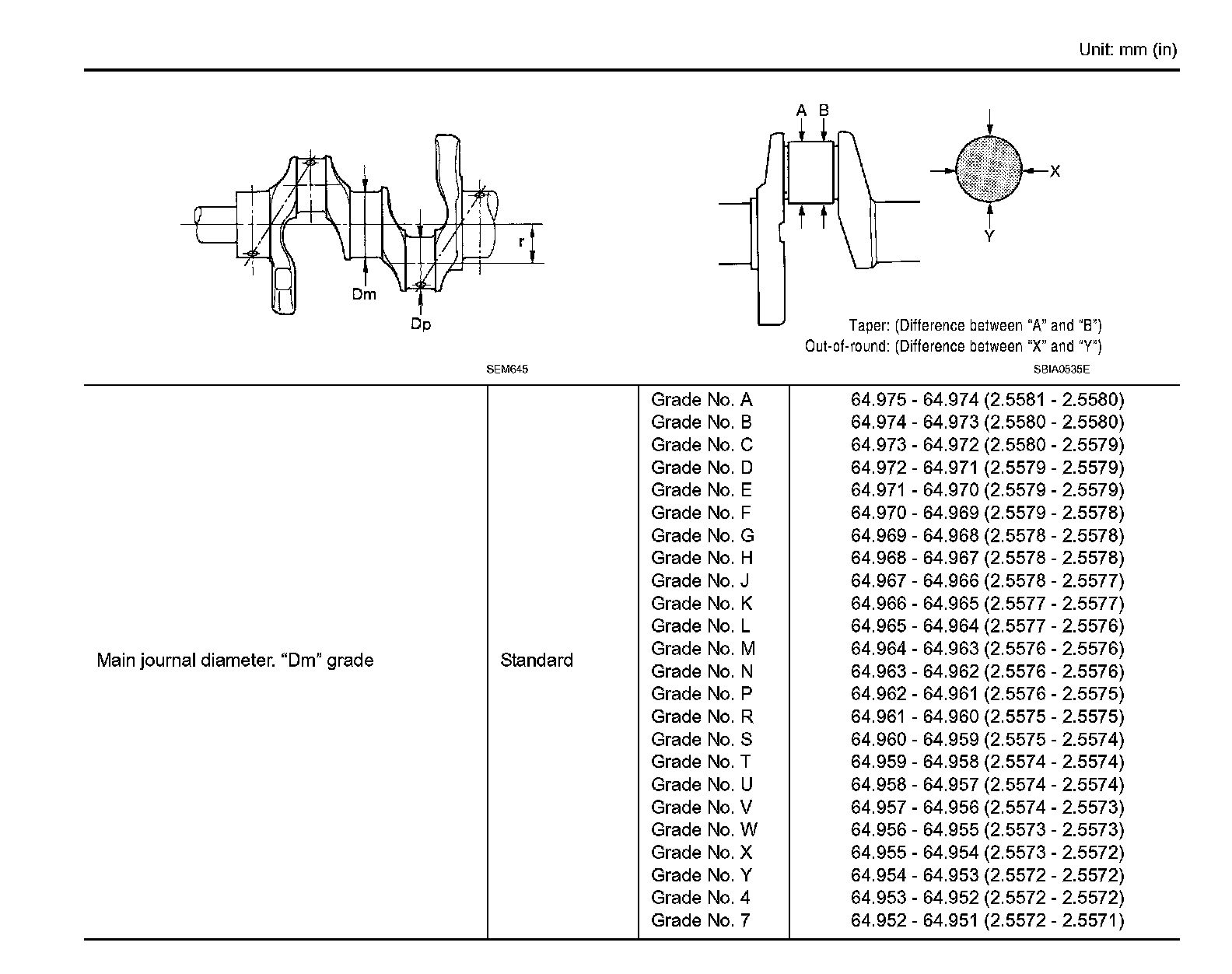

CRANKSHAFT










Crankshaft pulley bolt
First 44.1 Nm (4.5 kg-m, 33 ft-lb)
Second 90°

Lower cylinder block bolts





1. Tighten bolts (No. 17 to 26) 25.0 Nm (2.6 kg-m, 18 ft-lb)
2. Repeat step





3. Tighten bolts (No. 1 to 16) 35.3 Nm (3.6 kg-m, 26 ft-lb)

4. Turn bolts (No. 1 to 16) 90 degrees
