Check Trunk Opener Request Switch

INTELLIGENT KEY SYSTEM


Check Trunk Opener Request Switch

1.CHECK TRUNK OPENER REQUEST SWITCH
With CONSULT-III
Check trunk opener request switch ("BD/TR REQ SW") in "DATA MONITOR" mode.





Without CONSULT-III
1. Turn ignition switch OFF.
2. Check voltage between Intelligent Key unit connector and ground.










OK or NG
OK - Trunk opener request switch is OK.
NG - GO TO 2.
2.CHECK TRUNK OPENER REQUEST SWITCH CIRCUIT
1. Disconnect Intelligent Key unit and trunk opener request switch connector.

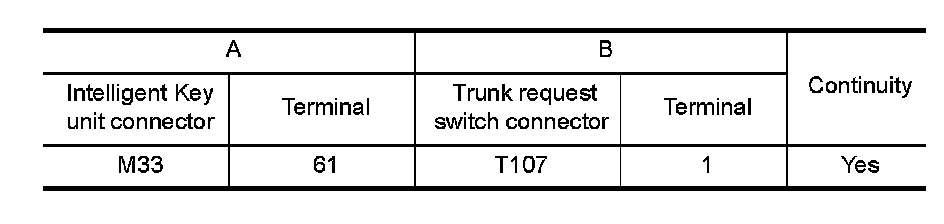

2. Check continuity between Intelligent Key unit connector and trunk opener request switch connector.










3. Check continuity between Intelligent Key unit connector and ground.





OK or NG
OK - GO TO 3.
NG - Repair or replace harness between Intelligent Key unit and trunk opener request switch.
3.CHECK TRUNK OPENER REQUEST SWITCH OPERATION
Check trunk opener request switch.










OK or NG
OK - GO TO 4.
NG - Replace trunk opener request switch.
4.CHECK TRUNK OPENER REQUEST SWITCH GROUND CIRCUIT
Check continuity between trunk opener request switch connector and ground.










OK or NG
OK - GO TO 5.
NG - Repair or replace trunk opener request switch ground circuit.
5.CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL
1. Connect Intelligent Key unit connector.
2. Check voltage between Intelligent Key unit connector and ground.










OK or NG
OK - Check the condition of harness and connector.
NG - Replace Intelligent Key unit.
