Component Inspection





ASCD BRAKE SWITCH


Component Inspection (ASCD Brake Switch)

1.CHECK ASCD BRAKE SWITCH-I
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.

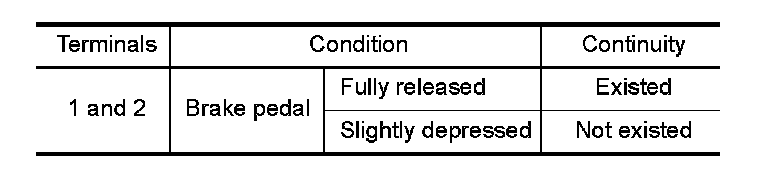

3. Check the continuity between ASCD brake switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK ASCD BRAKE SWITCH-II
1. Adjust ASCD brake switch installation. Refer to Procedures.

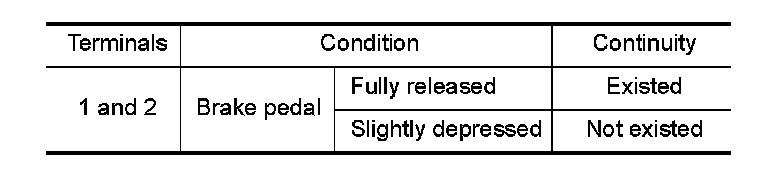

2. Check the continuity between ASCD brake switch terminals under the following conditions.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ASCD brake switch.
