CONSULT-III Function

DIAGNOSIS SYSTEM (BCM)


AIR PRESSURE MONITOR : CONSULT-III Function


WORK SUPPORT MODE

ID Read
The registered ID number is displayed.

ID Regist
Refer to Transmitter ID Registration Procedure.

SELF-DIAG RESULTS MODE

Operation Procedure
Refer to Self-Diagnosis (With CONSULT-III).

DATA MONITOR MODE
Screen of data monitor mode is displayed. Refer to CONSULT-III Function (BCM).

NOTE:
When malfunction is detected, CONSULT-III perform REAL-TIME DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.

ACTIVE TEST MODE

NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction may be different from that displayed on CONSULT-III.

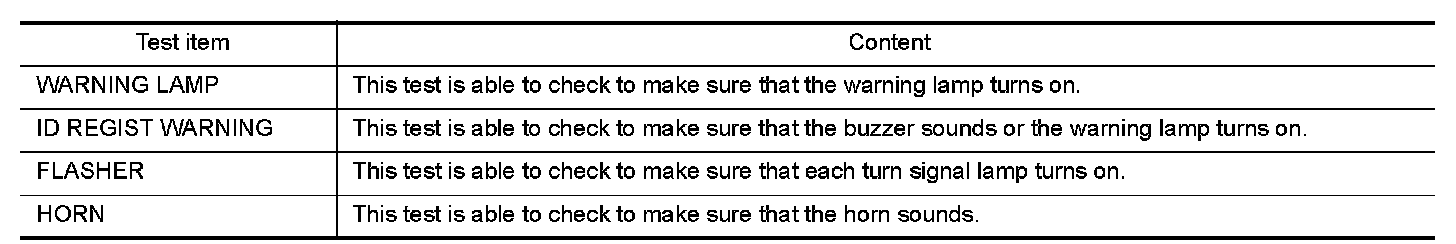

TEST ITEM LIST
