Intelligent Key System/Engine Start Function Symptoms
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION SYMPTOMS

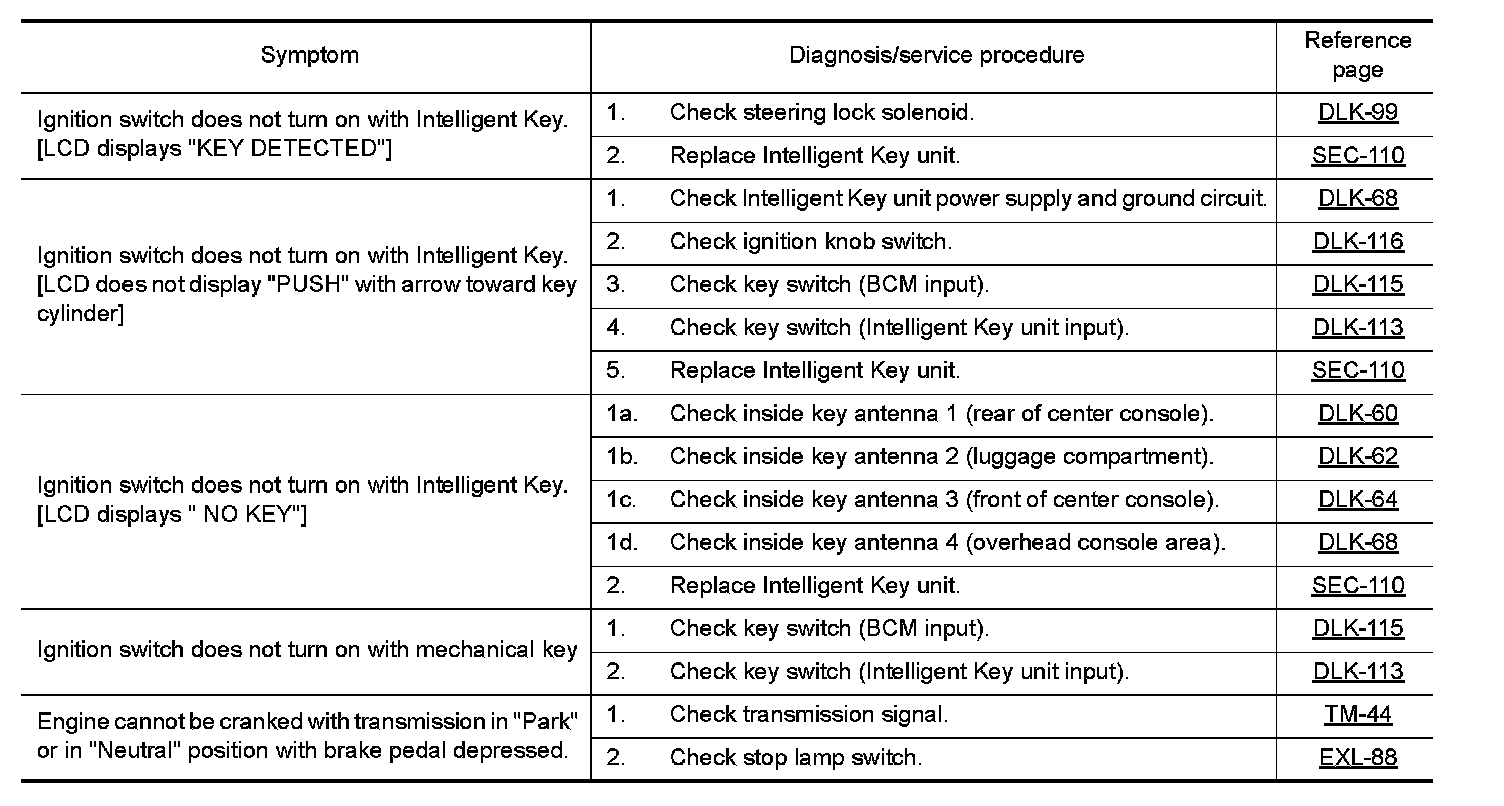

Symptom Table
NOTE:
- Before performing the diagnosis in the following table, check " Work Flow".
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- Engine cranking is enabled when the shift lever is in the "Park" position, and in the "Neutral" position only if the brake pedal is depressed.
- If the following symptoms are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
CONDITIONS OF VEHICLE (OPERATING CONDITIONS)
- Engine start function is ON when setting on CONSULT-III.
- Mechanical key is not inserted in key cylinder.
- One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.
