Compressor HVAC: Service and Repair

COMPRESSOR


Removal and Installation for Compressor

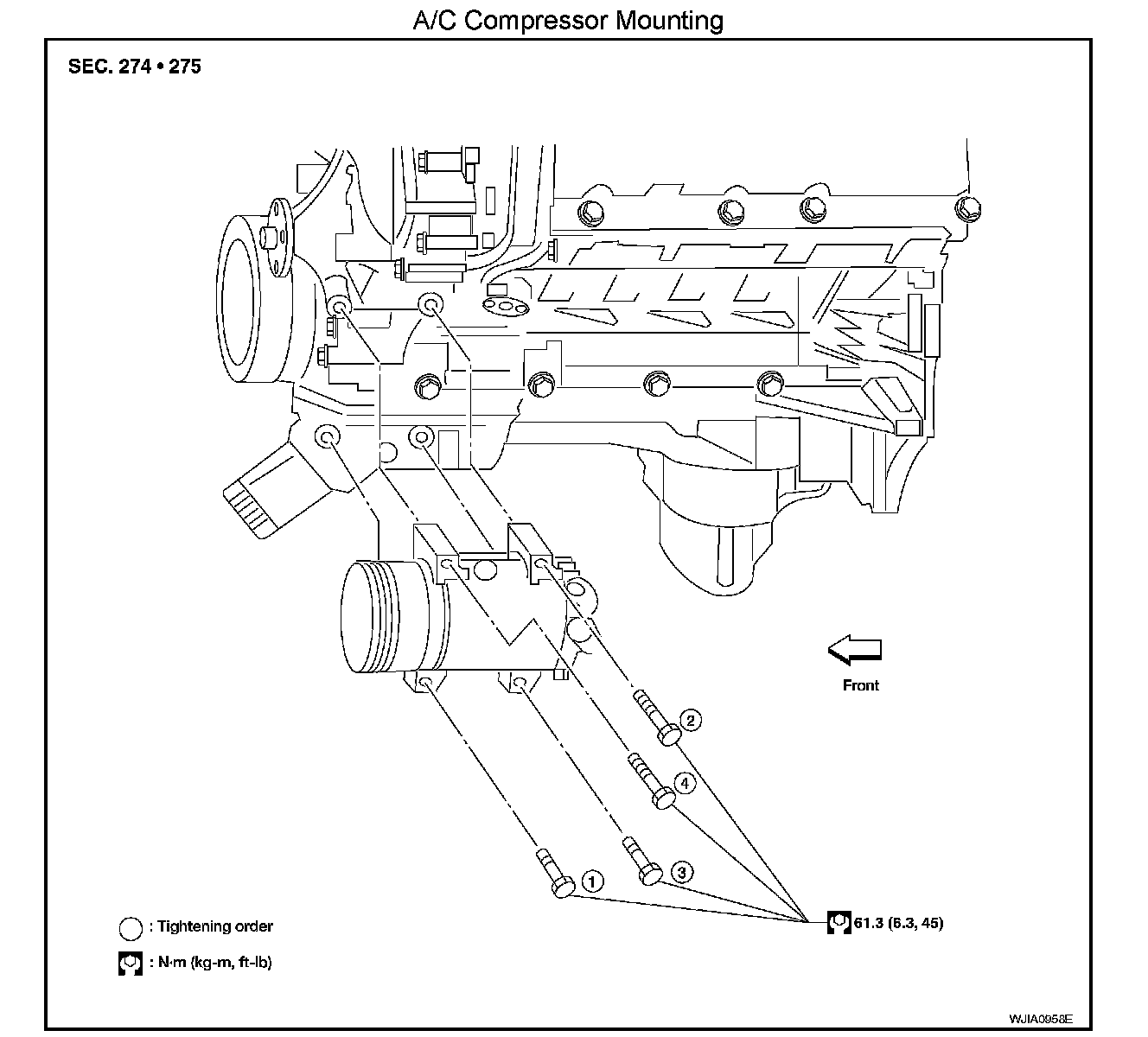

A/C Compressor Mounting






REMOVAL
1. Discharge the refrigerant. Refer to Refrigeration System.
2. Remove the front right wheel and tire assembly. Refer to Rotation.
3. Remove the engine under cover and the splash shield using power tool.
4. Remove the engine air cleaner and air ducts. Refer to Removal and Installation.
5. Remove the drive belt. Refer to Removal and Installation.
6. Disconnect the compressor electrical connector.
7. Disconnect the high-pressure flexible hose and low-pressure flexible hose from the compressor.

CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
8. Remove the compressor bolts and nut using power tools.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- Replace the O-rings of the low-pressure flexible hose and high-pressure flexible hose with new ones, apply compressor oil to the O-rings when installing them.
- After recharging the A/C system with refrigerant, check for leaks.
