Solar Sensor: Service and Repair
OPTICAL SENSORRemoval and Installation REMOVAL 1.
Remove the defroster grille from the instrument panel. Refer to
Service and Repair.
2.

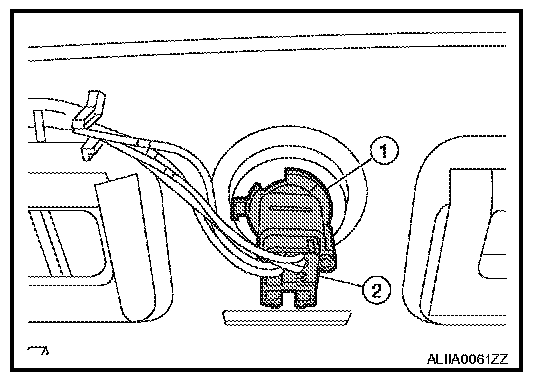

Disconnect the optical sensor connector (2).
3.
Twist the optical sensor (1) counter clockwise to remove it from the defroster grille.
INSTALLATION Installation is in the reverse order of removal.
