Intake Valve Timing Control Position Sensor (LH)

INTAKE VALVE TIMING CONTROL


Intake Valve Timing Control Position Sensor (LH)


REMOVAL
1. Remove engine room cover using power tool. Refer to Service and Repair.
2. Remove air duct and resonator assembly. Refer to Removal and Installation.
3. Disconnect intake valve timing control position sensor connector (LH).

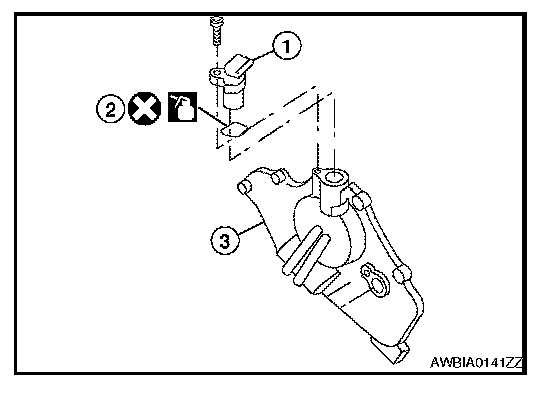

4. Remove intake valve timing control position sensor (LH) (1) from
Intake valve timing control solenoid valve cover (LH) (3).

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
Replace the O-ring (2) of the intake valve timing control position sensor with a new one, then lubricate
O-ring with engine oil before installing.

Intake valve timing control position sensor bolt : 9.6 Nm (0.98 kg-m, 85 in-lb)
