Front Power Window Switch
FRONT POWER WINDOW SWITCHRemoval and Installation REMOVAL 1.
Remove the front
power window switch finisher (2) from the front door finisher RH. Refer to
Service and Repair.

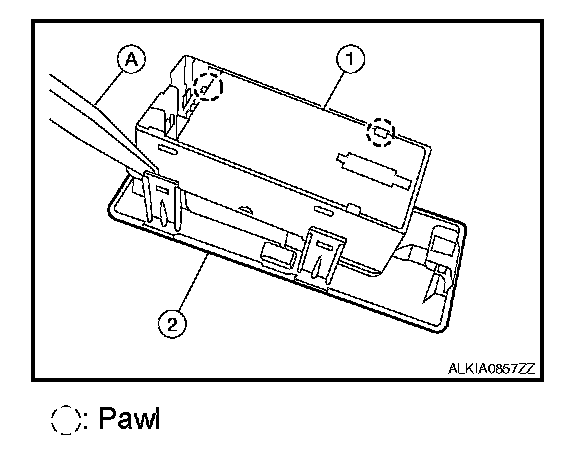

: Pawl
2.
Using a suitable tool (A), release the tabs and remove the front
power window switch (1).
INSTALLATION Installation is in the reverse order of removal.
