Power Window Main Switch
POWER WINDOW MAIN SWITCHRemoval and Installation REMOVAL 1.
Remove the power window main switch finisher (2) from the door finisher LH. Refer to
Service and Repair.
2.

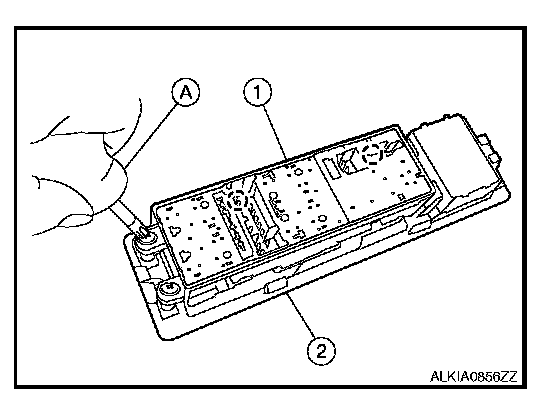

Using a suitable tool (A), remove the screws from the power window main switch (1), then release from the finisher (2).
INSTALLATION Installation is in the reverse order of removal.
