Component Inspection
SNOW MODE SWITCHComponent Inspection 1.CHECK SNOW MODE SWITCH 1.
Turn
ignition switch OFF.
2.
Disconnect snow mode switch harness connector.
3.

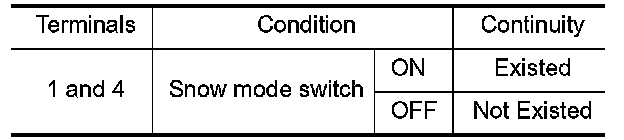

Check the continuity between snow mode switch terminals under the following conditions.
Is the inspection result normal?
YES - INSPECTION END.
NO - Replace snow mode switch.
