Gas Sensor Sensitivity Adjustment Function

INSPECTION AND ADJUSTMENT

WITH ACCS : Gas Sensor Sensitivity Adjustment Function

DESCRIPTION
According to customer's sense of smell, gas sensor sensitivity can be changed.

Operating procedures for this trimmer are as follows:
1. Begin self-diagnosis STEP-5 mode. Diagnosis Description.
2. Press fan (UP: +) switch two times to set system in auxiliary mode.

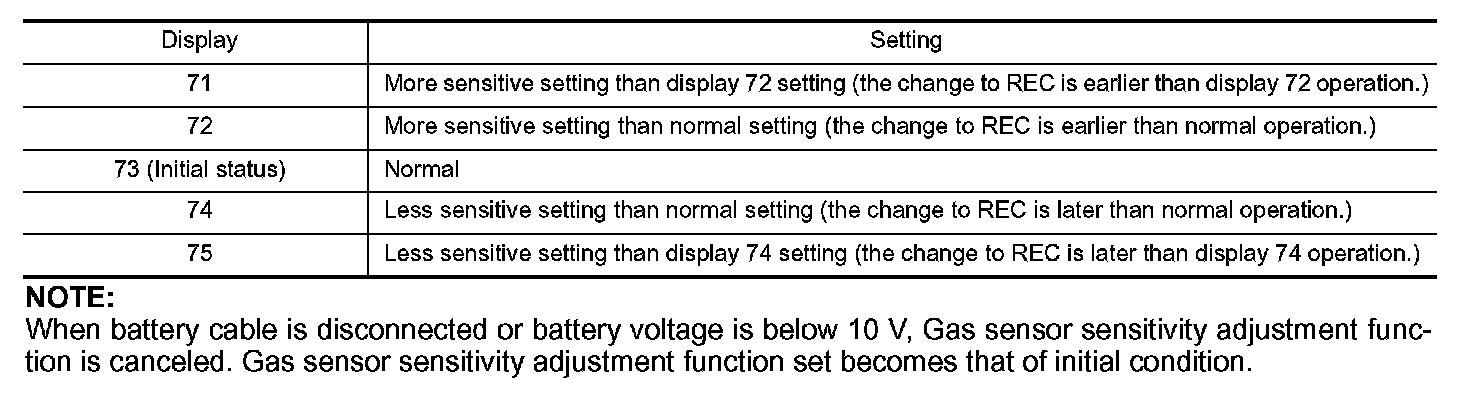

3. Turn temperature control dial (driver side) as desired for the setting.
