Connecting Rod, Engine

SERVICE DATA AND SPECIFICATIONS (SDS)


Connecting Rod Bearing

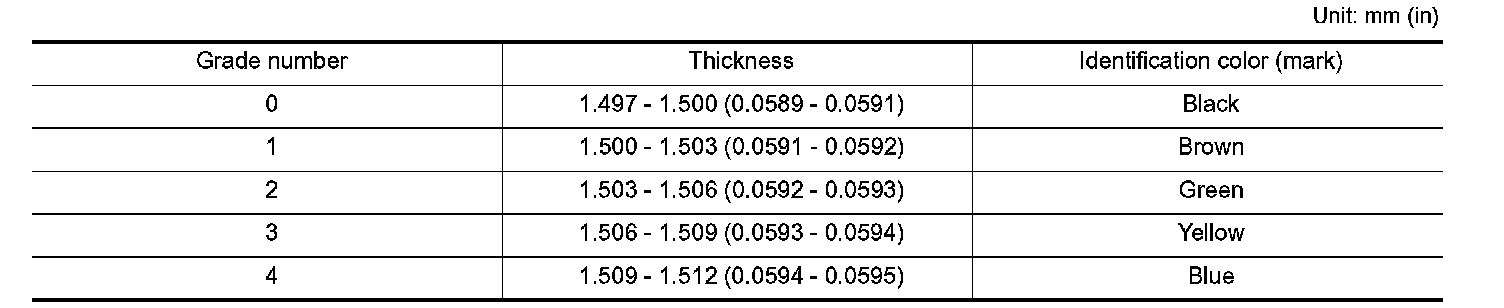

CONNECTING ROD BEARING

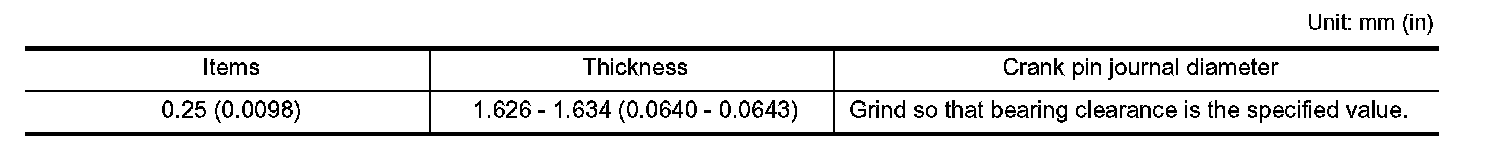

UNDERSIZE

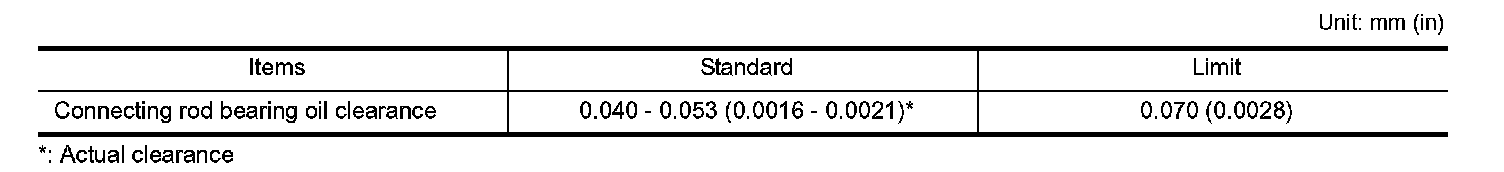

CONNECTING ROD BEARING OIL CLEARANCE





Connecting rod bolts

Tighten 28.4 Nm (2.9 kg-m, 21 ft-lb)
Loosen 0 Nm (0 kg-m, 0 ft-lb)
Tighten 24.5 Nm (2.5 kg-m, 18 ft-lb)
Angle tightening 90 degrees

Connecting rod big end diameter (Without bearing), Unit: mm (in)

Grade No. A 57.000 - 57.001 (2.2441 - 2.2441)
Grade No. B 57.001 - 57.002 (2.2441 - 2.2442)
Grade No. C 57.002 - 57.003 (2.2442 - 2.2442)
Grade No. D 57.003 - 57.004 (2.2442 - 2.2442)
Grade No. E 57.004 - 57.005 (2.2442 - 2.2443)
Grade No. F 57.005 - 57.006 (2.2443 - 2.2443)
Grade No. G 57.006 - 57.007 (2.2443 - 2.2444)
Grade No. H 57.007 - 57.008 (2.2444 - 2.2444)
Grade No. J 57.008 - 57.009 (2.2444 - 2.2444)
Grade No. K 57.009 - 57.010 (2.2444 - 2.2445)
Grade No. L 57.010 - 57.011 (2.2445 - 2.2445)
Grade No. M 57.011 - 57.012 (2.2445 - 2.2446)
Grade No. N 57.012 - 57.013 (2.2446 - 2.2446)

Side clearance, Unit: mm (in)

Standard 0.20 - 0.35 (0.0079 - 0.0138)
Limit 0.40 (0.0157)
