Power Window Main Switch





POWER WINDOW MAIN SWITCH


Removal and Installation


REMOVAL
1. Remove the front door finisher. Exploded View and Removal and Installation.

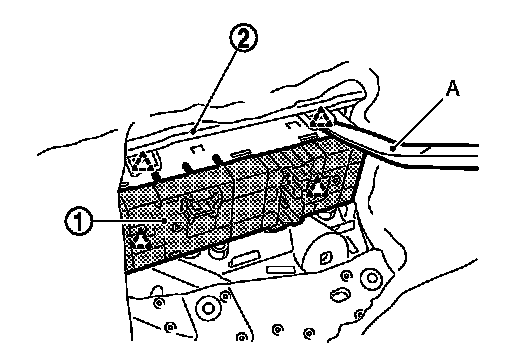

2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-bladed screw driver (A) etc.

CAUTION:
Never fold pawl of front door finisher.

INSTALLATION
Install in the reverse order of removal.

NOTE:
If power window main switch is replaced or is removed, it is necessary to perform the initialization procedure.
