CONSULT-III Function





ON BOARD DIAGNOSTIC (OBD) SYSTEM


CONSULT-III Function

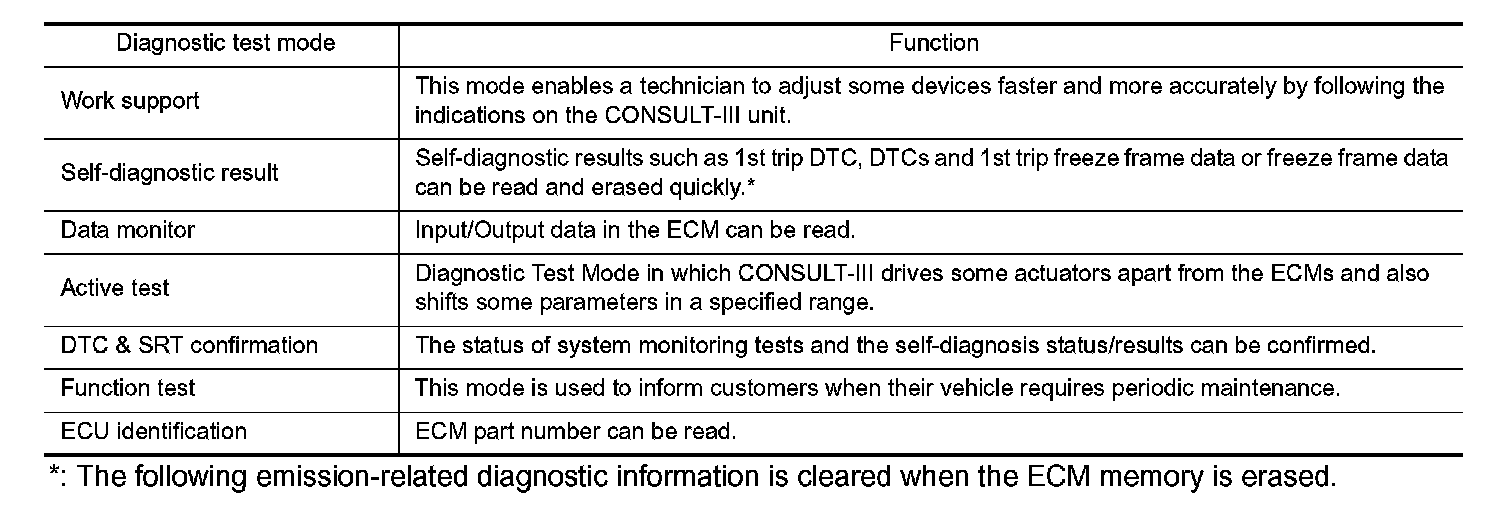

FUNCTION





^ Diagnostic trouble codes
^ 1st trip diagnostic trouble codes
^ Freeze frame data
^ 1st trip freeze frame data
^ System readiness test (SRT) codes
^ Test values

WORK SUPPORT MODE

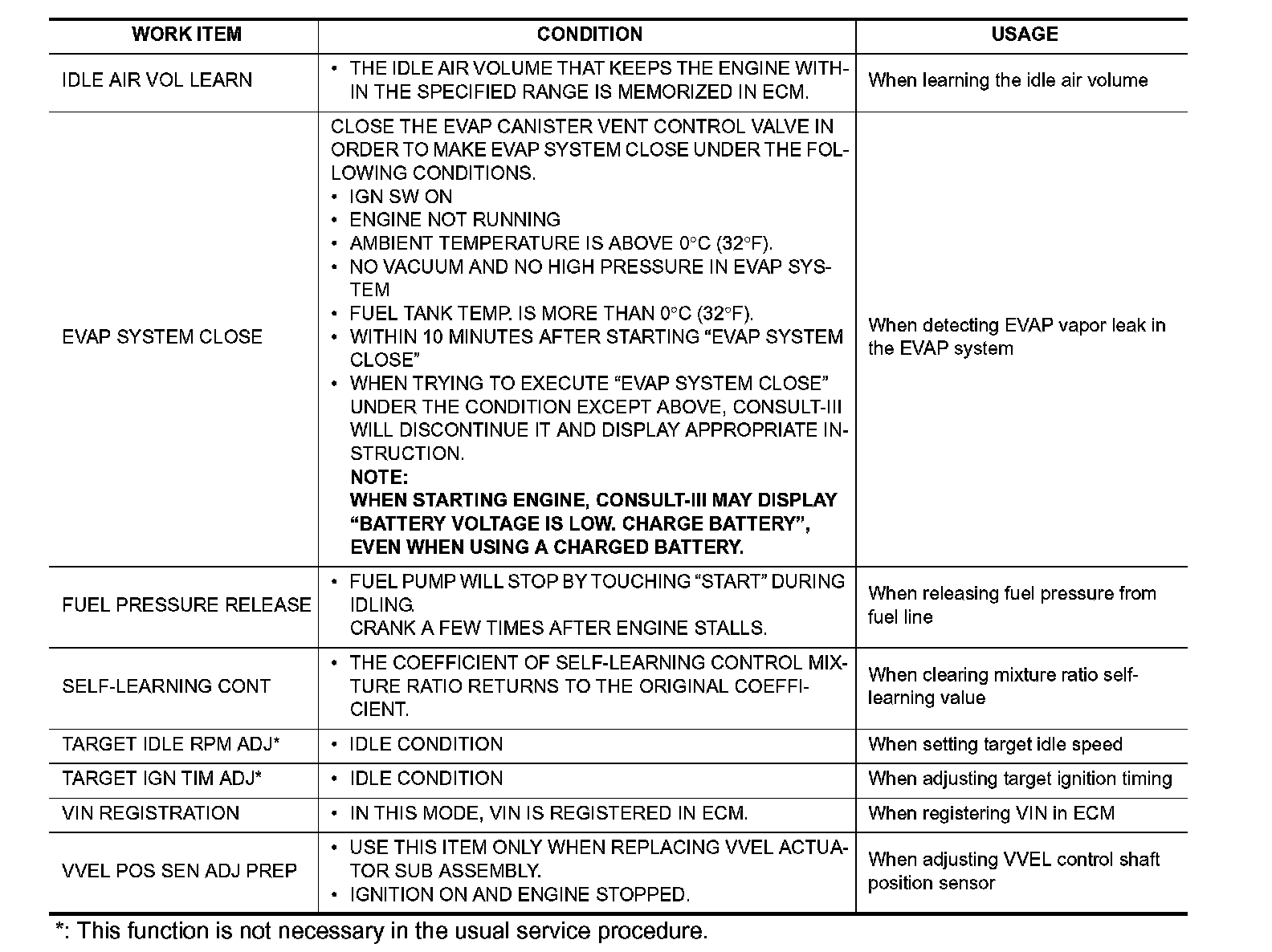

Work Item





SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to Testing and Inspection.

Freeze Frame Data and 1st Trip Freeze Frame Data

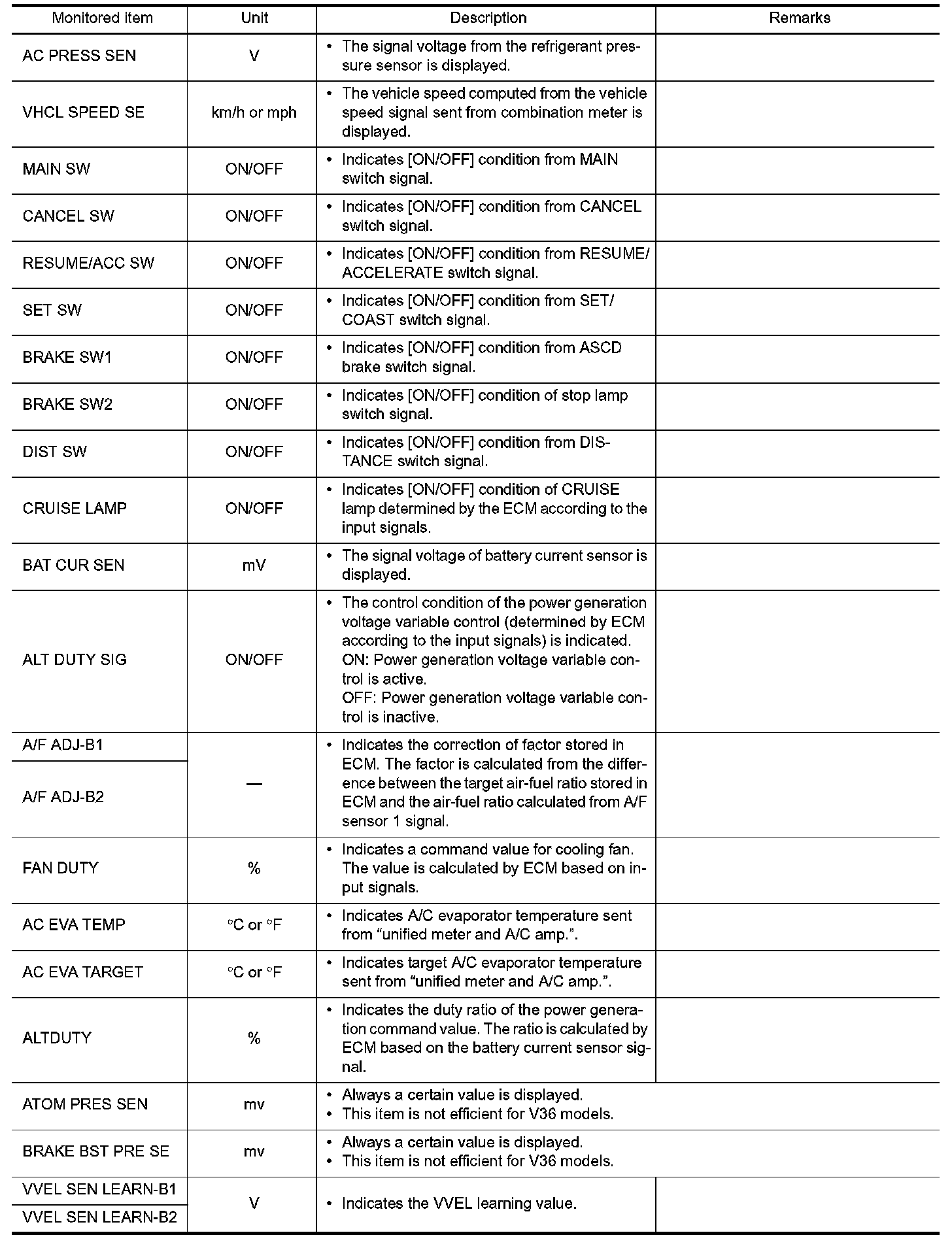

DATA MONITOR MODE

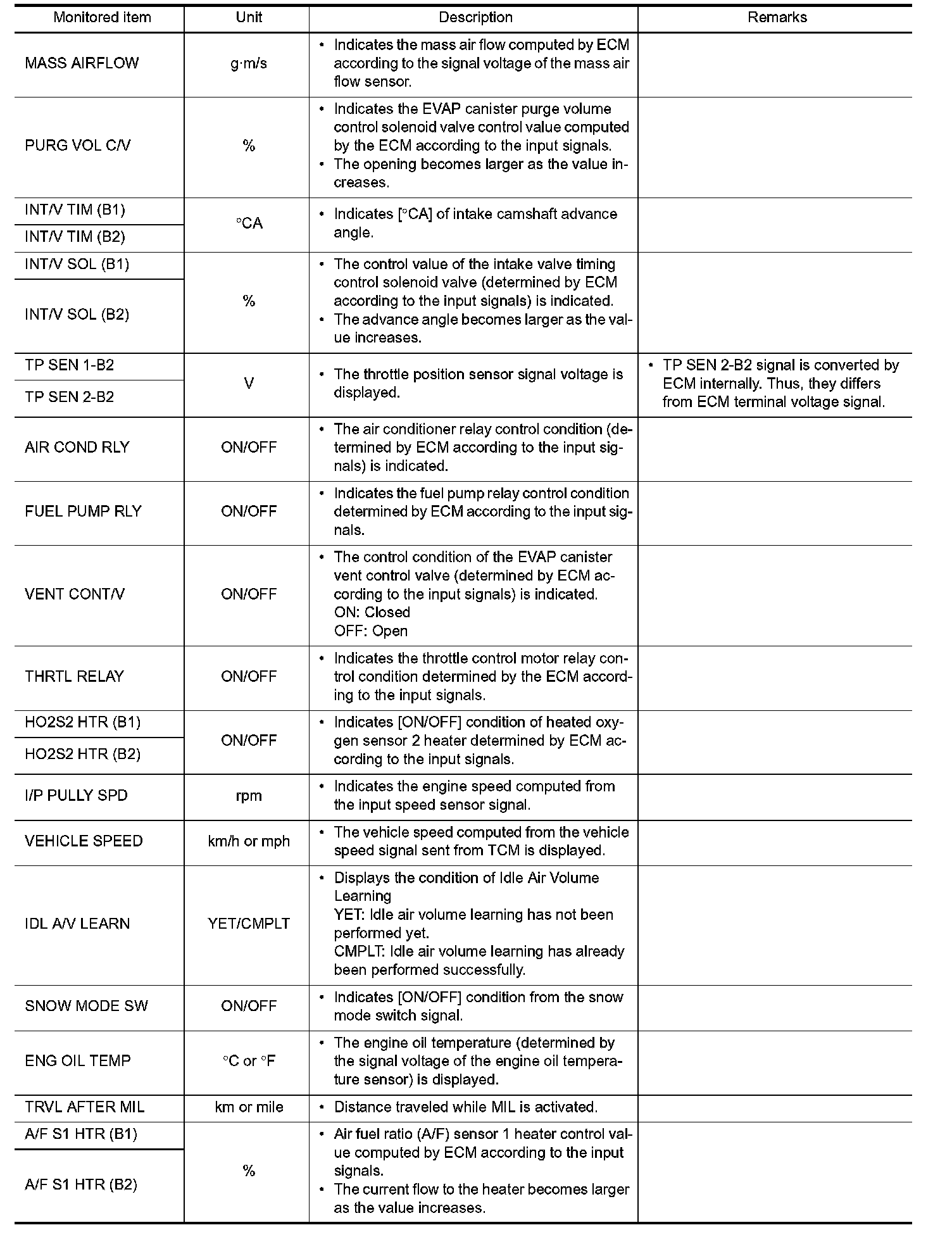

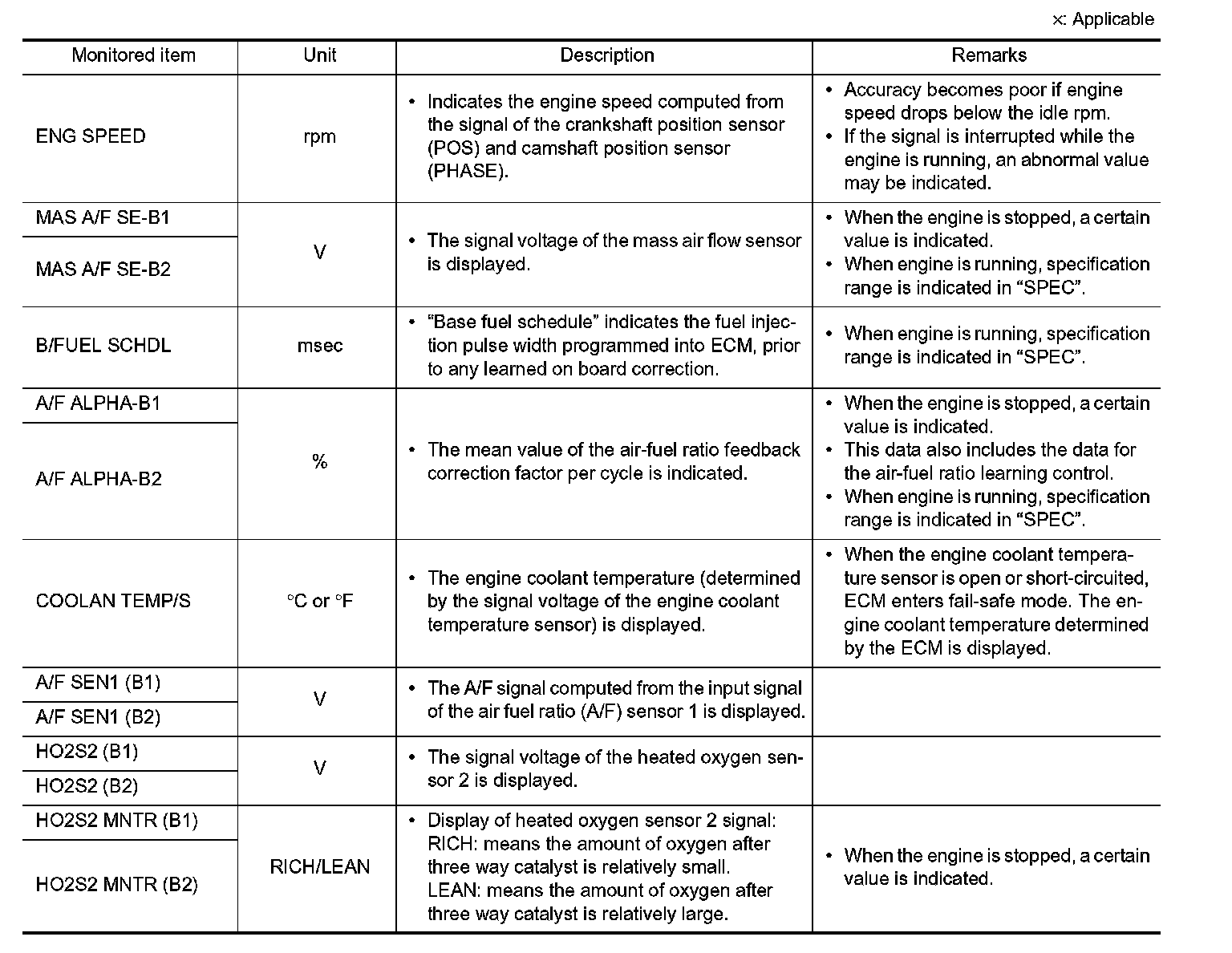

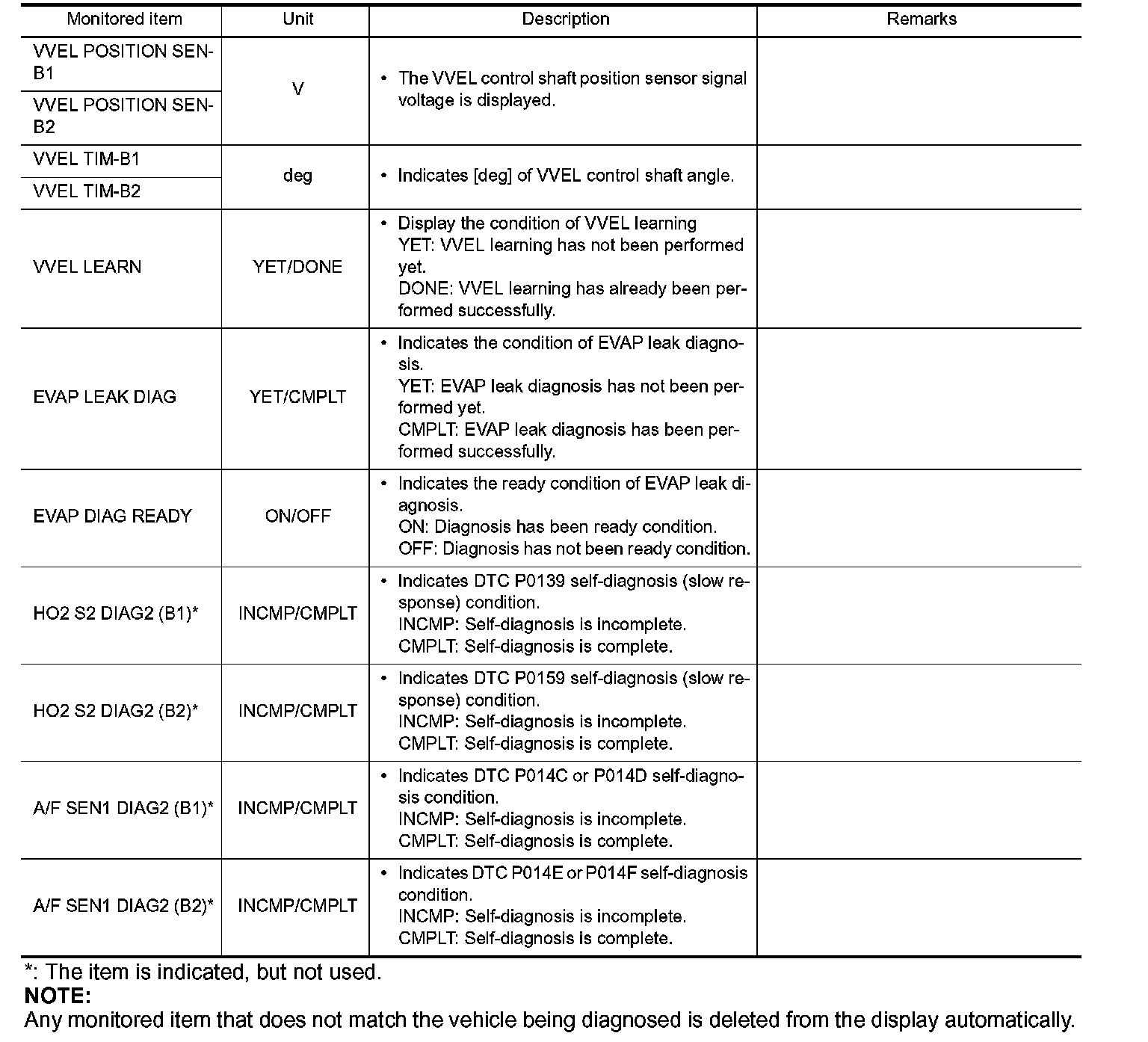

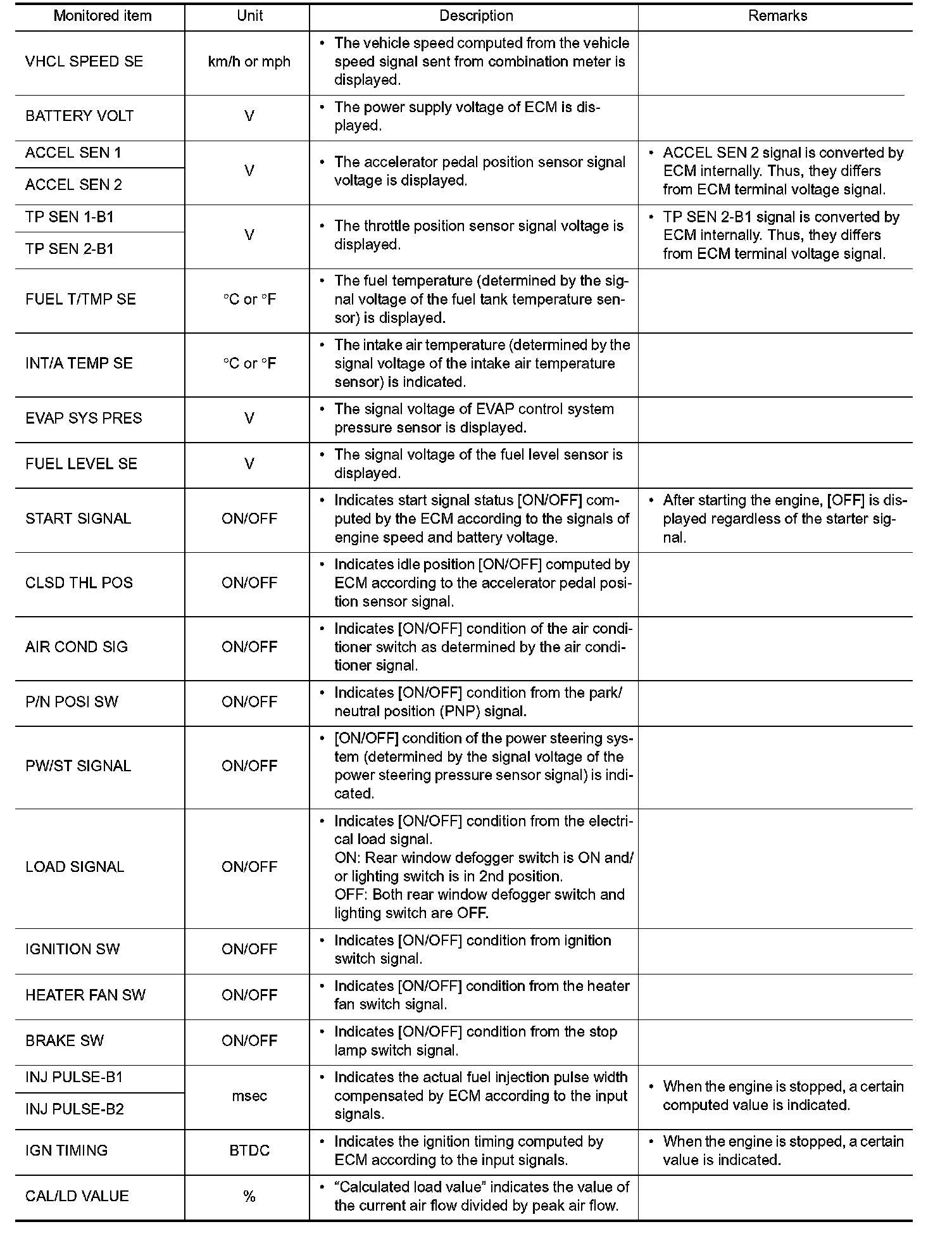

Monitored Item


























ACTIVE TEST MODE

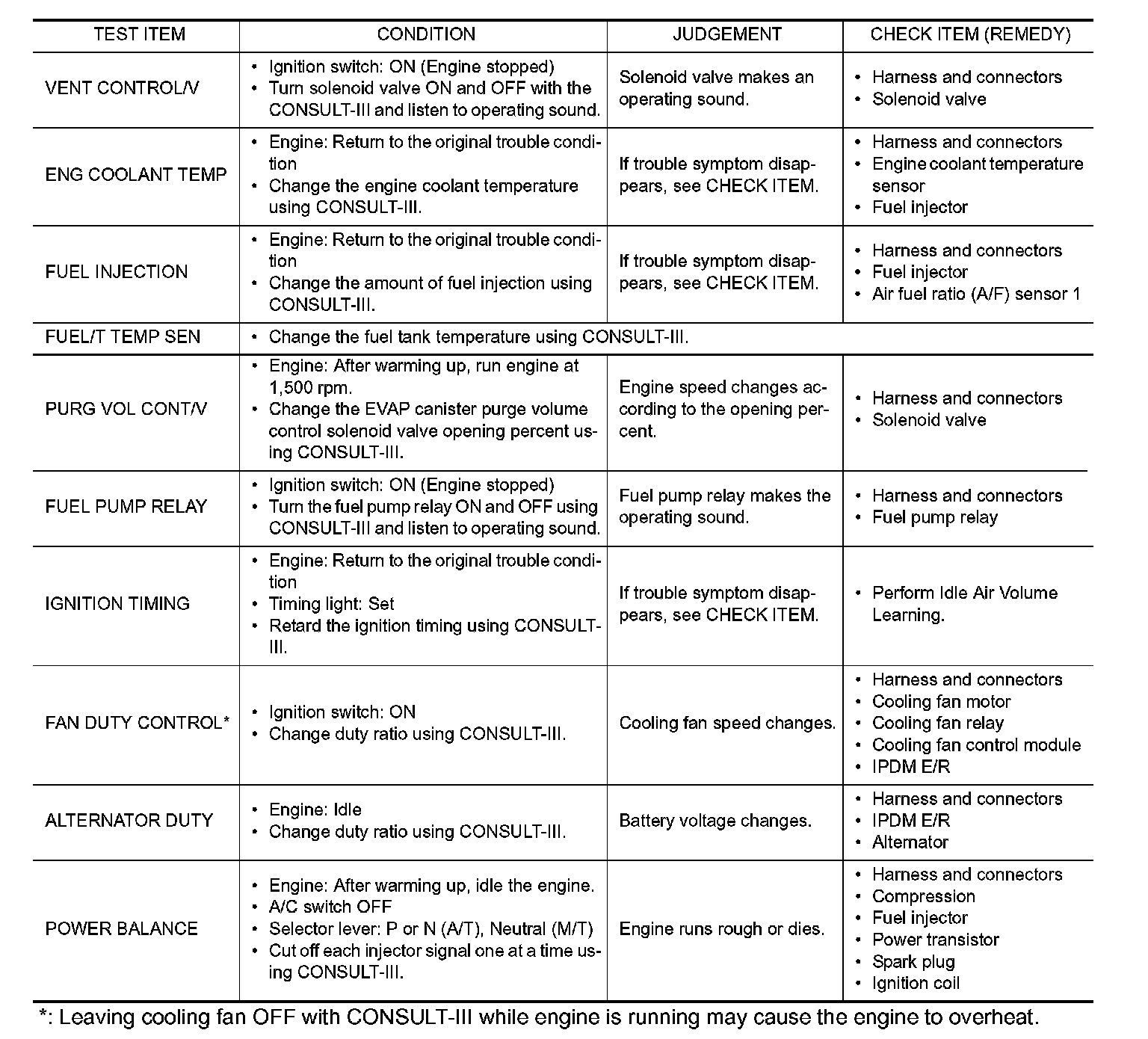

Test Item





DTC & SRT CONFIRMATION MODE

SRT STATUS Mode
For details, refer to Diagnosis Description.

PERMANENT DTC STATUS Mode
For details, refer to Diagnosis Description.

NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing permanent DTC.

NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.

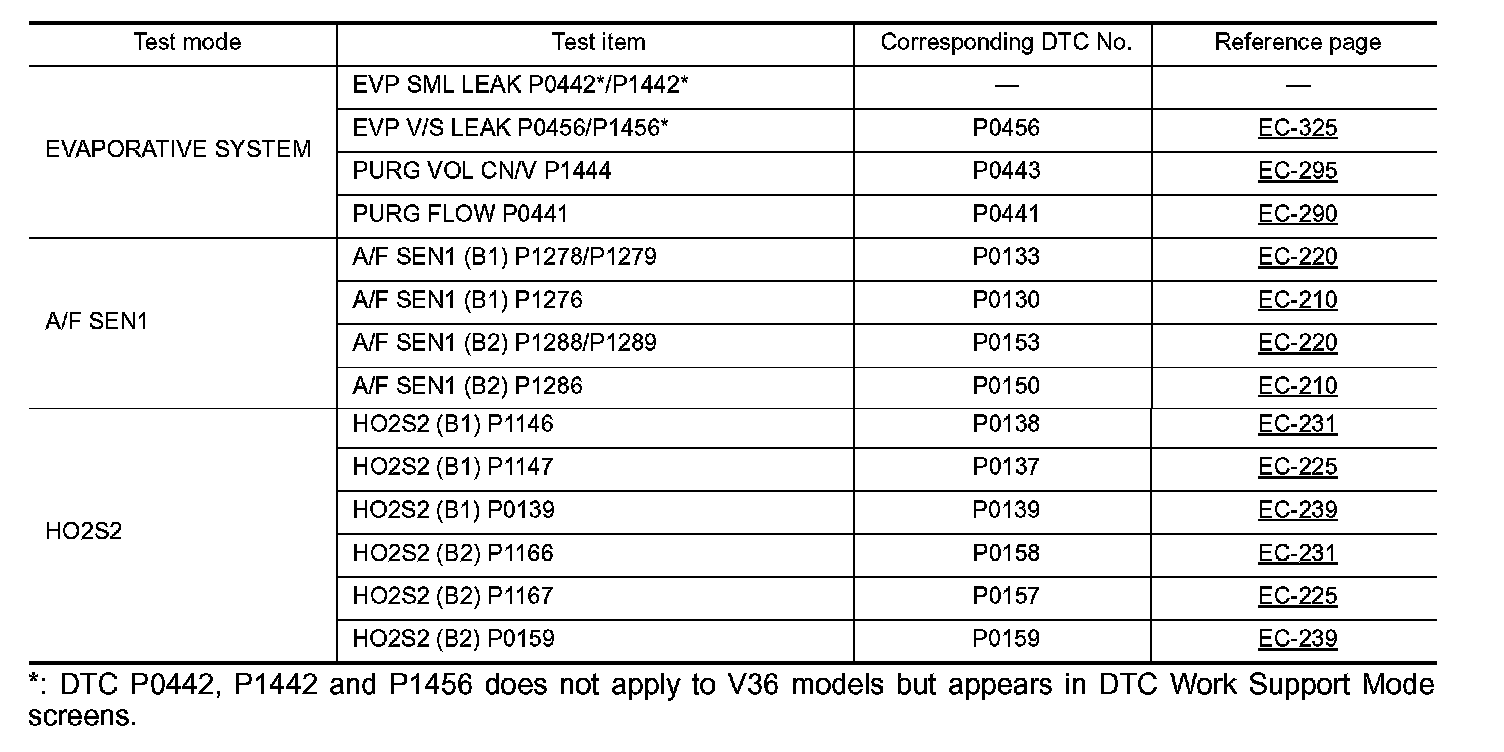

DTC WORK SUPPORT Mode
