System Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Block

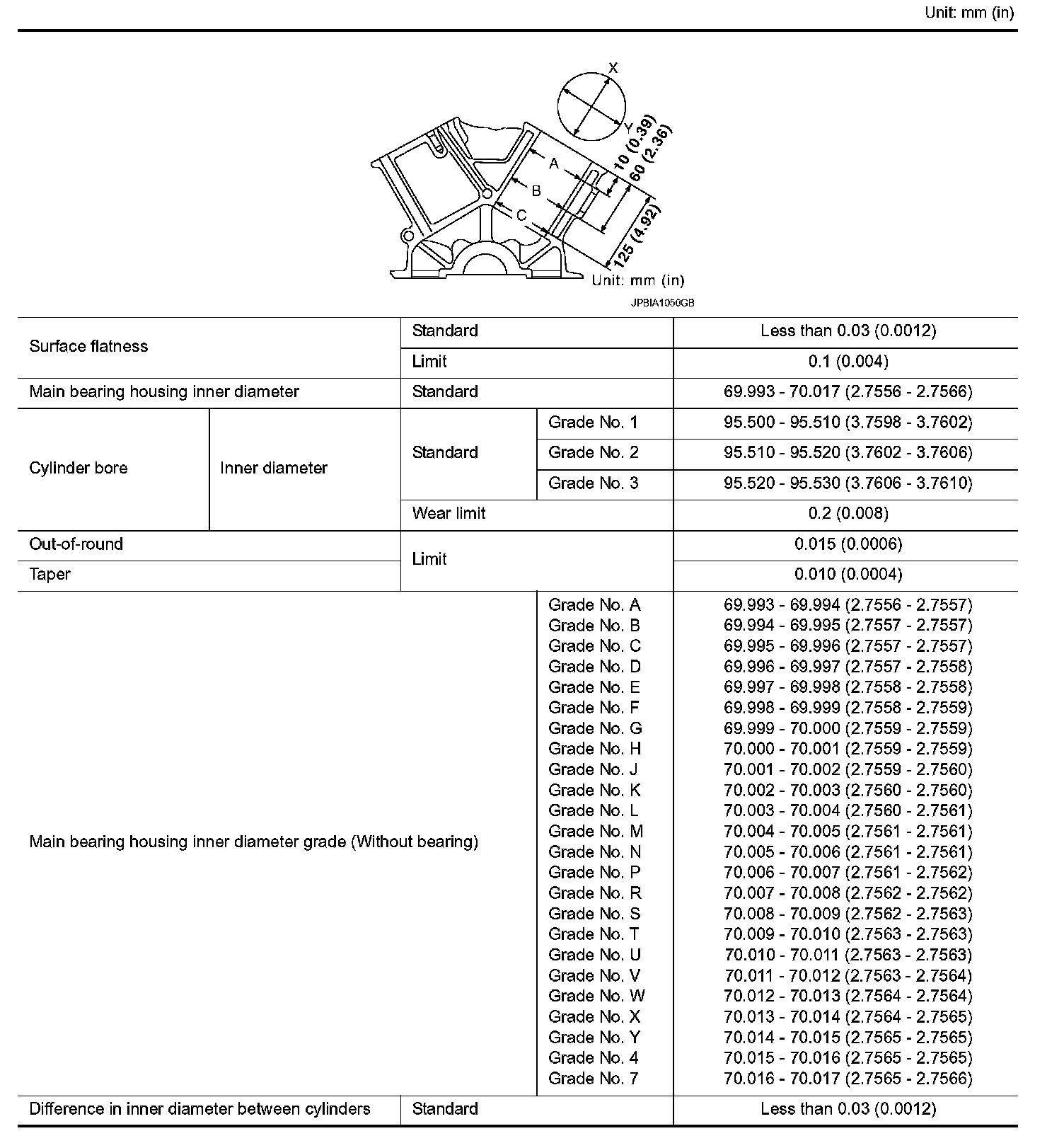

CYLINDER BLOCK






AVAILABLE PISTON






PISTON RING






PISTON PIN

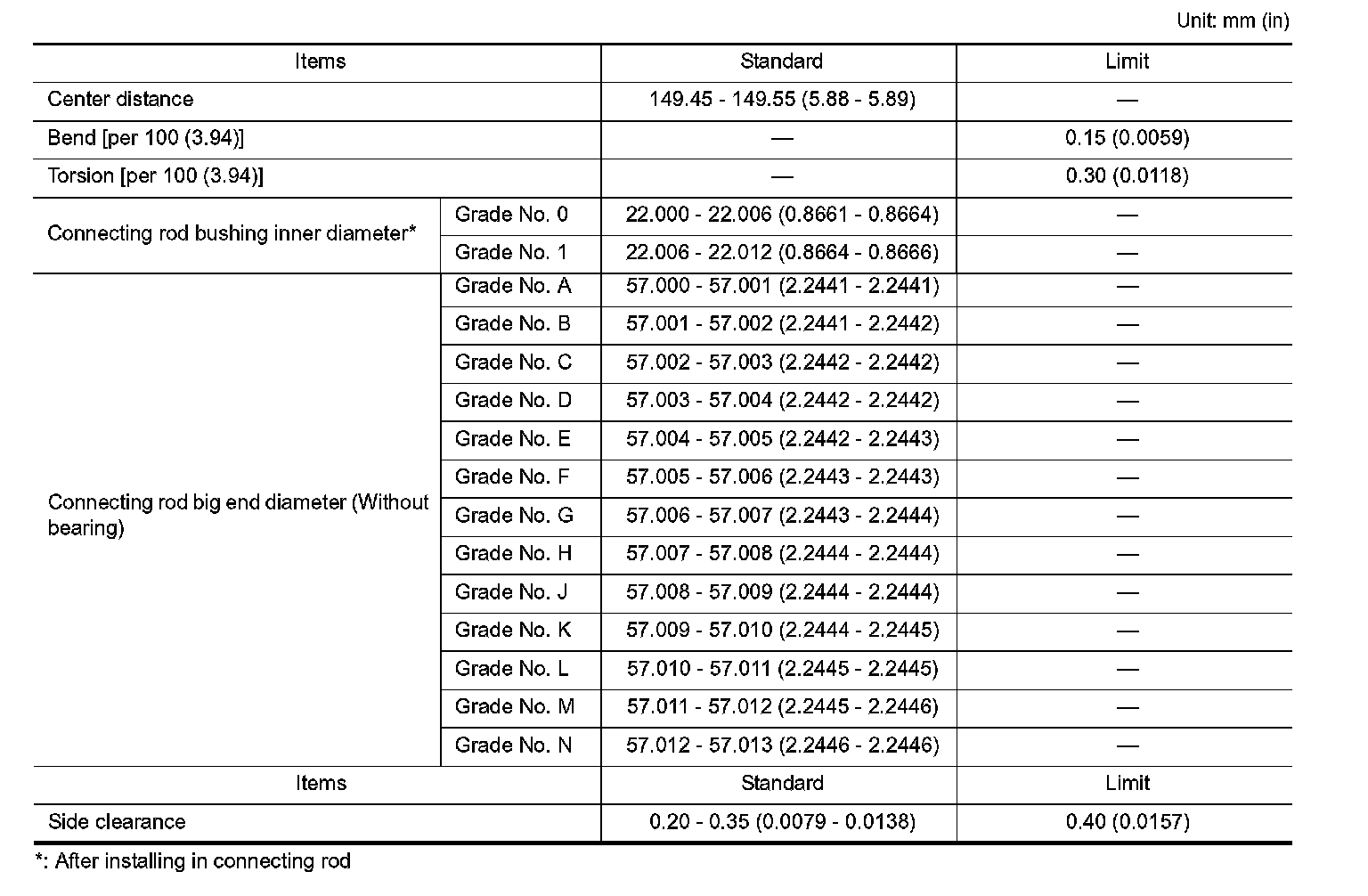

CONNECTING ROD

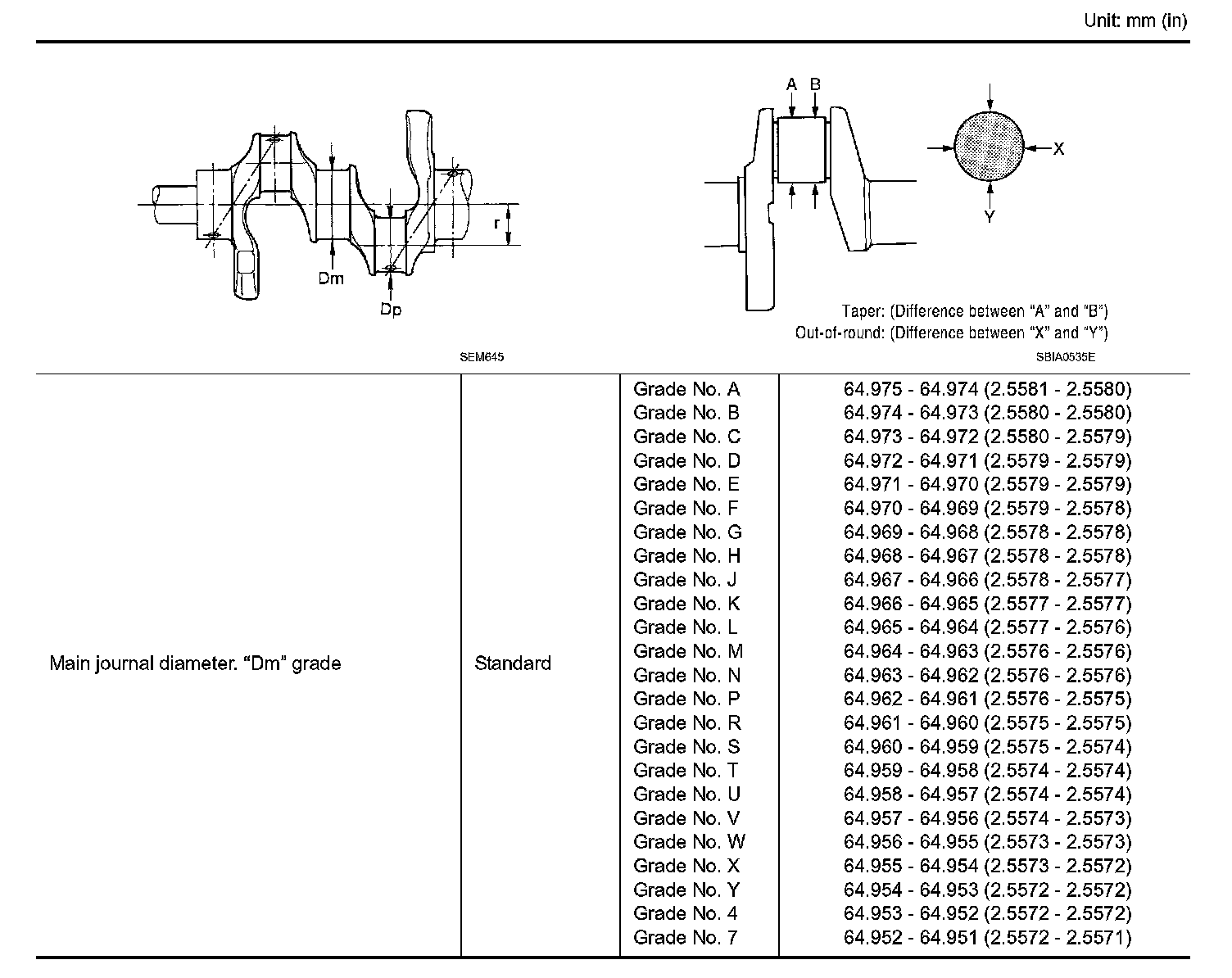

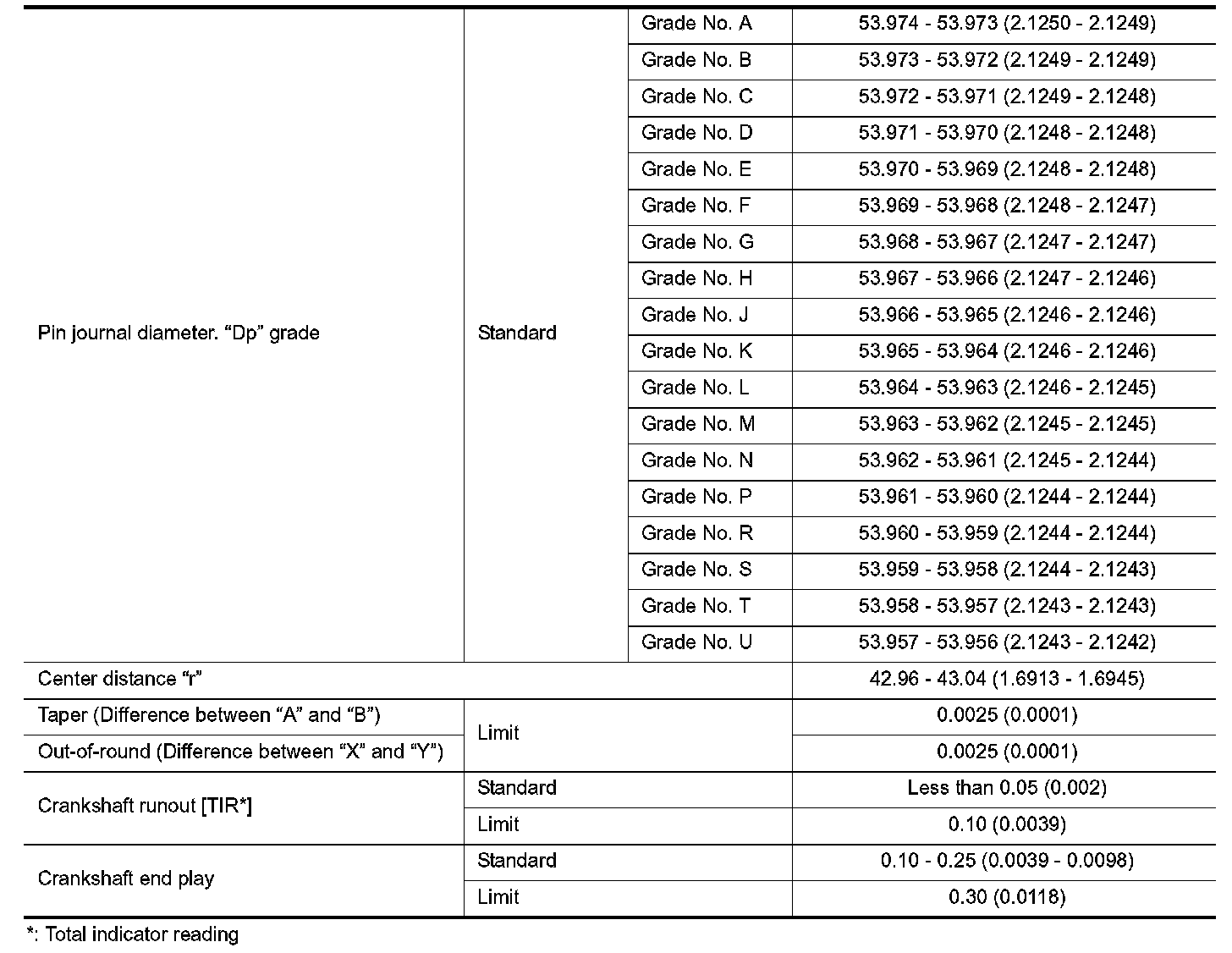

CRANKSHAFT









CONNECTING ROD BEARING





UNDERSIZE





CONNECTING ROD BEARING OIL CLEARANCE

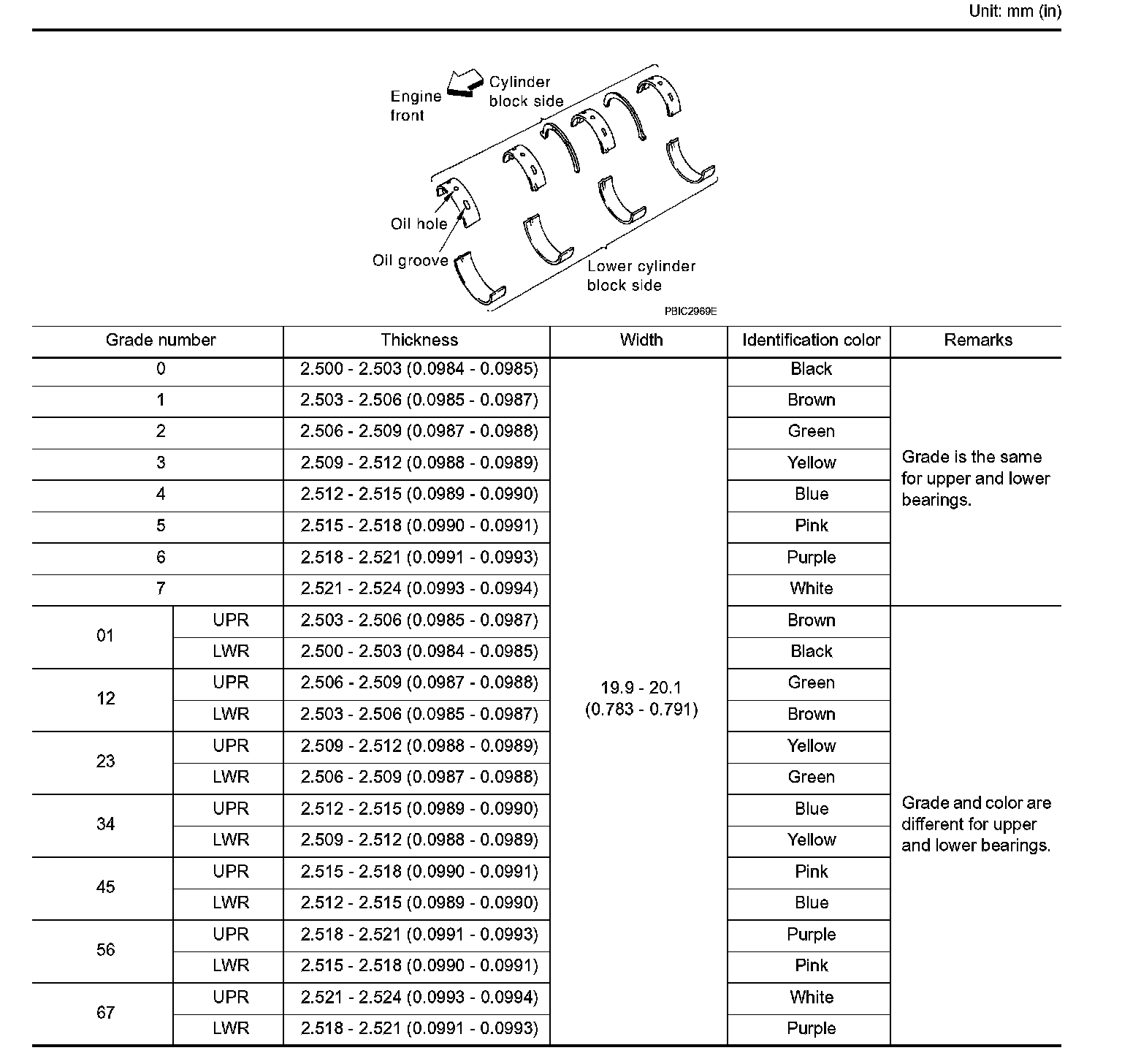

MAIN BEARING





UNDERSIZE





MAIN BEARING OIL CLEARANCE





MAIN BEARING CAP





No. 17 to 26 25.0 Nm (2.6 kg-m, 18 ft-lb)
Repeat step





No. 1 to 16
Step 1 35.3 Nm (3.6 kg-m, 26 ft-lb)
Step 2 90 degrees

CRANKSHAFT PULLEY

Step 1 44.1 Nm (4.5 kg-m, 33 ft-lb)
Step 2 90 degrees
