CONSULT-III Functions (Intelligent Key)

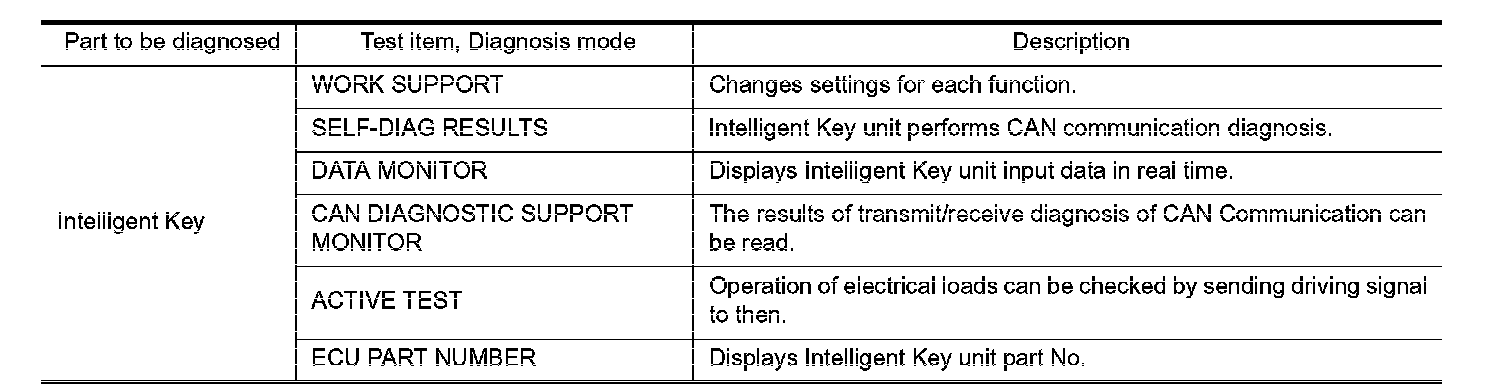

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTIONCONSULT-III Functions (INTELLIGENT KEY) CONSULT-III can display each diagnostic item using the diagnostic test modes as shown below.

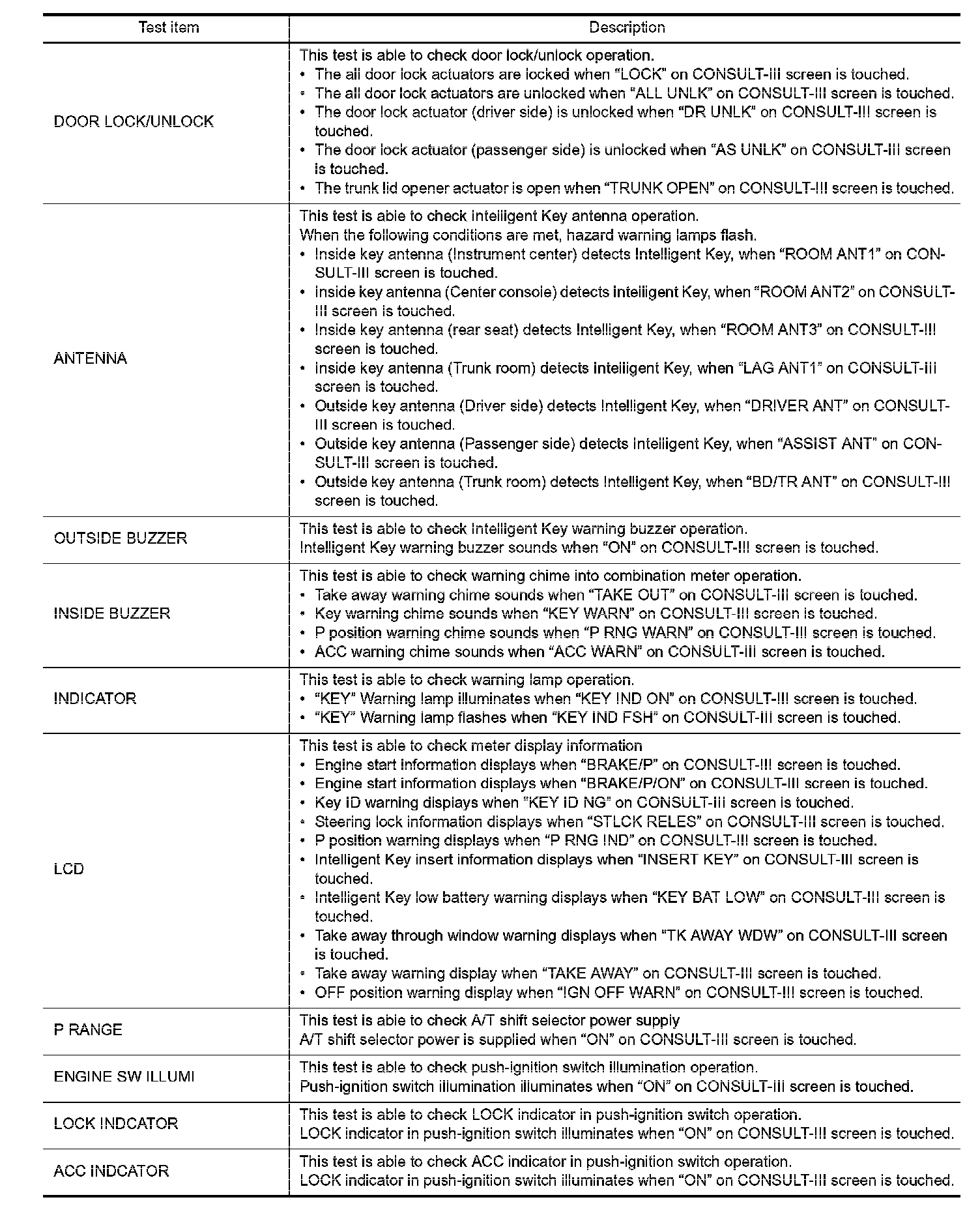

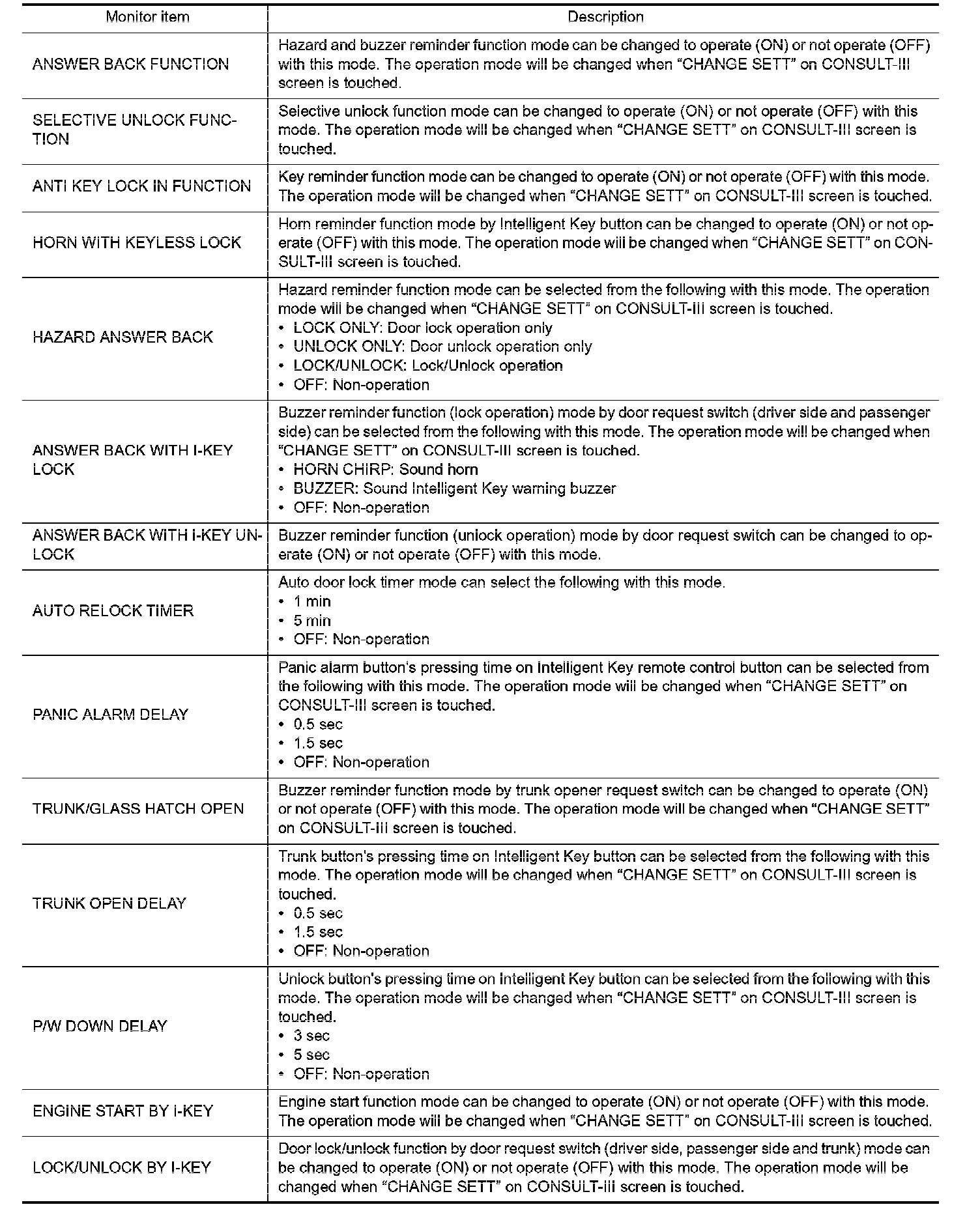

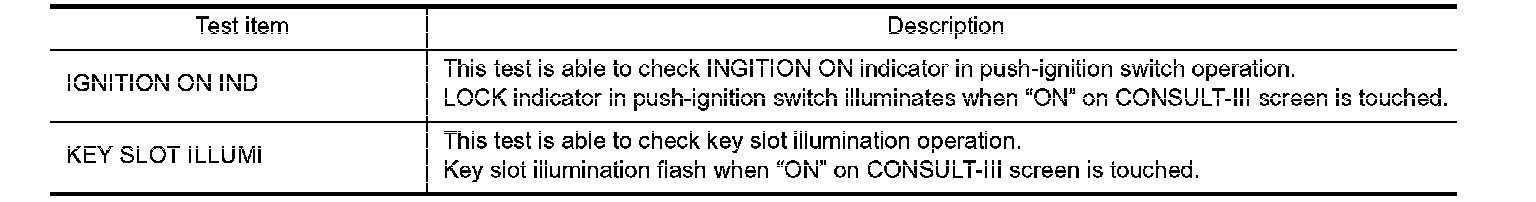

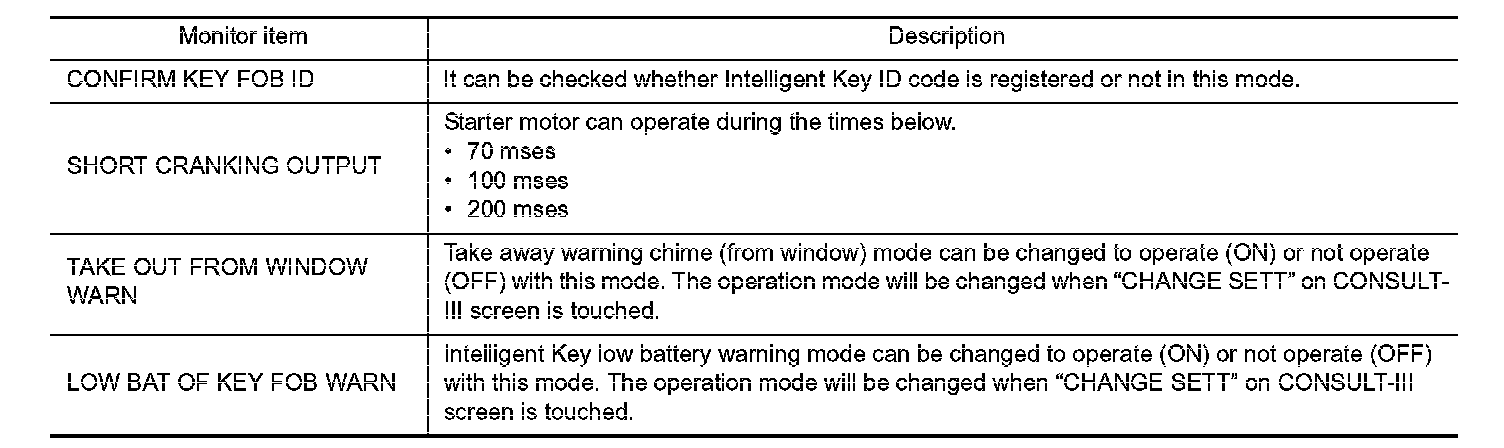

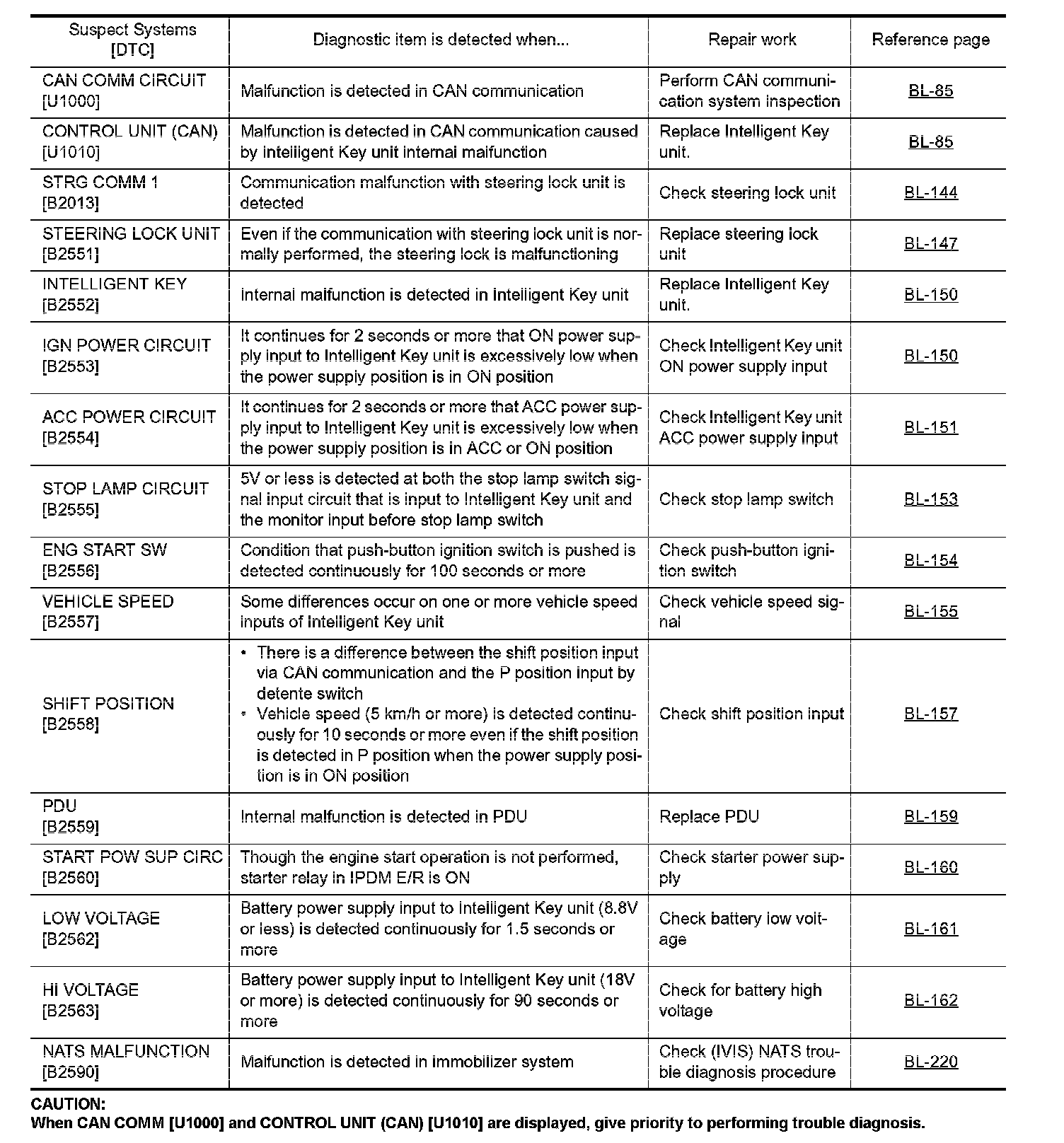

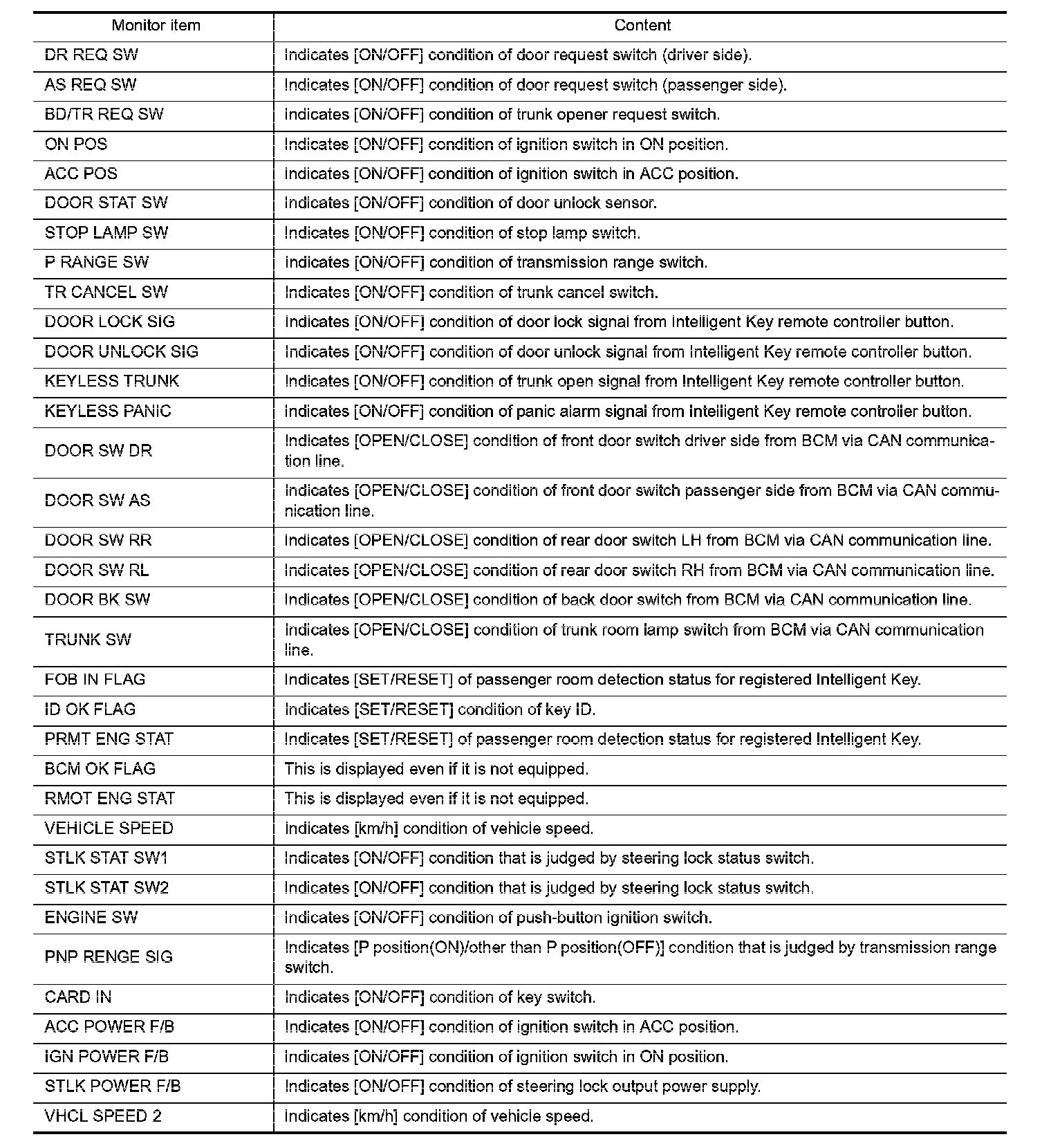

SELF-DIAGNOSTIC RESULTS DATA MONITOR WORK SUPPORT ACTIVE TEST
